TracNet H90 Installation Guide
Rig and Hoist the Antenna
Rig and Hoist the Antenna
Follow these steps to detach the antenna from the pallet
and safely rig the antenna for crane hoisting.
1. Using a 7/16" socket/ratchet or nut driver, unlock the
three hex latches securing the antenna’s service
hatches. Then gently lower the hatches. You can now
access the four shipping bolts securing the antenna’s
baseplate to the pallet.

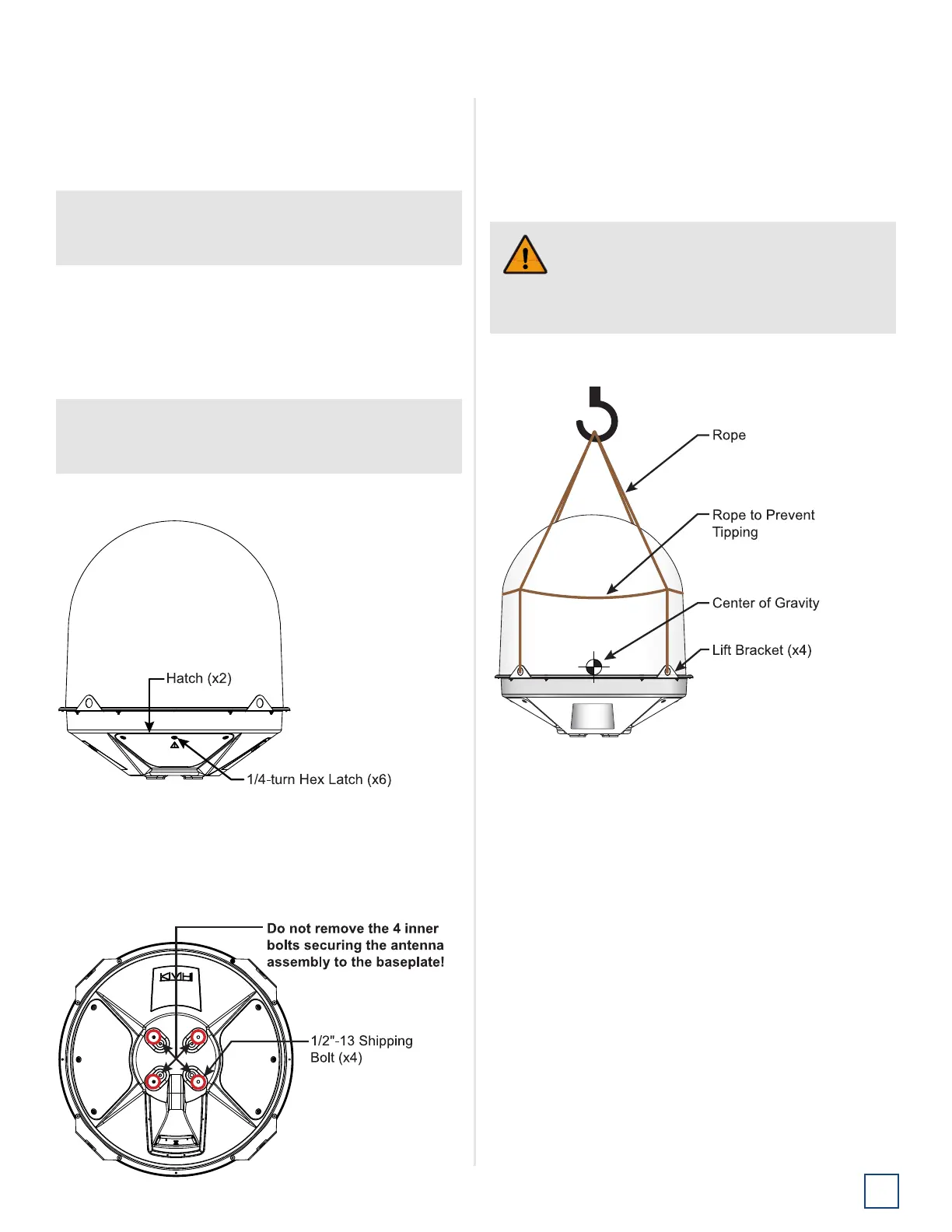

Figure 9: Service Hatch
2. Using a 3/4" socket/ratchet or wrench, remove the
four outer 1/2"-13 bolts securing the antenna to the
pallet. Do not remove the four inner bolts that secure
the internal antenna assembly to the baseplate.
Figure 10: Shipping Bolts (Antenna Bottom View)
3. Close both service hatches. Secure each hatch using
the hex latches.
4. Secure the crane rigging to the antenna’s four lift
brackets. Be sure the rigging and crane are suitably
rated to safely lift the 189 lbs (86 kg) antenna.
Figure 11: Crane Rigging (Example)
5. Carefully hoist the antenna to its mounting location.
IMPORTANT!
Take protective measures to avoid gouging or
scratching the radome during the rigging operation.
IMPORTANT!
Be careful not to damage the cellular and Wi-Fi
antennas while removing the shipping bolts.
WARNING
Be sure no personnel stand underneath the
antenna at any time while it is suspended in
the air.
