Turn On the System
Turn On the System
Follow these steps to turn on the system.
1. Ensure the antenna has a clear, unobstructed view of
the sky.
2. Apply vessel power to the TracNet system.
3. Press the power button on the front of the BDU. The
button’s light should illuminate blue.

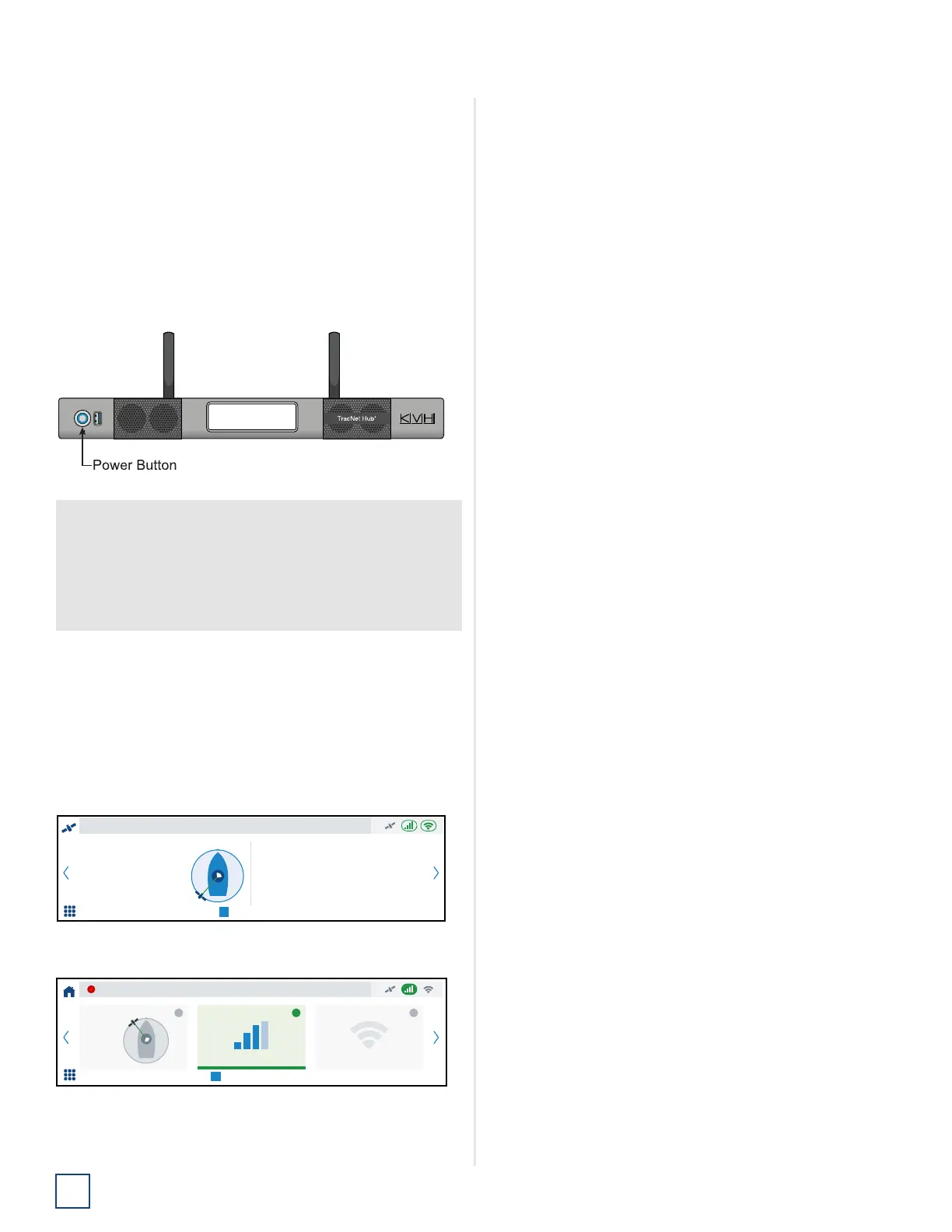

Figure 34: BDU Power Button
4. At the BDU’s front panel touchscreen, go to the VSAT
page (2) and monitor the antenna status. Within two
minutes, the antenna should complete initialization
and start searching for the satellite. Also make sure no
errors are reported in the header (see example in
Figure 36).
Figure 35: VSAT Status Page on Front Panel
Figure 36: Error Message on Front Panel (Example)
IMPORTANT!
During startup, the BDU checks the software version
installed in the antenna and updates it if necessary to
match its currently installed version. Do not turn off the
system for at least 15 minutes or while any updates are
in progress (indicated on the BDU’s front panel).
SATELLITE G11 @ 93.1W
BEAM KU: 2
SATS IN VIEW 6
RX / TX POWER -100.0 / 0.00 dBm
1 2 3456789
SNR -100.0dB
AZ / EL
HEADING
209º / 37º
231.42°T
ANTENNA Searching
VSAT
24112 Limit Switch Failure
2 of 3
1 2 3456 789
SHORE WI-FICELLVSAT
-100.0dB
OFFLINE
SNR
Vodaphone LTE
