TracNet H90 Installation Guide
12
Wire the Antenna
2. Fill half of the inner body of the cable’s N-type male
connector with the supplied silicone grease.
3. Connect and SLOWLY hand-tighten the cable to the
antenna’s connector, allowing the grease to diffuse
and settle into the entire space within the connector.
4. Make sure the cable connector is hand-tightened all
the way into the antenna’s connector.
5. Seal the cable connection with self-vulcanizing tape or
equivalent.

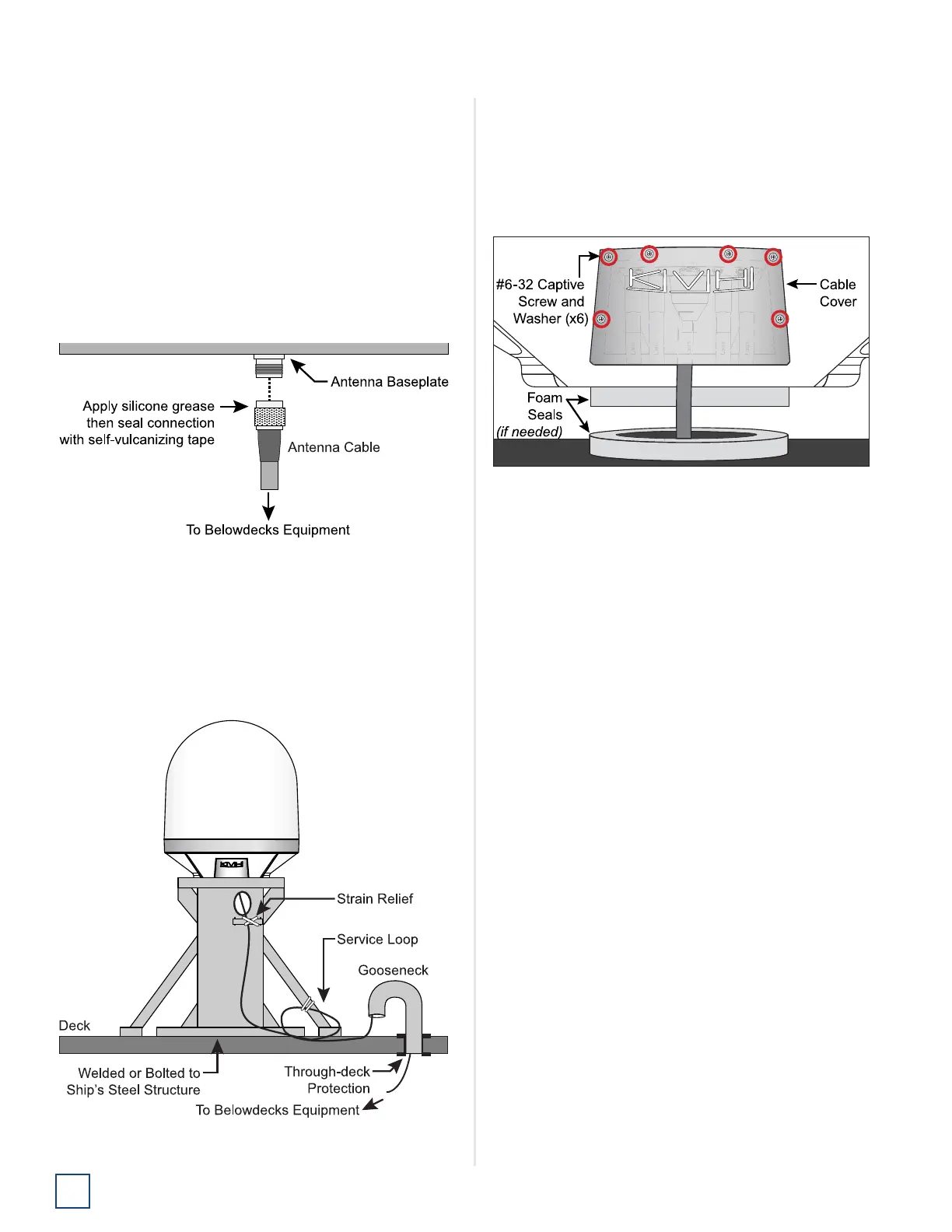

Figure 17: Connecting the Cable to the Antenna
6. Secure the antenna cable near the antenna to relieve
stress. The cable cover is designed for aesthetics only
– it does not provide any support for the cable.
7. Weatherproof and seal the cable access hole, as
required.
Figure 18: Strain-relief (Finished Installation Example)
Reattach the Cable Cover
Position the cable cover over the antenna’s cable
connector and secure in place with the six #6-32 captive
screws and washers.
Figure 19: Cable Cover
