The ICM includes four Ethernet ports and a built-
in wireless access point (WAP) that can be
configured in a variety of ways to meet the
customer’s needs (see Figure 62). Some of the
most common ICM network configurations can
be selected directly from the TracPhone V3-HTS
web interface. Follow these steps to select one of
these configurations. If the customer requires a
custom configuration, please contact KVH
Network Services at networkservices@kvh.com.
NOTE: The customer may also change the ICM’s
network configuration at the mini-VSAT Manager
(go to www.mykvh.com). To access the mini-VSAT
Manager, the customer will need to log in with the
username and password provided by KVH at the time
of activation.
a. At the TracPhone V3-HTS web interface, click
the Settings tab. Then click Network
Settings.
b. In Network Configuration, click Edit.
c. Select an option from the Configuration
drop-down menu. Then click Save (see
Figure 63 and Figure 64).
d. At the confirmation message, click Save.
e. Follow the additional instructions on the
following pages for your chosen
configuration.
Standard Configuration: Go to page 33
Static IP Configuration: Go to page 34
Access Control Configuration: Go to page 35

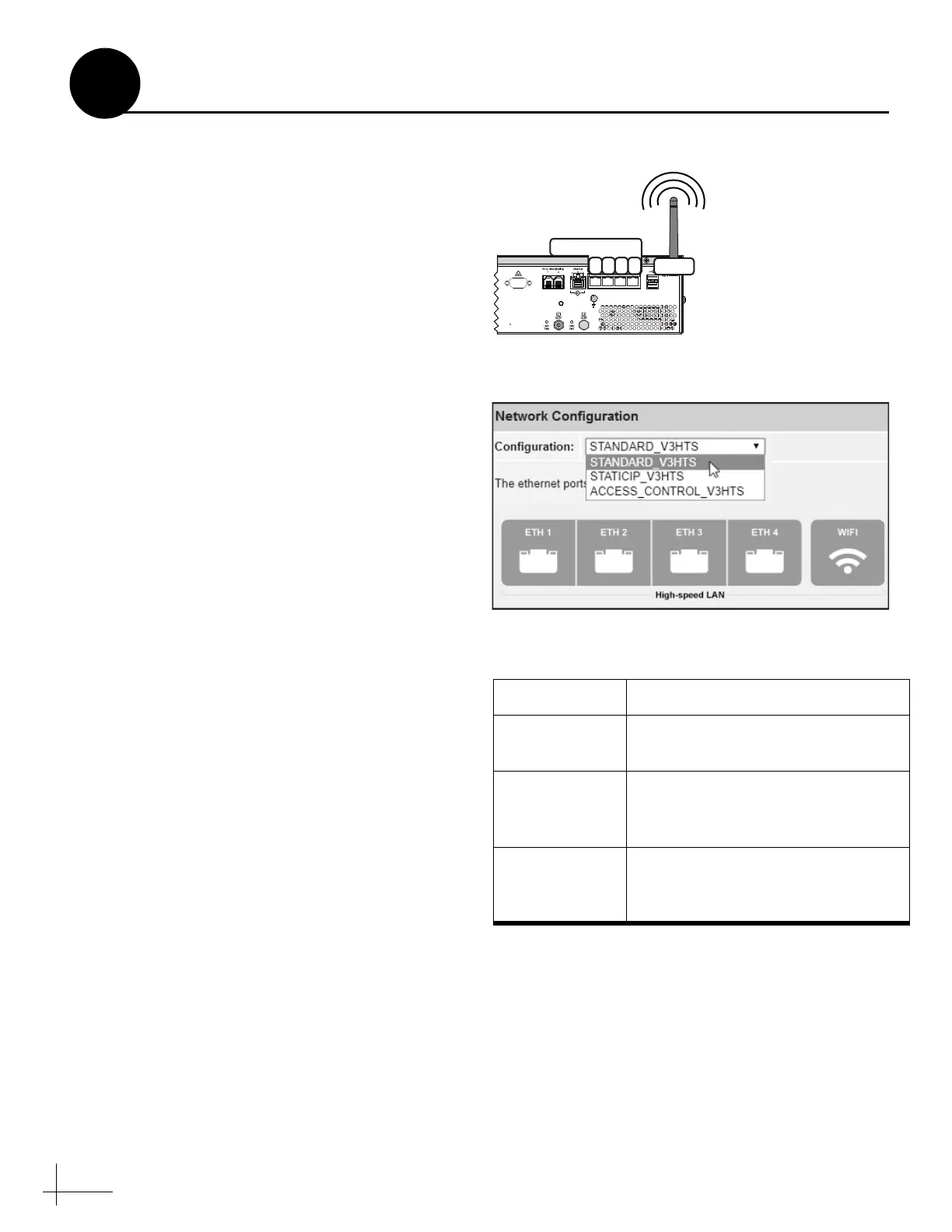

Figure 62: ICM Ethernet Ports and Wireless Access Point
User Ethernet
ICM
1 2
3 4
Wi-Fi
Figure 63: Selecting a Network Configuration
Figure 64: User Selectable Network Configurations
* Accessory LAN reserved for optional service, such as Global
Static IP, external MTA, or Crew Calling.
Option Description
Standard
Configuration
Ports 1-4, Wi-Fi: High-speed LAN
with unrestricted access
Static IP
Configuration
Ports 1-3, Wi-Fi: High-speed LAN
with unrestricted access
Port 4: Accessory LAN*
Access
Control
Configuration
Ports 1-3, Wi-Fi: High-speed LAN
with access control
Port 4: Accessory LAN*
