Before you begin, consider the following
installation guidelines for the ICM.
• Select a mounting location in a dry, well-
ventilated area belowdecks away from any
heat sources or salt spray.
• Temperature must be within the operating
range (-15ºC to 55ºC (5ºF to 131ºF)).
• Be sure the front panel will be easily
accessible to the user.
• Leave enough room at the rear panel to
accommodate the connecting cables.
• To use the supplied power/data cable, the
ICM must be located within 100 ft (30 m) of
the antenna. However, you can order a
1onger cable run if necessary.
• Be sure the location provides adequate Wi-Fi
reception. Do not install it in an area
surrounded by metal or near any electrical
devices that emit RF noise.

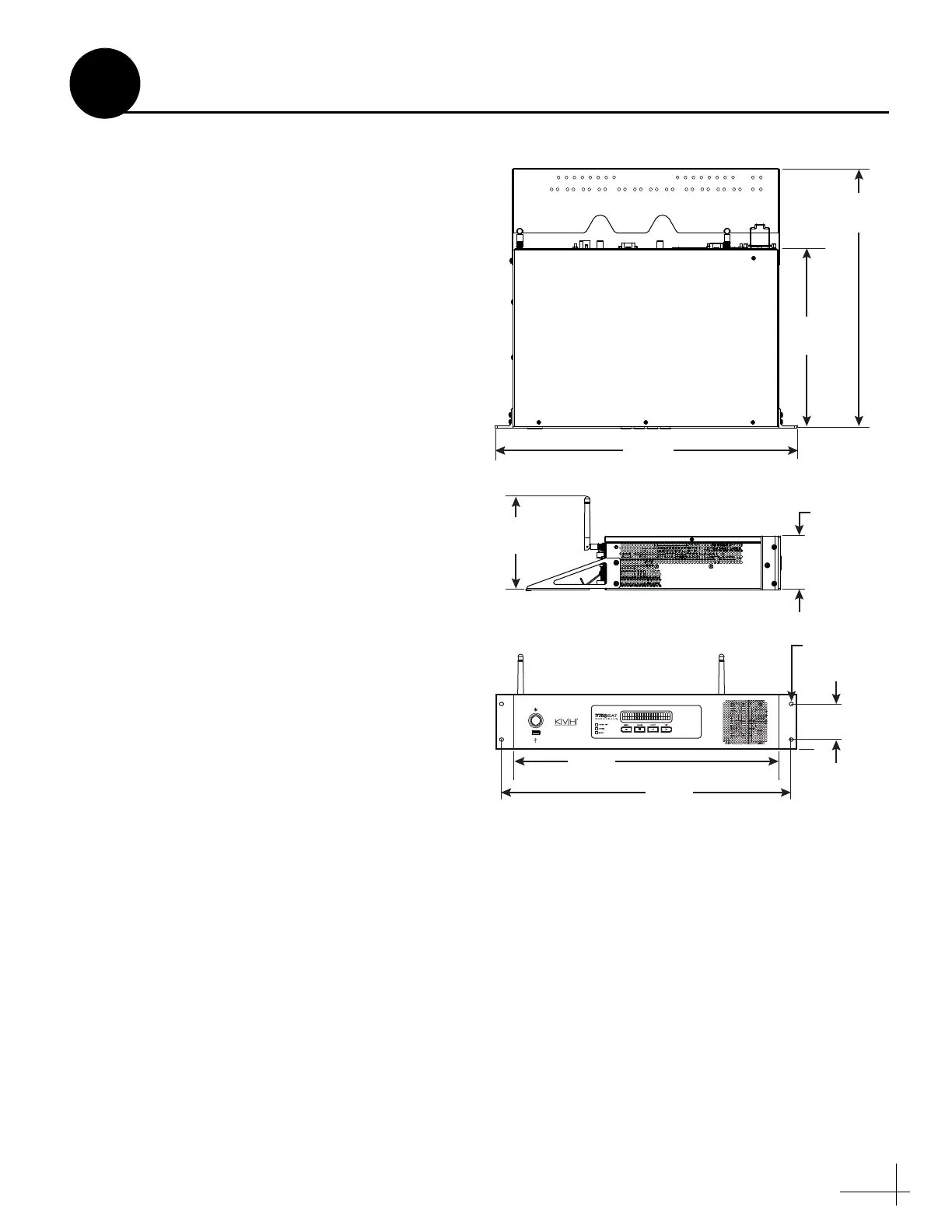

Side View
Front View
19.00"
(48.26 cm)
16.75"
(42.55 cm)
3.49"
(8.85 cm)
18.31"
(46.51 cm)
3.00"
(7.62 cm)
11.17"
(28.37 cm)
16.31"
(41.43 cm)
5.99"
(15.22 cm)
4 x ø.25"
(0.64 cm)
Strain-Relief Bracket
Top View
Plan the ICM Installation
3
To Next Page
