TracVision TV5 User’s Guide
30
Antenna Settings
Using the Optional NMEA Input
If a NMEA device is connected to the TV-Hub, the antenna can use its
GNSS position and heading data to speed up satellite acquisition.
(Refer to the Installation Guide for details on connecting the NMEA
device.) The current position and heading will also be displayed on the
Home page of the web interface.
If the antenna is equipped with a built-in GPS, it will use the NMEA
device as a backup source of position data. The Home page will
display position data from the built-in GPS unless it switches to the
NMEA backup.

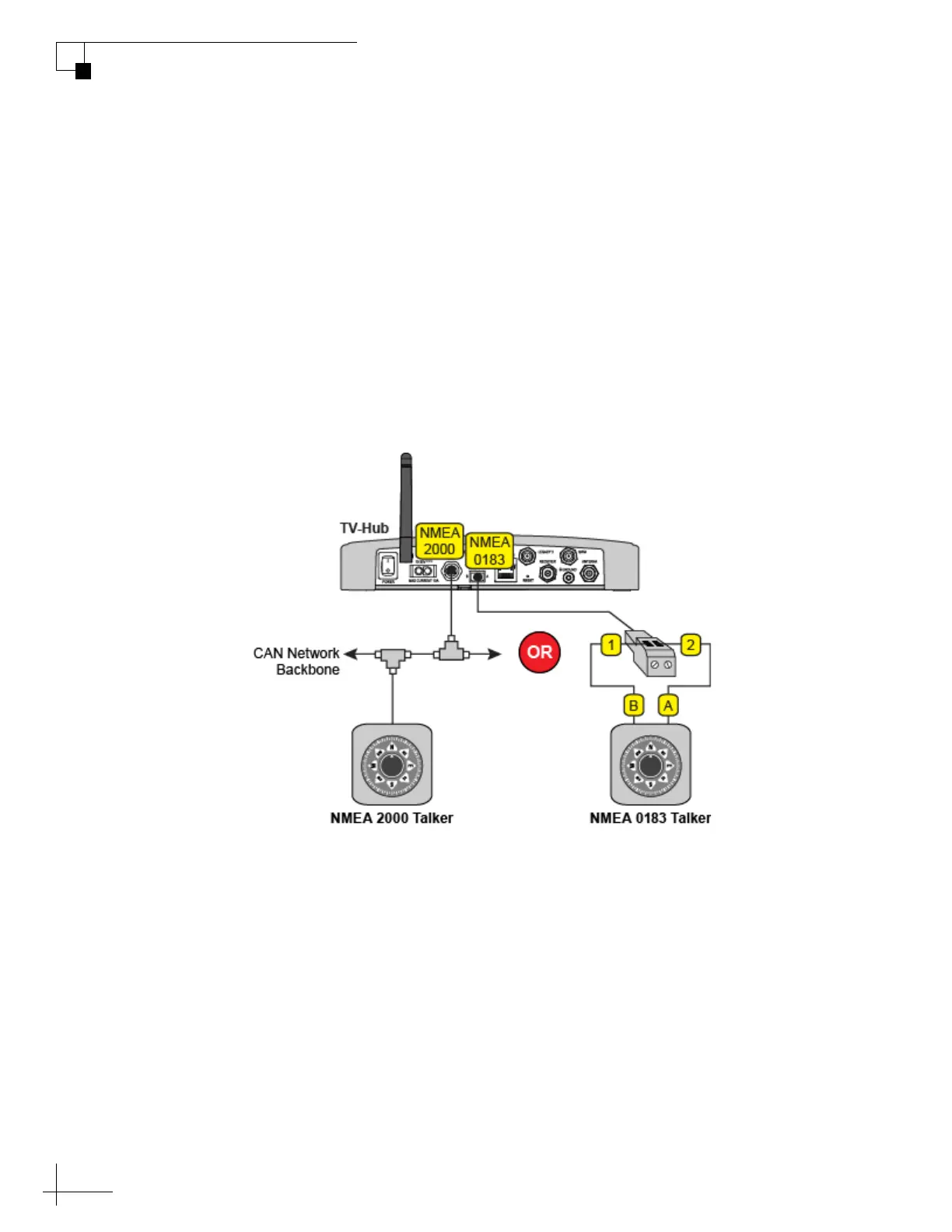

Figure 4-4 TV-Hub NMEA Connections (TV-Hub A shown)
NOTE: TV-Hubs built after August 2014 are equipped with the NMEA 2000
connector.
