2. Deadbolt Latch Installation (Piece B)1. Door Preparation
Replacement Installation
Remove all old lock
components.

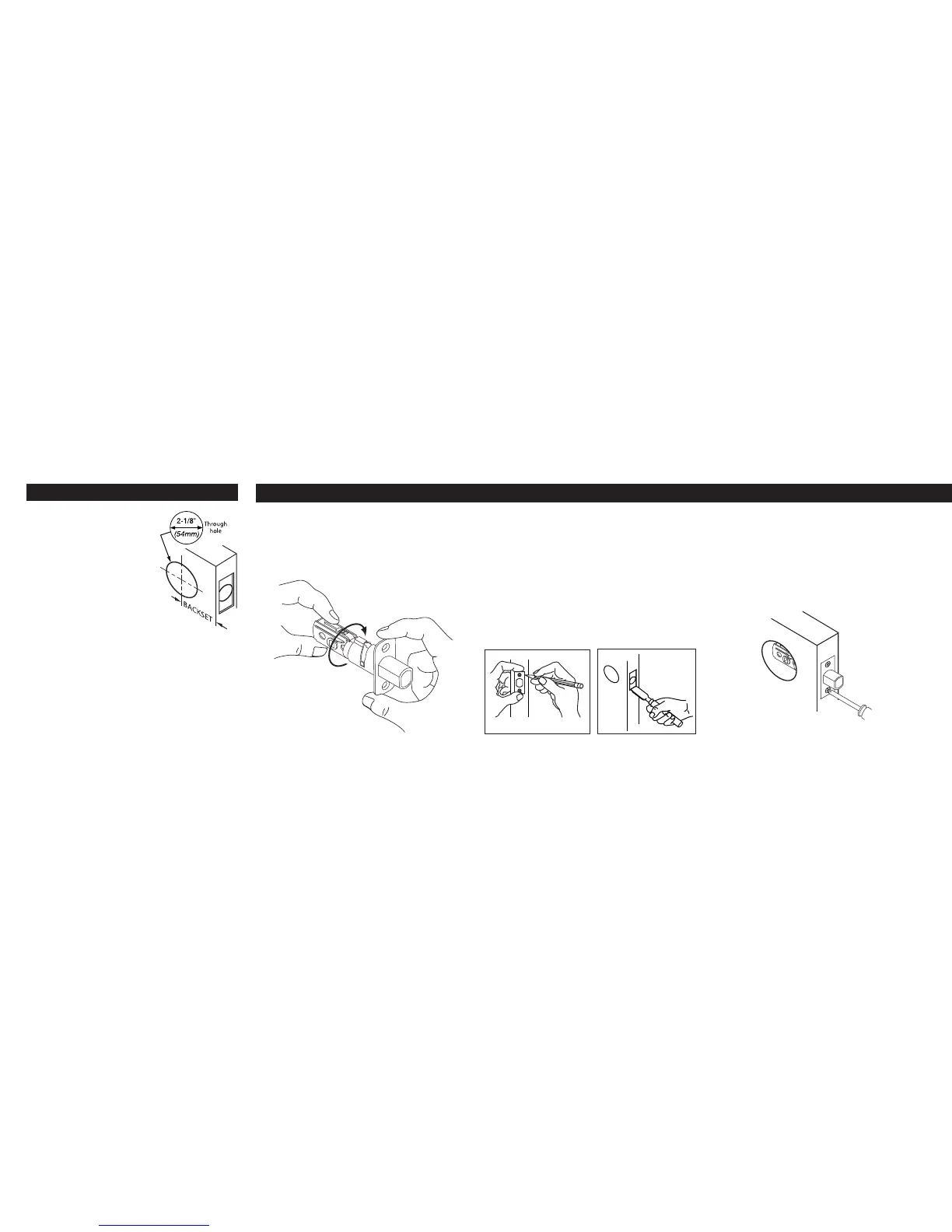

Use the enclosed template
to verify the following:
Deadbolt face hole needs to
be 2-1/8” (54mm) diameter.
Backset – Distance from
edge of door to center of
lock (2-3/8 or 2-3/4”).
Location to drill the small starter holes for
inside and outside trims.
Make any necessary modifications.
First-time Installation
Follow instructions on enclosed template.
Preparation for latch with Face Plate
Keeping edges parallel to the face of the door,
outline face plate and remove deadbolt latch
(see illustration below left).
Chisel outline of face plate until it is flush with
door edge, 5/32” (4mm) deep (see illustration
below right).
With bolt extended, insert deadbolt latch in
edge hole. Be sure to keep the word "UP" at
top. Secure with two 5/8” wood screws.
Install Latch
1
2
1
1
2
•
•
•
•
2
For latch with face plate:
To Adjust Backset:
Rotate to a 2-3/4” (70mm)
position, if required.
