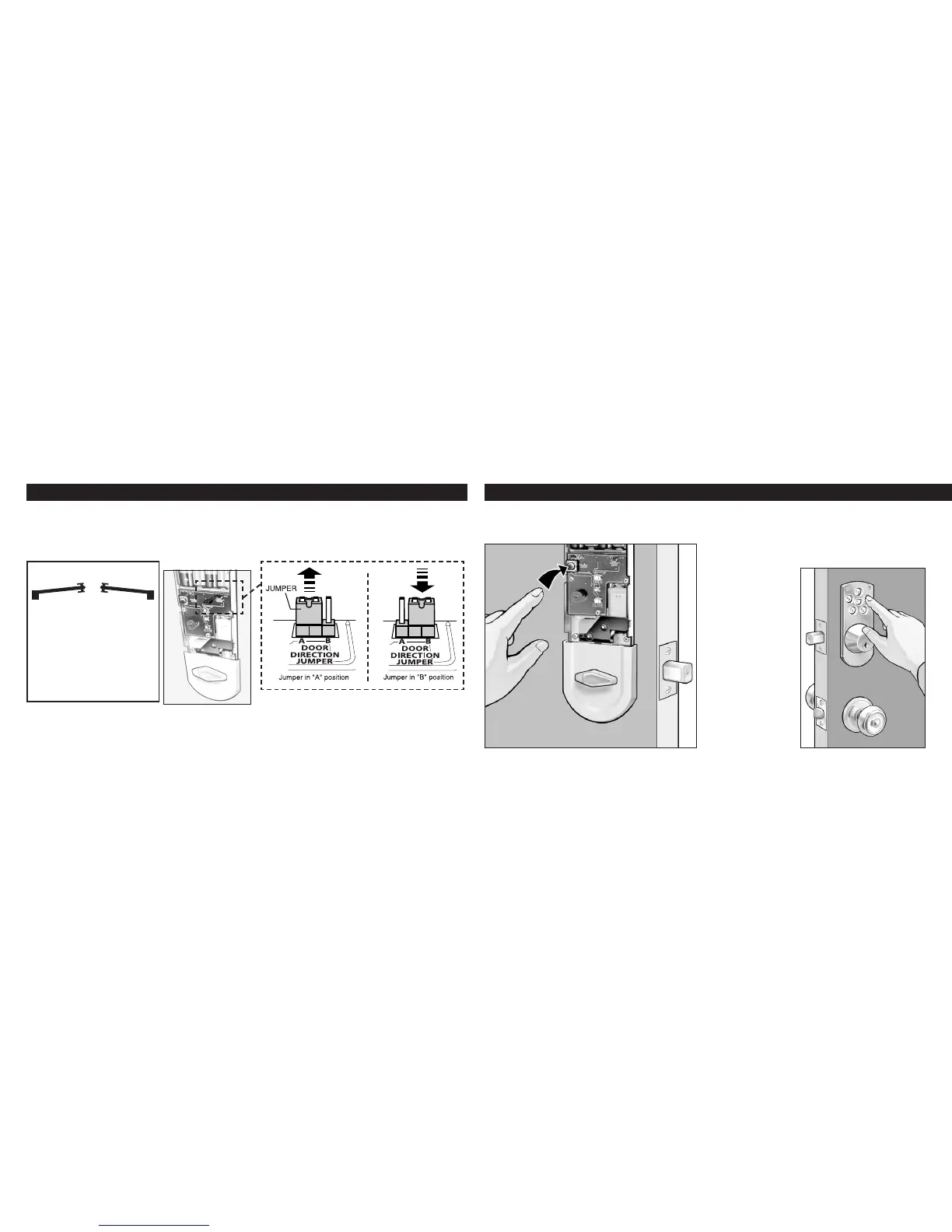

4. Touchpad Electronic Deadbolt Installation 5. Programming Instructions
Push program button on Power Board H once. 1
6
2
3
Retract deadbolt latch B with T-turn. Press the lock button on Touchpad A. If motor runs but
latch does not extend: Door handing needs to be changed. To change door handing, remove
jumper (located in the upper right corner of the circuit board) from position "A" and plug it into
position "B". See illustrations.
9
Verify key works in deadbolt E.
Note: When manually locking or unlocking the deadbolt by turning the key or the T-turn:
The motion will be rm — this resistance is normal.
Enter desired 4 to 8 digit code by pressing
numbers on outer Touchpad A. Press the
Lock button on Touchpad to set your code.
You will hear a 2-second long beep when your
code is accepted.
If unit does not
beep — too much
time has elapsed
between steps
1 and 2. Repeat
steps 1 and 2
faster.
10
From Exterior:
If hinge is on the left, you
have a left hand door.
If hinge on the right, you
have a right hand door.
Exterior
Right hand
Door
Left hand
Door
•
•
To Next Page
