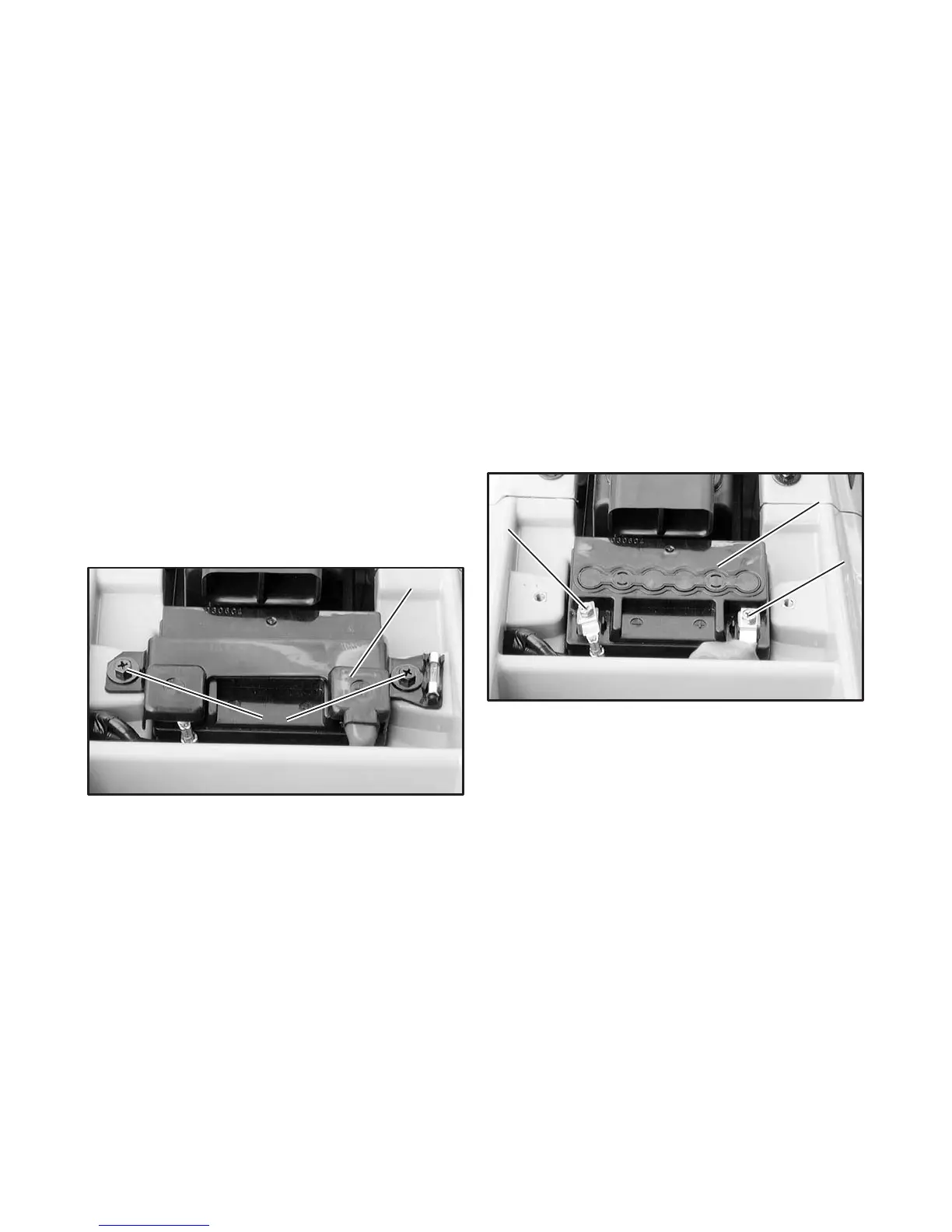

(1) Battery cover (2) Mount bolt
Battery remove
1. Make sure the ignition switch is OFF.
2. Remove the seat (page 32)
3. Remove the battery cover, by removing the mount
bolts.
4. Disconnect the negative (-) terminal lead from the
battery first, then disconnect the positive (+)
terminal lead.
5. Remove the battery.
(1)
(2)
Battery installation
1. Install in the reverse order of removal.
2. Check all bolts and other fasteners are secure.
3. After installing the battery, check to see if the
battery cables are routed correctly.
(1)
(2)
(3)
(1) Battery
(2) Positive (+) terminal lead
(3) Negative (-) terminal lead
