Always check to be sure that the
brake lever lock has been disen-
gaged before operating the ATV. An
accident could result if the brake
lever lock is left engaged while the
ATV is operated. The brake may
relax if left engaged for a long
period of time. This could cause an
accident; therefore, do not leave
the ATV on a hill depending on the
brake lever lock. Always block the
downhill side of the wheels if leav-
ing the ATV on a hill or park the
ATV in a sidehill position.
Headlight HI/LO Switch
Do not attempt to either engage or dise-
ngage the front differential while the ATV
is moving.

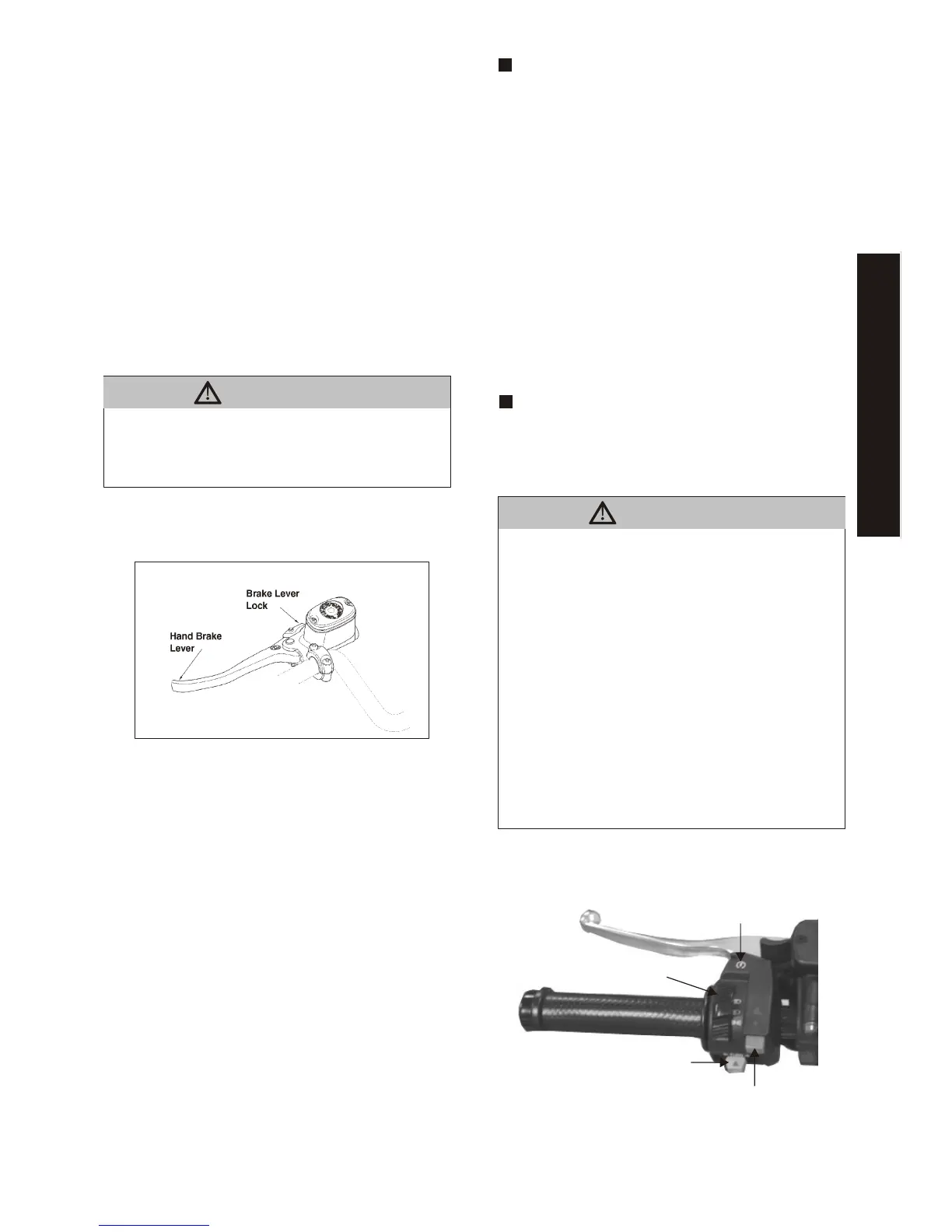

Hand Brake Lever/
Brake Lever Lock
1.Squeeze the hand brake lever two
or three times and release it.
2.Depress and hold the brake lever
lock.
3.While holding in on the brake lever
lock, squeeze the brake lever.
57
CAUTION
The 2WD/4WD selector switch allows
the operator to operate the ATV in
either two-wheel drive (rear wheels) or
four-wheel drive (all wheels). For nor-
mal riding on flat, dry, hard surfaces,
two-wheel drive should be sufficient.
In situations of aggressive trail condi-
tions, four-wheel drive would be the
To either engage or disengage the front
wheels, move the switch to the 4WD
position or to the 2WD position.
desired choice.
Apply the brake by compressing the brake
lever toward the handlebar.
To engage and release the brake lever
lock, use the following procedure.
The hand brake is considered to be the
normal operating (main) brake. It
should be applied whenever a braking
situation is needed.
738-420B
CF245A
NOTE: It will click as it engages
and the brake lever will not return
to its released position.
Check to make sure the brake lever
lock engages properly and that the
brake (when engaged) locks the
wheels.
Release the brake lever lock by
squeezing the brake lever. It will
return to its released position.
4.
1.Pump the brake lever 2 or 3 times.
2.Engage the brake lever lock.
3.Attempt to push the ATV.
CAUTION
GENERAL INFORMATION
NOTE: The brake lever lock must
lock the wheels. If it doesn’t, take
the ATV to an authorized KYMCO
ATV dealer for service.
Starter Button
Headlight HI/LO Switch
Emergency Stop Switch
Turn Signal Switch
