8.8. AIR FILTER CLEANING
The air cleaner accumulates dust and must be cleaned
periodically. If the ATV is ridden in dusty areas, the air cleaner
must be cleaned at more frequent intervals than specified in the
Maintenance Schedule. If the ATV is submerged in water, the
air cleaner should be checked and water should be drained
from the air cleaner housing before starting the engine. To
clean the air cleaner:
1. Remove the seat.
2. Unlatch the six retainer clips (1) and remove the air cleaner
housing cover (2).
3. Loosen the fixed ring, and then remove the air cleaner
element (3).

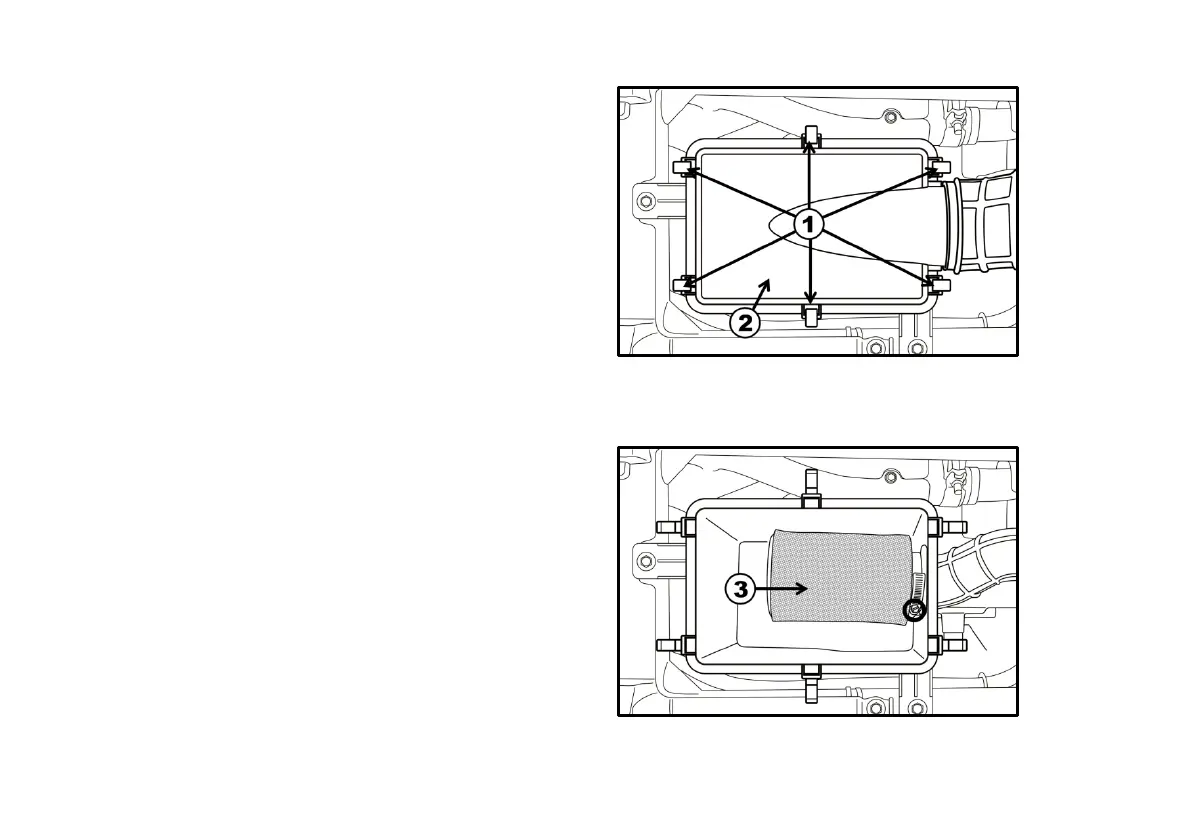

(1) Retainer clips
(2) Air cleaner housing cover
(3) Air cleaner element
