Kyocera DF-770 - Staple Unit Removal and Replacement

3NC/3NB/3NK
1-5-5
(3) Detaching and refitting the Staple unit
Procedure

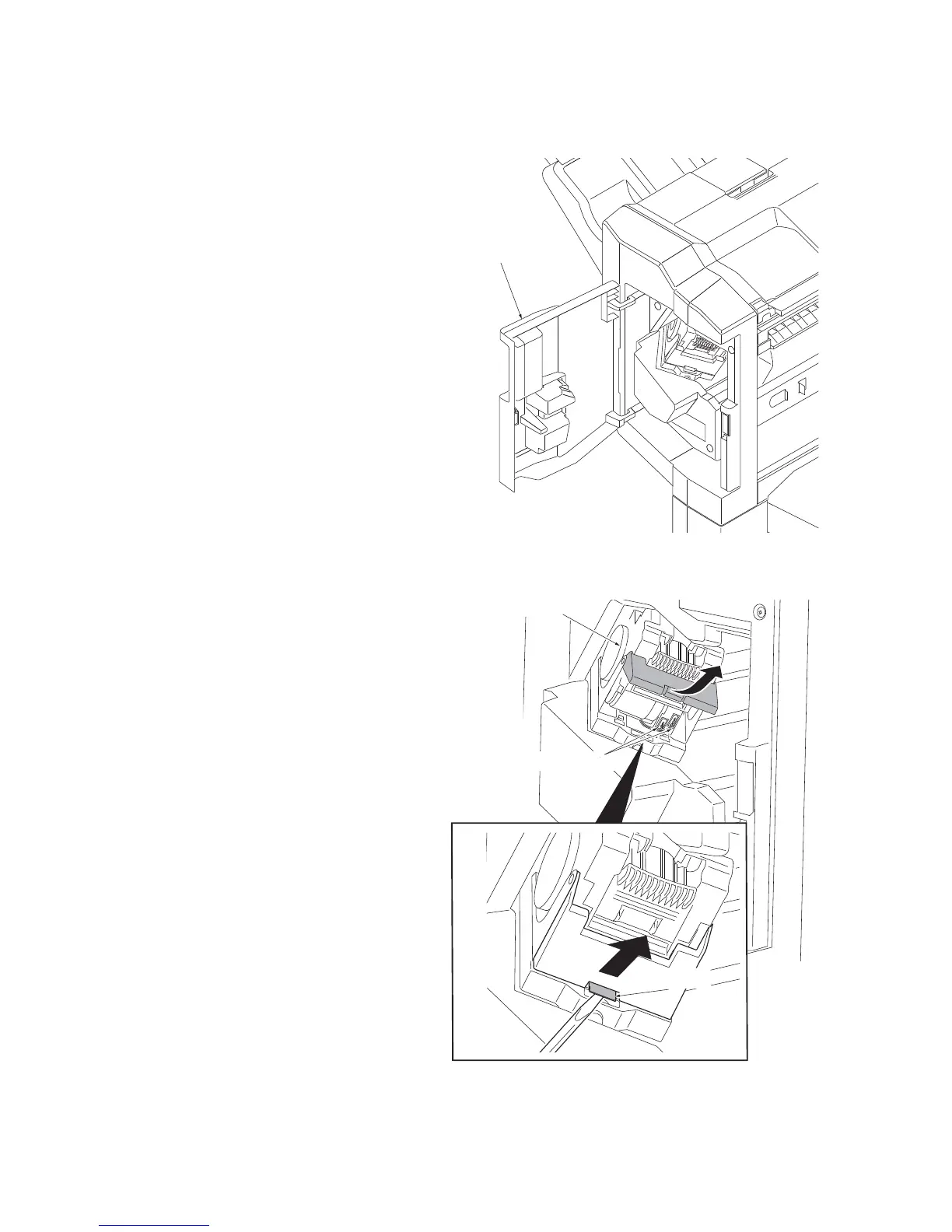

1. Open the DF front cover.
Figure 1-5-5
2. Insert a flat screwdriver under the lever
of the staple cover. Lift the lever
upwards to open.
3. Remove two connectors.
Figure 1-5-6
DF front cover
Connectors
Staple cover
Lever
