2-1-3 Eject tray section
The eject tray section consists of the parts shown in figure below and stocks paper discharged from the pro-
cessing section.
The upper limit position ,the middle position and the lower limit position of the eject tray are detected with the
DF tray sensor 1,2,3(DFTS1,2,3) . Also the paper stock quantity is detected with the DF tray surface sensor 1/
2 (DFTUSS1/2).
.

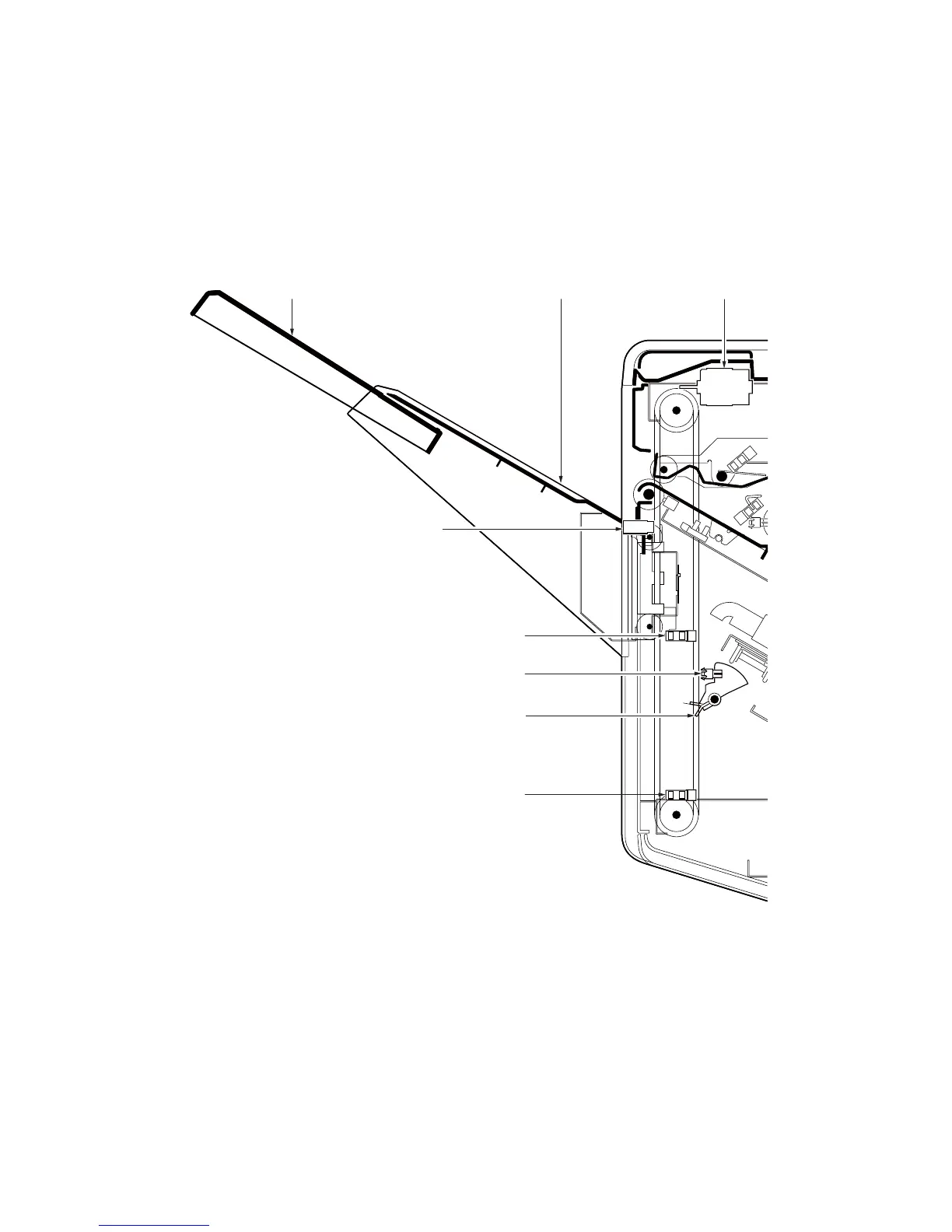

Figure 2-1-6 Eject tray section
4
3
5
98
6
7
1,2
1. DF tray surface sensor 1 (DFTUSS1)
2. DF tray surface sensor 2 (DFTUSS2)
3. DF tray sensor1(DFTS1)
4. DF tray sensor2(DFTS2)
5. DF tray sensor3(DFTS3)
6. Actuator(DF tray sensor2)
7. DF tray motor(DFTM)
8. DF Main tray(Tray A)
9. DF tray extension
