Kyocera ECOSYS FS-C8525MFP Technical Reference Manual

Chapter 7 Emulation
7-98
Plot Coordinates (bit 0)
This bit defines one of two plotting coordinate modes. (See Figure 7. 29. on page 98.)
0 = Mode A
1 = Mode B
In mode A, the origin (0, 0) starts at bottom left. In mode B, the origin starts at the center
of the page.
Response to SP Instruction (bit 1)
This bit defines the printing system response to the SP (Select Pen) instruction.
0 = Printing System feeds out a page when it receives a SP; or SP 0; instruction.
1 = Printing System returns the pen to the stall from which it came, in other words, it
prints nothing when it receives a SP; or SP 0; instruction.

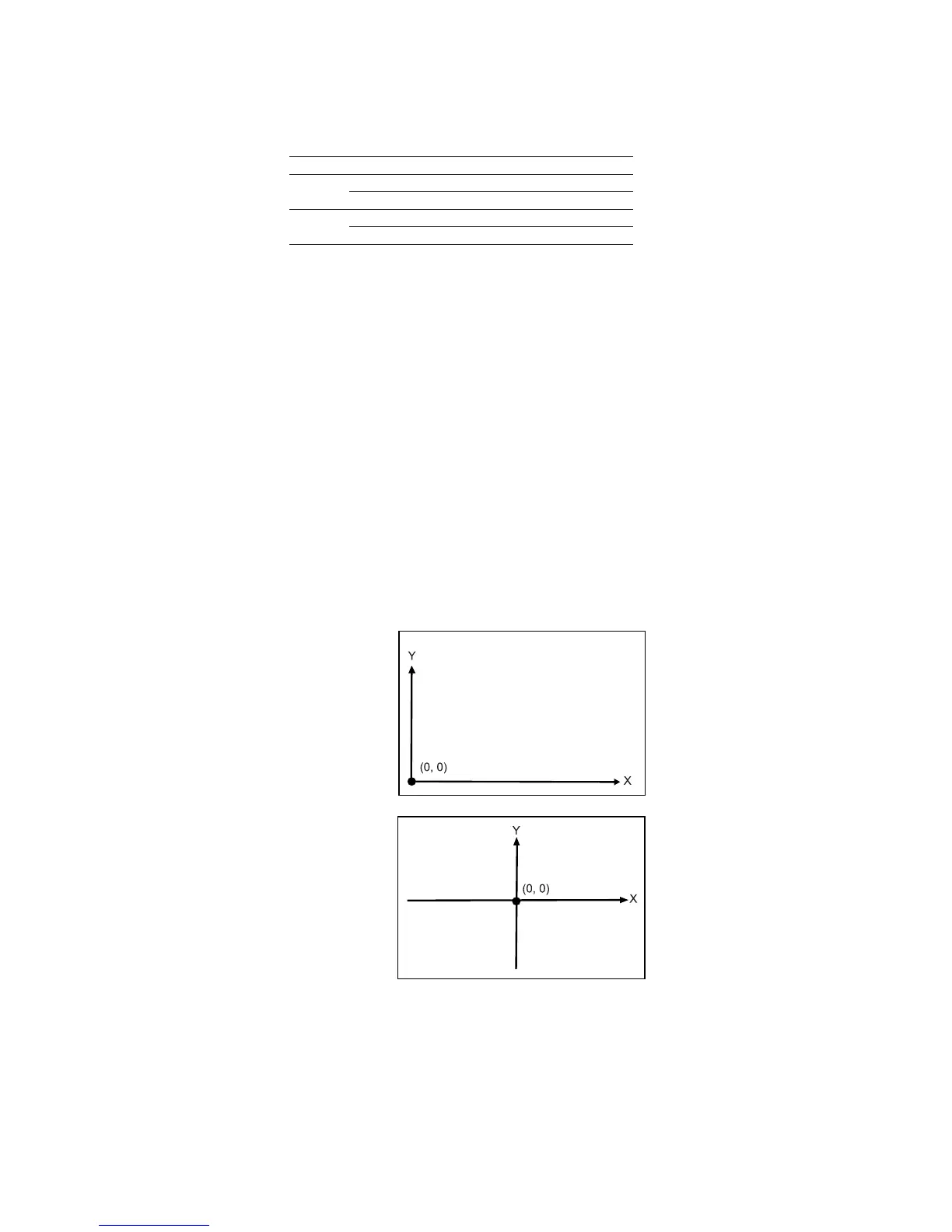

Figure 7. 29. Plot Coordinates
Automatic Plot Coordinate Mode (bit 2)
0 = Printing System changes the plot coordinate from mode A to mode B when it
receives a IP (Input P1 and P2) instruction using the negative parameter value.
When the IN
(INitialize) instruction is later given, the printing system reverts to mode A.
4 0 0 Landscape page orientation
16 1 Page orientation to FRPO C1
5 0 0 Default cursor at top left
32 1 Default cursor at bottom left
Table 7.28. FRPO G0 Command Options
Bit Position Bit Value Logic Value Description
Mode A (G0, 0;)
Mode B (G0, 1;)

Kyocera ECOSYS FS-C8525MFP Specifications

General

Category	Printer
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Duplex Printing	Yes
Standard Paper Capacity	500 sheets
Supported Paper Sizes	A4, A5, A6, B5, Letter, Legal
Memory	1 GB
Memory (Maximum)	2 GB
Connectivity	USB 2.0, Ethernet
Print Speed	25 ppm
Print Resolution	600 x 600 dpi
Copy Speed	25 copies per minute
Fax Resolution	400 x 400 dpi
Max Paper Capacity	1, 600 sheets
Operating Systems Supported	Windows, Mac, Linux
Type	Multifunction
