Kyocera ECOSYS M3660idn User Manual

10-31
Troubleshooting > Troubleshooting
Clearing Paper Jams
If a paper jam occurs, the touch panel will display "Paper Jam." and the machine will stop. Refer to these procedures to
remove the jammed paper.
Jam Location Indicators
If a paper jam occurs, the location of the jam will be displayed on the touch panel as well as the clearing instructions.
After you remove the jam, the machine will warm up again and the error message will be cleared. The machine resumes
with the page that was printing when the jam occurred.

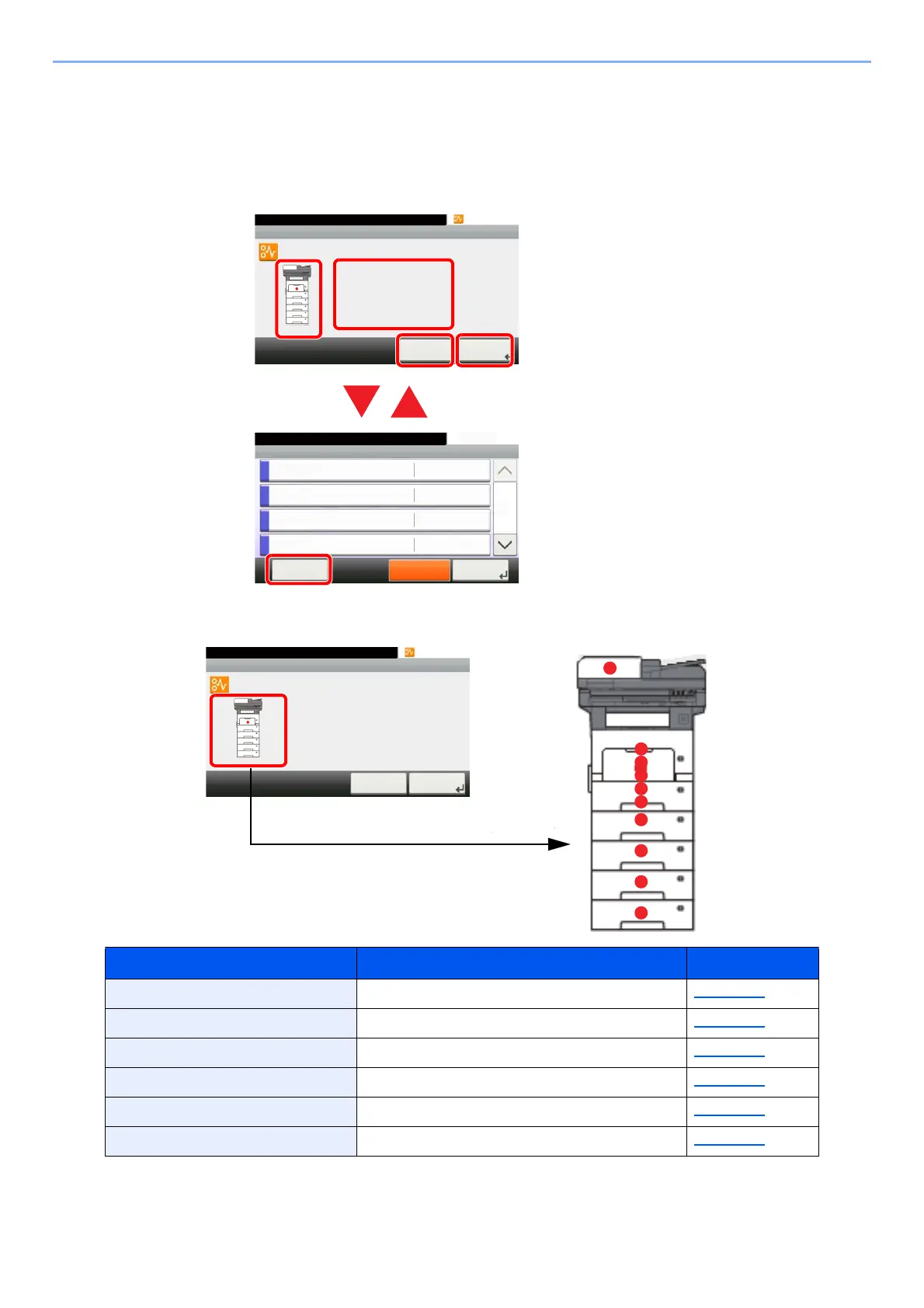

1 Shows the location of a paper jam.
2 Shows the previous step.
3 Shows the next step.
4 Shows the removal procedure.
5 Selecting [Status/Job Cancel] key
displays [Hold]. Selecting [Hold]
displays status screen, and the status
of jobs can be checked.
6Select [Display Error] to return to the
paper jam guidance.
Paper Jam Location Indicator Paper Jam Location Reference Page
A Multi Purpose Tray page 10-32
B Cassettes 1 to 5 page 10-33
C Duplex Unit page 10-34
D Inside the Machine page 10-35
E Inner Tray / Inside Rear Cover page 10-36
F Document Processor page 10-37
10:10
Open cassette 1 and
remove paper.
Set cassette 1.
JAM 0501
Paper jam.
< Back Next >
1/2
1
2
4
3
Status/Job Cancel.
Status
Print Job Status
10:10
Send Job Status
Store Job Status
Scheduled Job
Pause All
Print Jobs
1/5
CloseDisplay
Error
6
A
F
D
E
B
C
B
B
B
B
10:10
Open cassette 1 and
remove paper.
Set cassette 1.
JAM 0501
Paper jam.
< Back Next >
1/2

Kyocera ECOSYS M3660idn Specifications

General

Secure printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	4.9 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Duplex print speed (black, normal quality, A4/US Letter)	43 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	6 s
Copy speed (black, normal quality, A4)	60 cpm
Scan to	E-mail, FTP, SMB, TWAIN, USB, WIA
Scanner type	Flatbed & ADF scanner
Scan speed (color)	- ppm
Image formats supported	JPEG, TIFF
Document formats supported	PDF, XPS
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax resolution (black)	400 x 400 DPI
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black
Maximum duty cycle	275000 pages per month
Recommended duty cycle	5000 - 15000 pages per month
Number of print cartridges	1
Page description languages	OpenXPS, PCL 6, XPS
Display	TFT
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	3
Coprocessor frequency	1.2 GHz
Maximum internal memory	3000 MB
Sound power level (standby)	30 dB
Sound pressure level (copying)	57 dB
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	1276 W
Power consumption (ready)	54 W
Power consumption (sleep)	0.5 W
Power consumption (copying)	746 W
Power consumption (printing)	723 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	3.37 kWh/week
Paper input type	Cassette
Total input capacity	600 sheets
Total output capacity	500 sheets
Maximum input capacity	2600 sheets
Total number of input trays	2
Maximum number of input trays	6
Auto document feeder (ADF) input capacity	100 sheets
Scan media weight	50 - 120 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Multi-purpose tray media types	Legal
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Sustainability certificates	Blue Angel, RoHS, EPEAT Silver, ENERGY STAR
Certification	TÜV/GS, CE
Included cartridge capacity (black)	10000 pages
Harmonized System (HS) code	84433100

Weight and Dimensions

Depth	495 mm
Width	480 mm
Height	590 mm
