2PX/2PY
1-5-12
4. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).
5. Remove the right rear cover and right
cover (see page 1-5-6).
6. Remove the left rear cover and left
cover (see page 1-5-9).
7. Release three hooks and then remove
the switch holder.
8. Release four hooks and then remove
the inner cover.

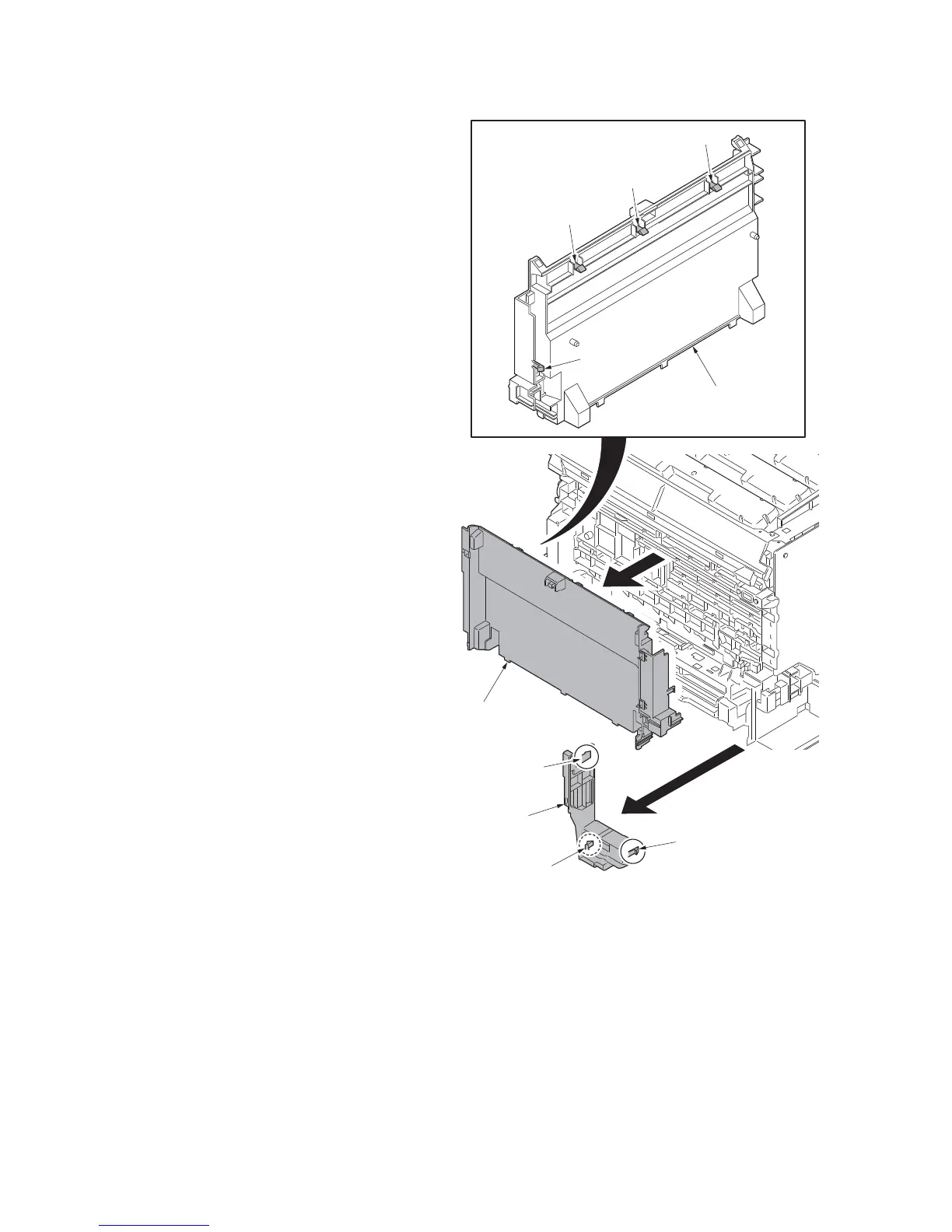

Figure 1-5-19
Inner cover
Inner cover
Hook
Hook
Hook
Hook
Hook
Hook
Switch
holder
Hook
