2PX/2PY
1-5-90

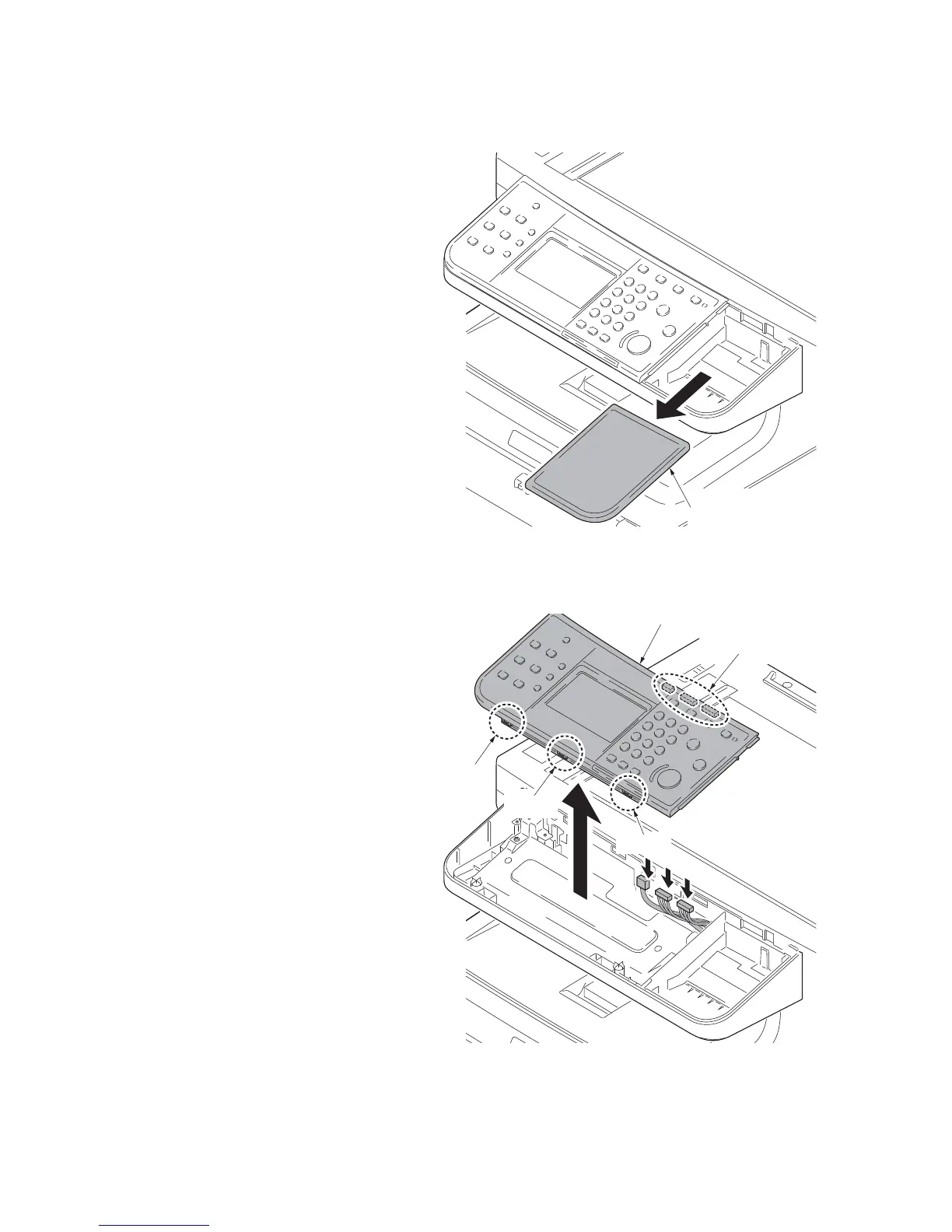

(2) Detaching and refitting the operation panel
Procedure
1. Remove the operation panel right cover
by sliding forward.
Figure 1-5-146
2. Release three hooks and then remove
the operation panel.
3. Remove three connectors.
4. Check or replace the operation panel
and refit all the removed parts.
Figure 1-5-147
Operation panel
right cover
Operation panel
Connectors
Hook
Hook
Hook
To Next Page
