(3) Detaching and refitting the image scanner unit
Procedure
(Detach the covers)
1. Open the paper conveying unit.
2. Release the hook and then remove the
IF cover.

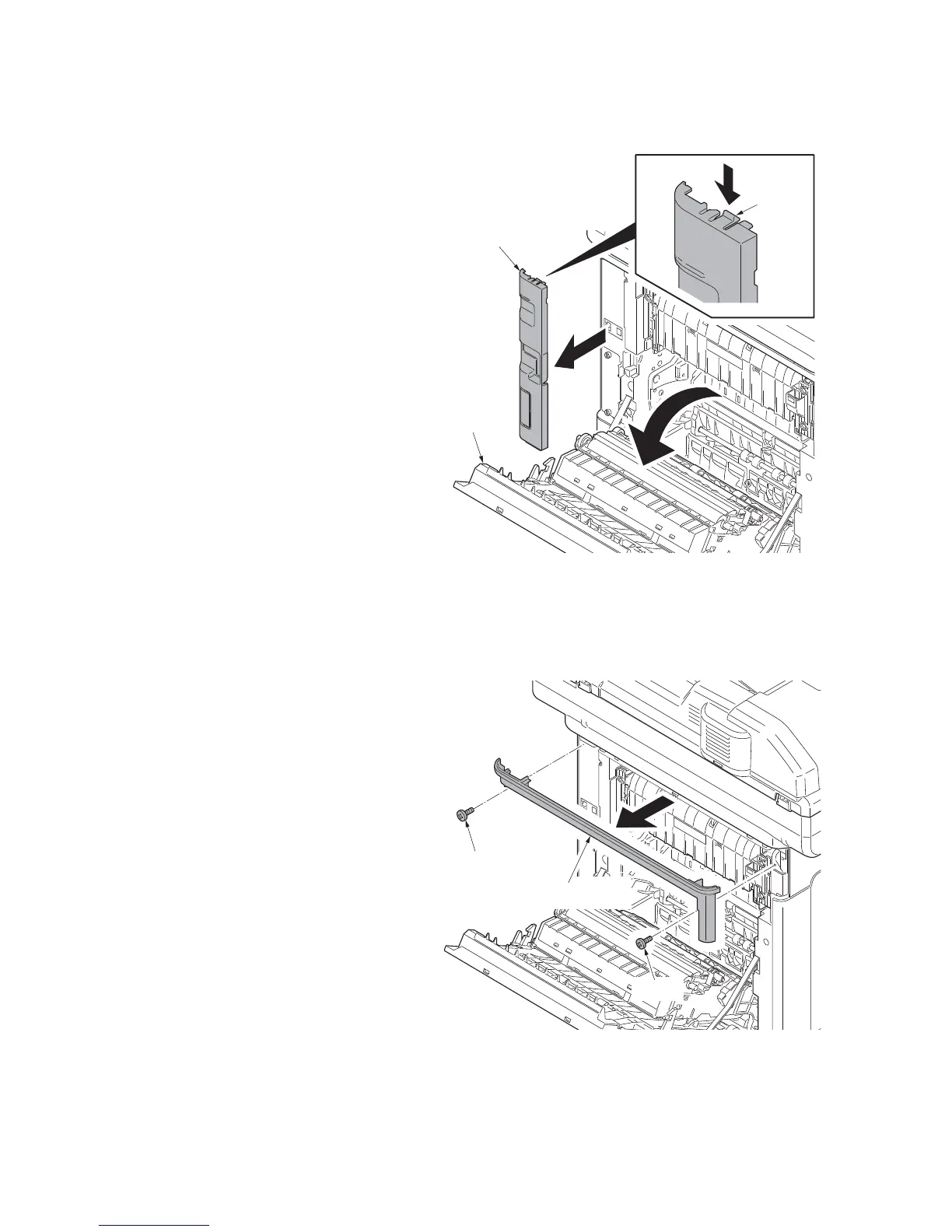

Figure 1-5-79
3. Remove two screws and then remove
the rear uppercover.
Figure 1-5-80
IF cover
Paper
conveying
unit
Hook
Rear upper cover
Screw
Screw
