Kyocera ECOSYS M6026cidn

2PX/2PY
1-5-31

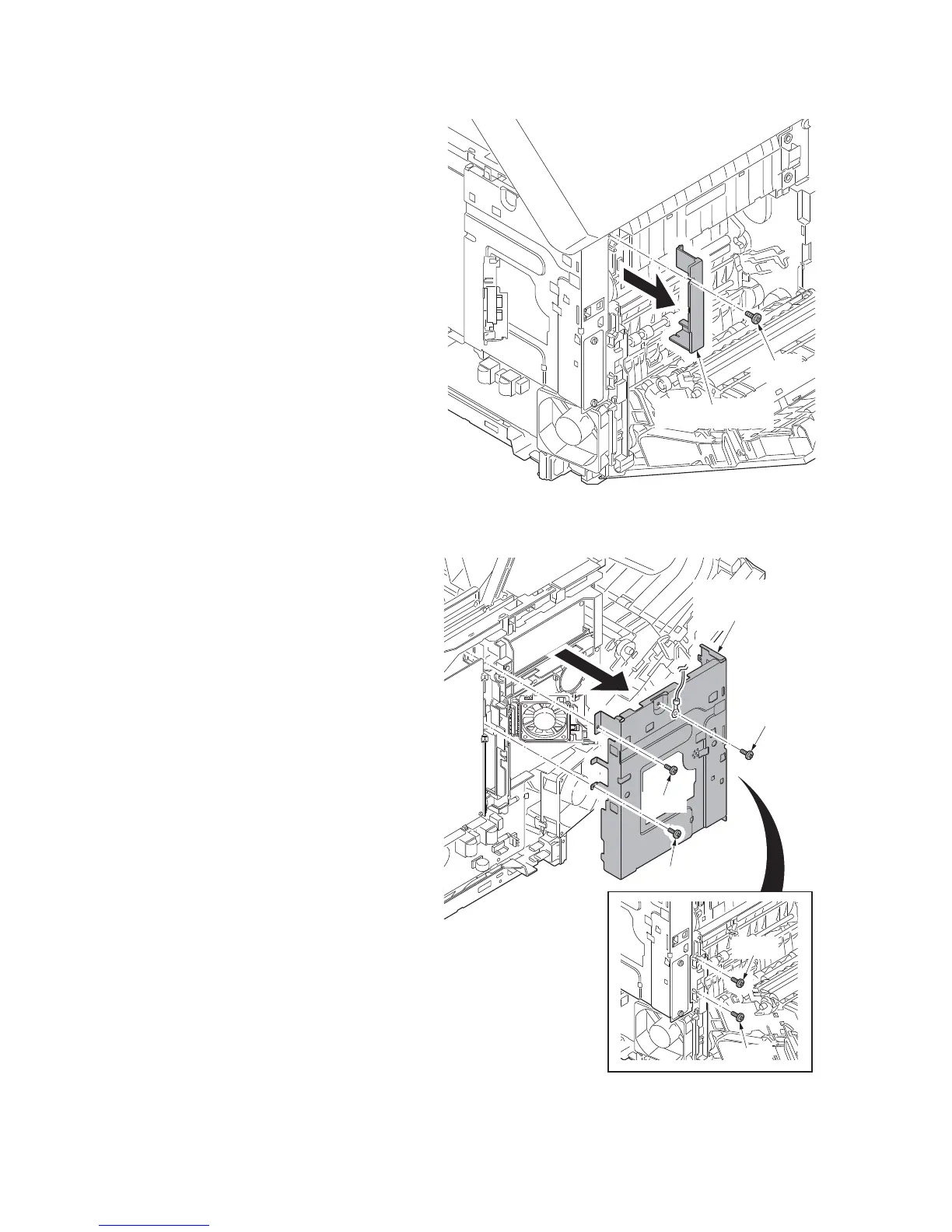

6. Remove the screw and then remove the
fuser wire cover.
Figure 1-5-45
7. Remove five screws and then remove
the controller shield.
Figure 1-5-46
Screw
Fuser wire cover
Controller
shield
Screw
Screw
Screw
Screw
Screw
