17. Release the hook. Slide the right lower
coverforward and then remove it.

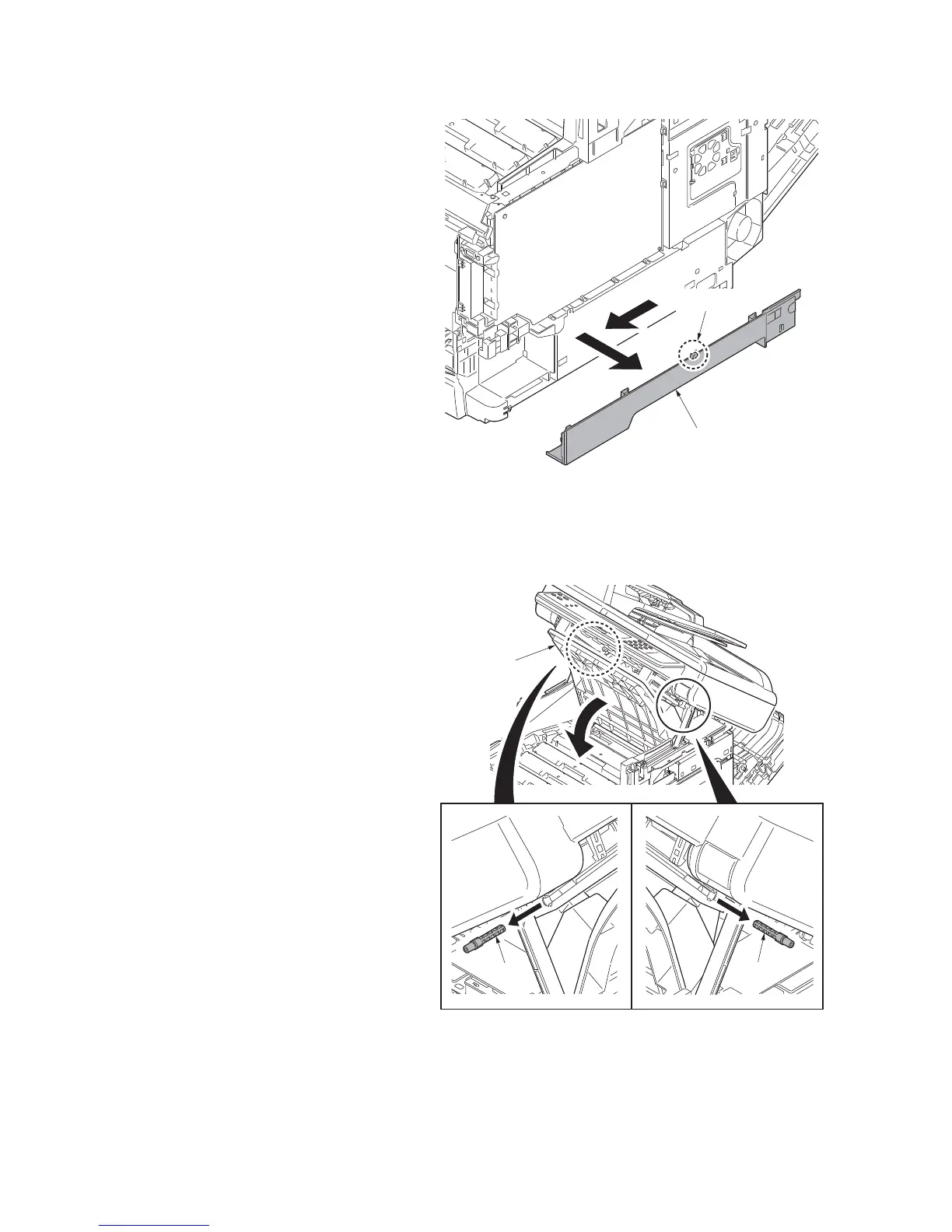

Figure 1-5-89
(Fully open the Document Processor and the
scanner unit.)
18. Remove the left and right pins by push-
ing the pins out from inside while open-
ing the top tray till the half way of the
opening angle. (After this procedure,
the top tray goes down and only the
scanner unit opens.)
Figure 1-5-90
Right lower cover
Hook
Pin
Inner tray
Pin
