Kyocera ECOSYS M6026cidn - Page 245

2PX/2PY-1
1-5-59

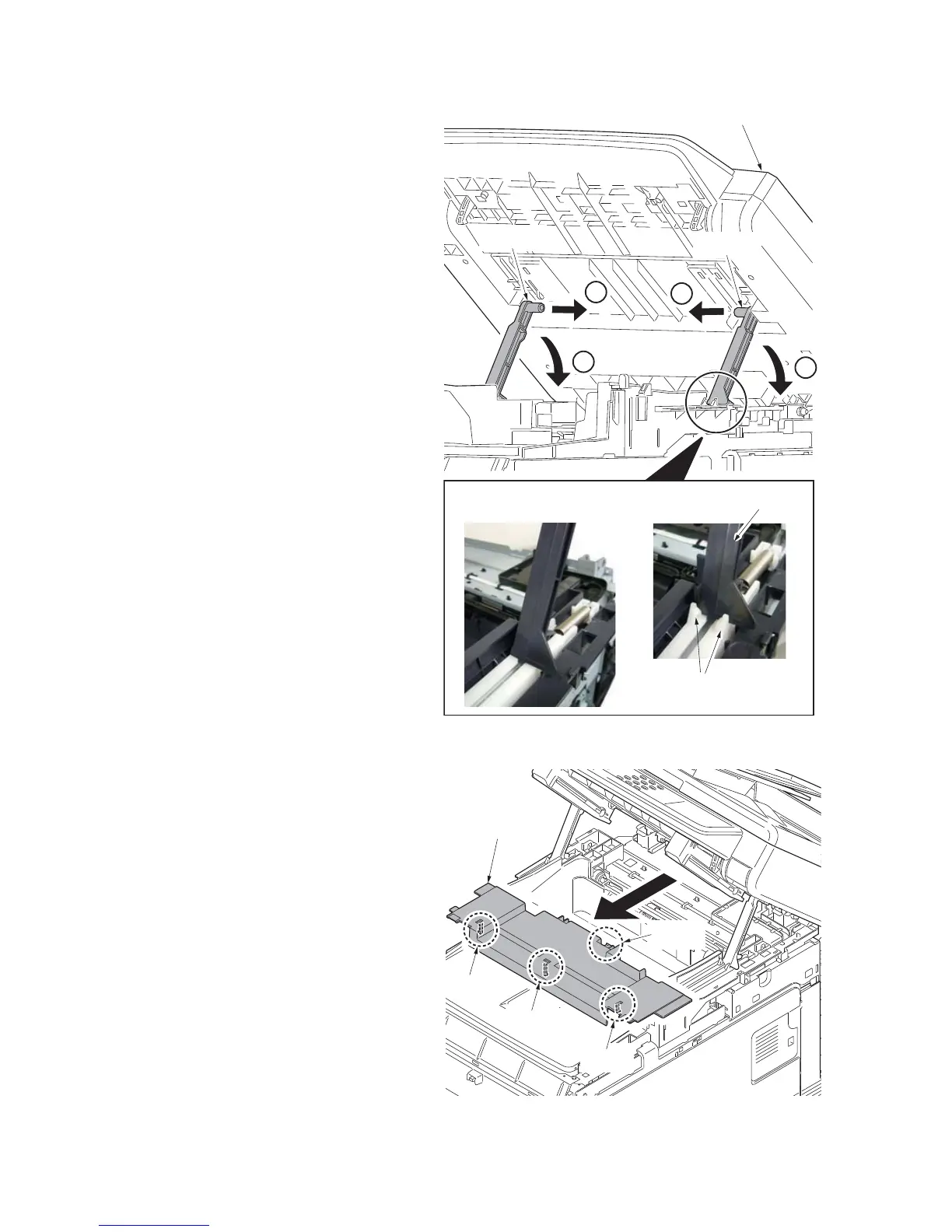

21. Remove left and right holders from the
scanner unit.
*: When reattaching the holders in the scan-
ner unit, assemble the parts so that the
holders are in front of the triangle ribs of
the ISU frame.
(If the holders are behind the triangle ribs,
the scanner unit cannot be closed.)
Figure 1-5-93
22. Release four hooks and remove the
upper middle cover.
Figure 1-5-94
[Attachment of the right holder]
(Normal)
(Wrong)
Holder
Triangle ribs
Holder
Holder
Scanner unit
1
1
2
2
Upper middle
cover
Hook
Hook
Hook
Hook
