4. Remove the right rear cover, right cover
and right lower cover (see page 1-5-6).
5. Remove the controller shield (see page
1-5-30).
6. Remove connector (YC32) from main
PWB.

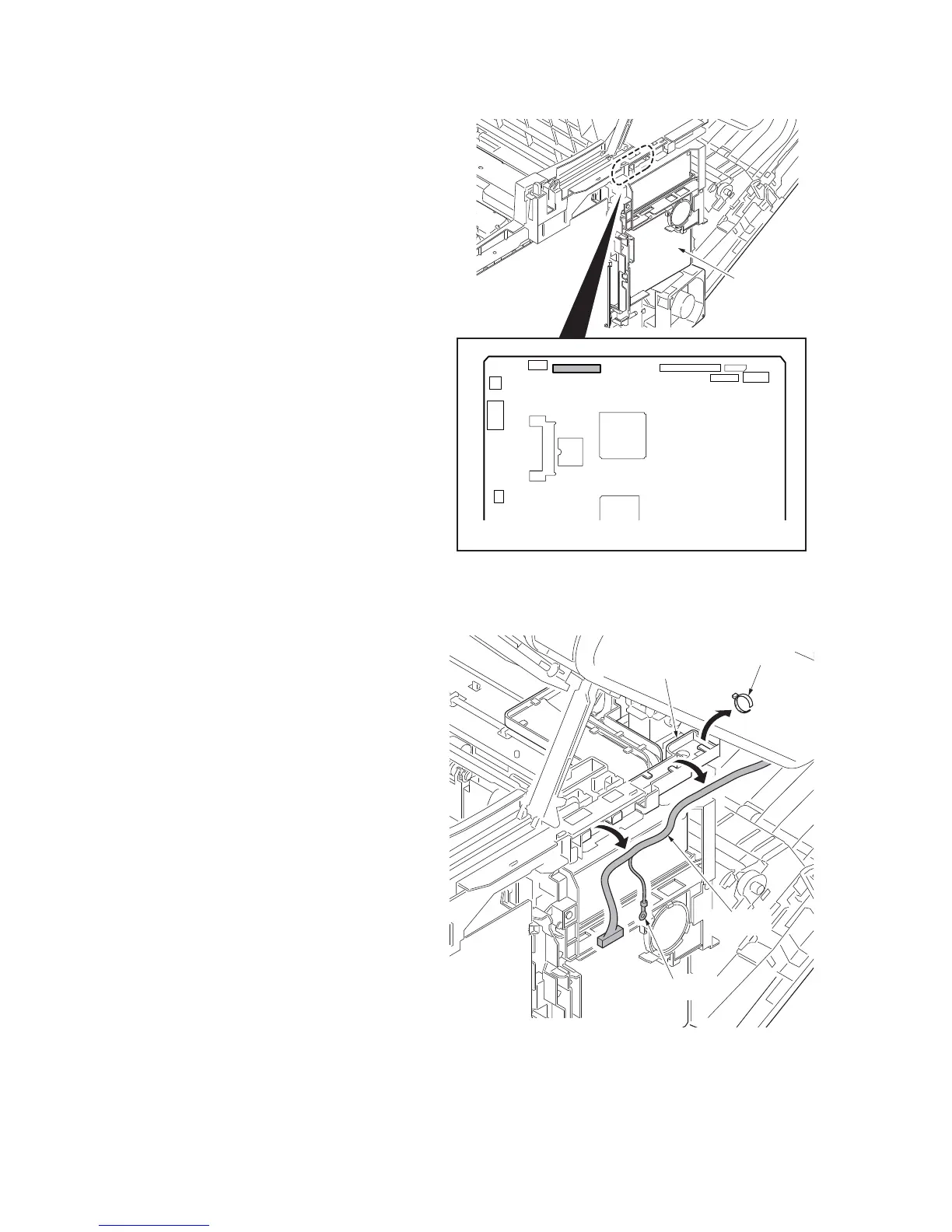

Figure 1-5-129
7. Cut the band and then remove the it.
8. Remove the DP wire and ground wire
from wire holder.
9. Close the scanner unit.
Figure 1-5-130
YC32
Main PWB
Main PWB
DP wire
Wire holder
Band
Ground wire
