2P7/2R0/3PN
1-5-34

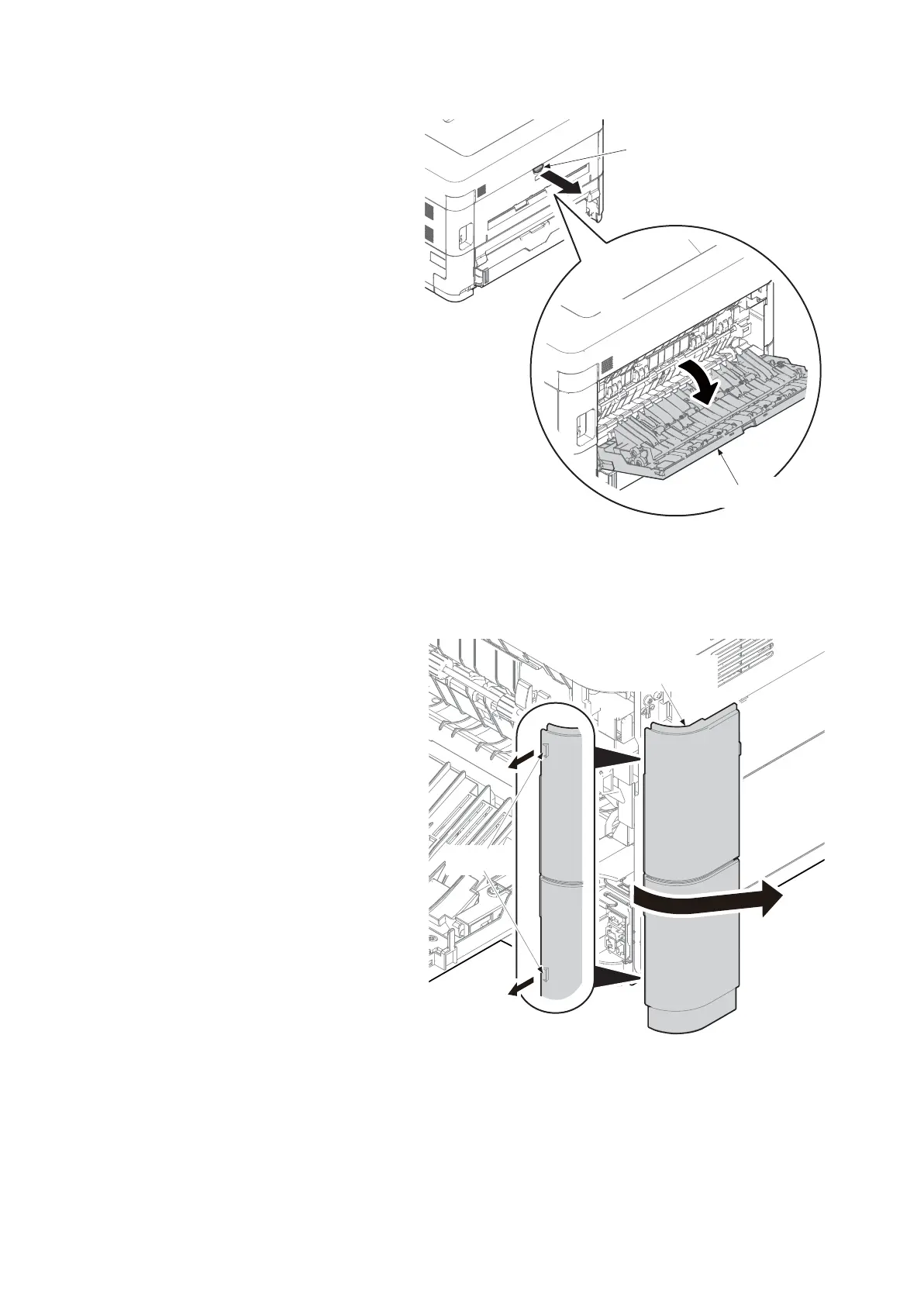

16. Open the rear cover by pulling the
knob.
Figure 1-5-61
17. Release two hooks of the rear left cover
while pulling forward.
18. Remove the rear left cover by twisting it
forward.
Figure 1-5-62
Knob
Rear cover
Rear left cover
Hooks
