2P7/2R0/3PN
1-5-58

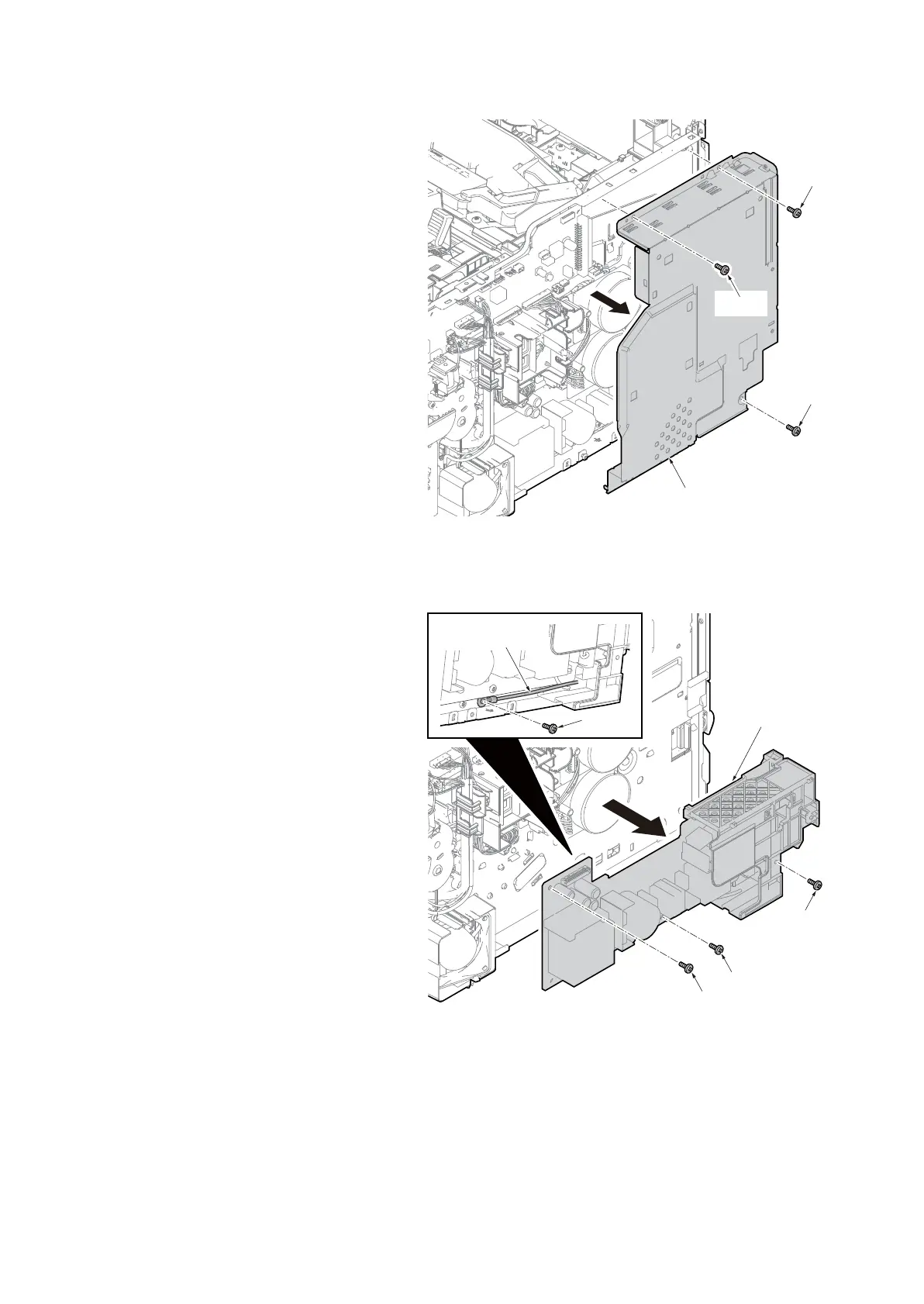

18. Remove three screws and then remove
the controller box cover.
Figure 1-5-107
19. Remove the grounding wire by remov-
ing the screw.
20. Remove three screws and then remove
the power source PWB assembly.
Figure 1-5-108
Controller box cover
Screw
Screw
Screw
Power source
PWB assembly
Screw
Screw
Screw
Screw
Grounding wire
