2P7/2R0/3PN
1-5-66

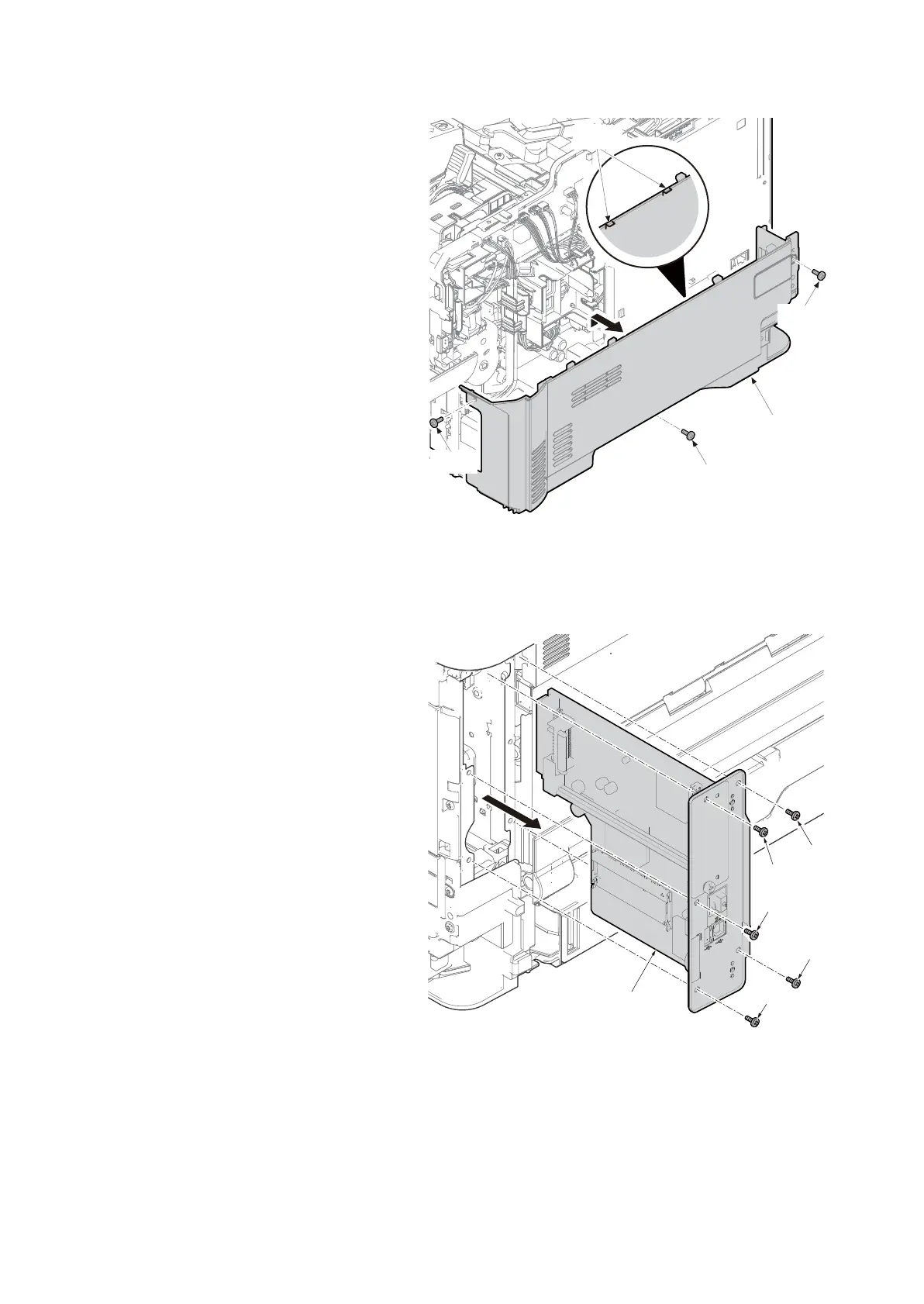

8. Remove three screws.
9. Release two hooks by sliding the right
lower cover upward and then remove it.
Figure 1-5-121
10. Unplug the power cable.
*: Do not insert or remove main PWB
assembly while machine power is on.
Doing so may cause damage to the
machine and the main PWB.
11. Remove five screws and then pull the
main PWB assembly out forward.
Figure 1-5-122
Right lower
cover
Screw
Screw
Screw
Hooks
Screw
Screw
Screw
Screw
Main PWB assembly
Screw
To Next Page
