Kyocera ECOSYS P6030cdn Service Manual

2K8
2-1-18

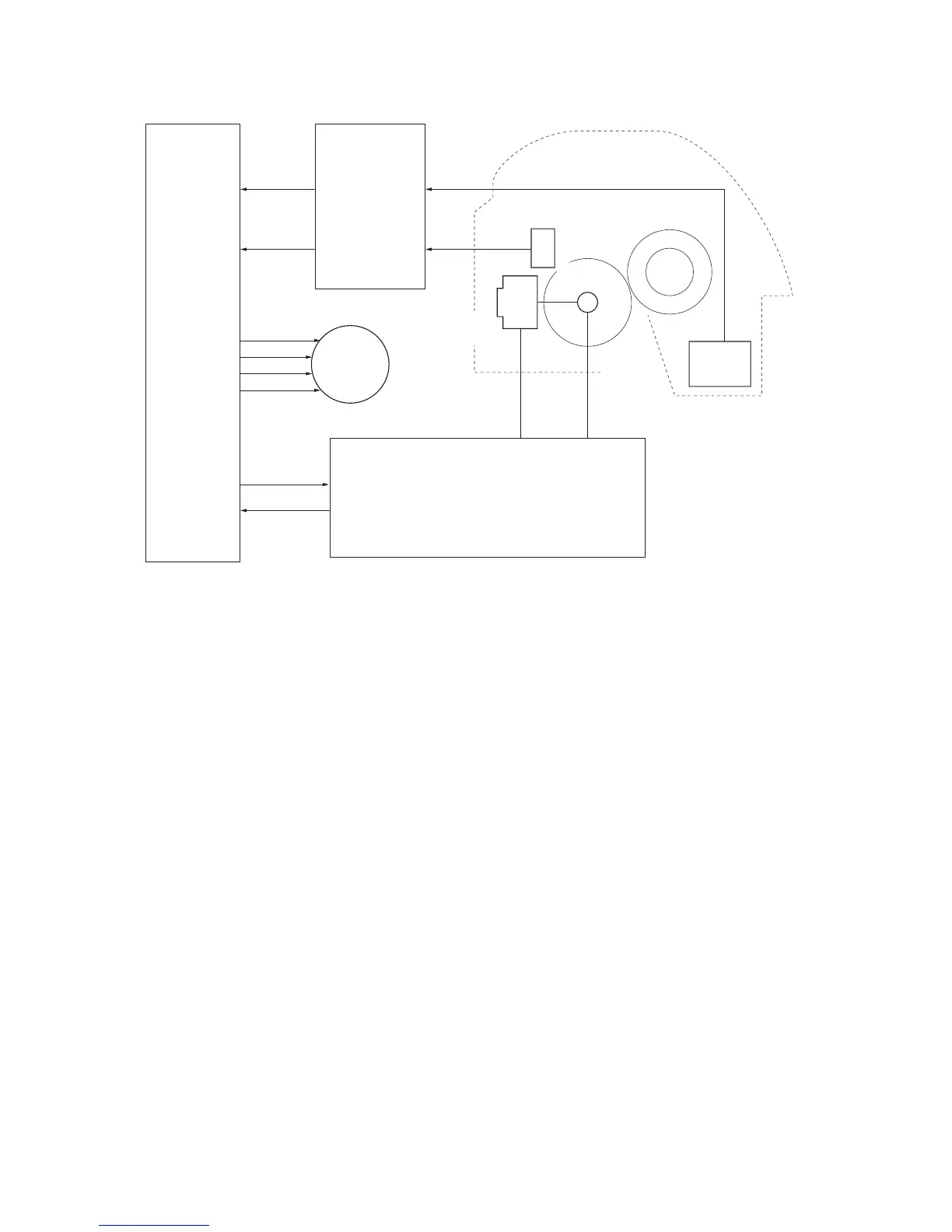

Figure 2-1-19 Fuser section block diagram
Engine PWB
Paper exit PWB
Envelope
switch
Power source PWB
Fuser
heater lamp
Fuser thermistor
Fuser unit
LIVE NEUTRAL
YC102-3 YC102-1
Fuser
thermal cutout
FTHERM
FTHERM
HEATREM
ZCROSS
YC103-3
YC103-1
YC19-3
YC19-1
STFUA
STFUB
STFUAN
STFUBN
YC20-2
YC20-3
YC4-2YC1-2
PDIRN
PDIRN
YC6-2YC1-3
YC39-4
YC39-3
YC39-2
YC39-1
Fuser motor

Kyocera ECOSYS P6030cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	100000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2150 sheets
Total number of input trays	2
Maximum number of input trays	5
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	34.4 dB
Sound pressure level (printing)	52.5 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	76 W
Power consumption (printing)	529 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	480 mm
