Kyocera ECOSYS P6030cdn Service Manual

2K8
1-3-8
Printing a status page for network
Description
On the status page for network, detailed network setting information is printed.
Procedure
1. Enter the service mode [>>Print Network Status Page].
2. Press the OK key. [>>Print Network Status Page?] will be displayed.
3. Press the OK key. Three sheets of network status page will be printed.
Completion
Printing a test page
Description
Four colors are printed respectively with halftones of three different levels.
Purpose
To check the activation of the developer and drum units of four colors.
Procedure
1. Enter the service mode [>>Print Test Page].
2. Press the OK key. [>>Print Test Page?] will be displayed.
3. Press the OK key. A sheet of test page will be printed.
Completion
*
1
: Since focusing in yellow is hardly readable, yellow is mixed with cyan for more readability,
resulting in green.
*
2
: Each portion of colors has three different magnitude of halftones (bands). If focus is
excessively lost, dots are not recognizable with the 16/256 band, resulting in uneven
density. It also results in vertical streaks in the 24/256 and/or 32/256 bands.

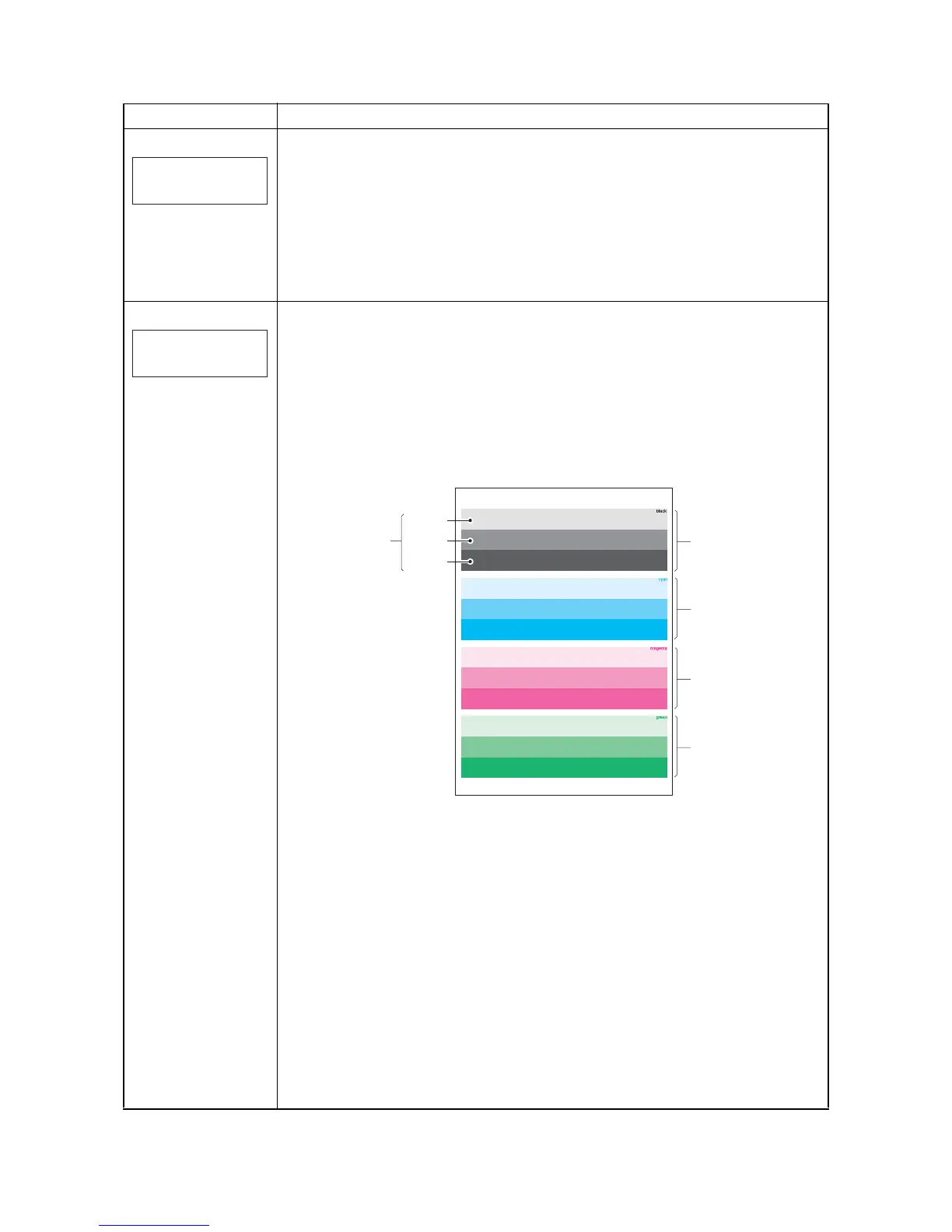

Figure 1-3-3 Test page
Service items Description
>>Print Network
Status Page
>>Print
Test Page
16/256
24/256
32/256
Black
Cyan
Magenta
Green*
1
(Yellow)
Density*
2

Kyocera ECOSYS P6030cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	100000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2150 sheets
Total number of input trays	2
Maximum number of input trays	5
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	34.4 dB
Sound pressure level (printing)	52.5 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	76 W
Power consumption (printing)	529 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	480 mm
