Kyocera ECOSYS P6030cdn Service Manual

2K8
2-2-4
(2) Switches and sensors

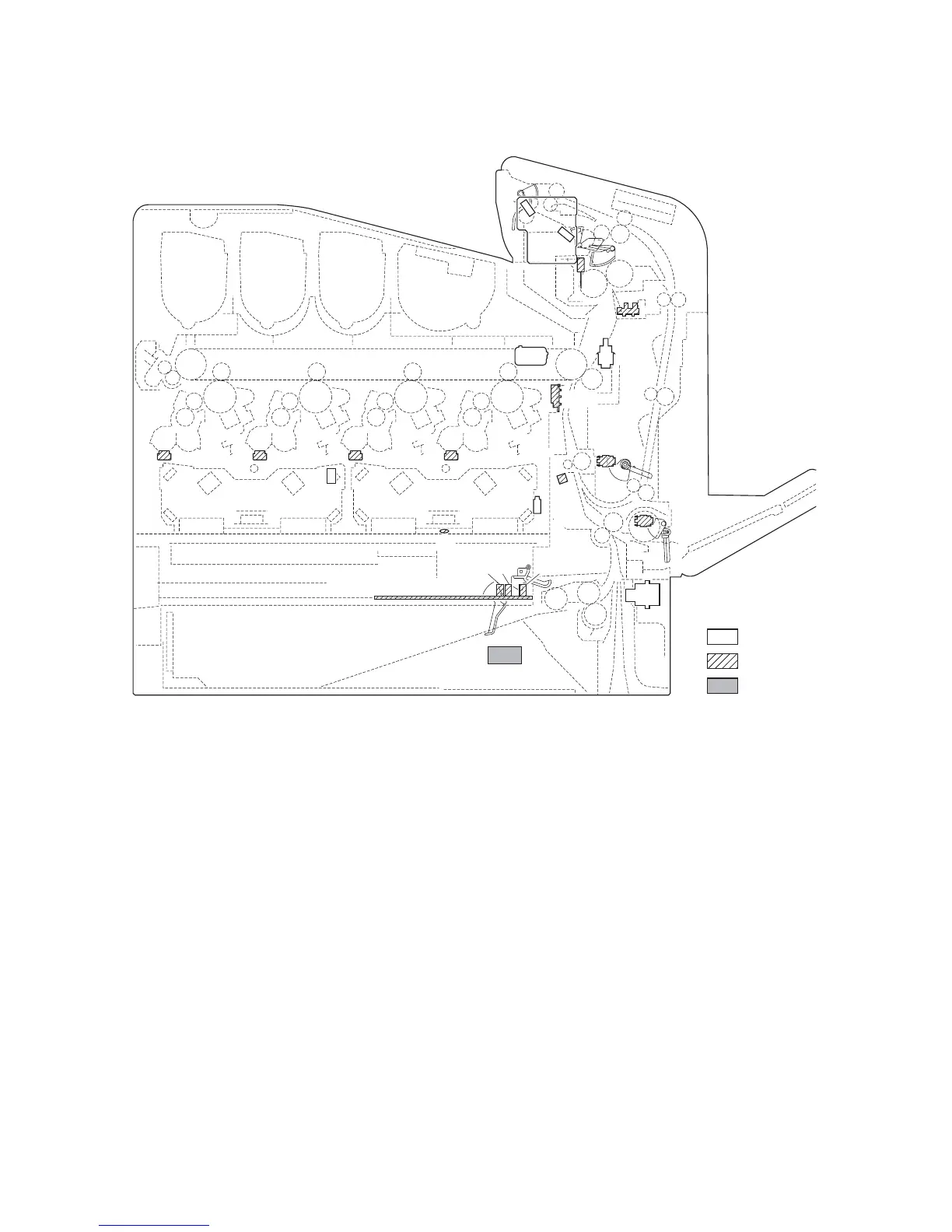

Figure 2-2-2 Switches and sensors
1. Power switch................................................ Turns ON/OFF the AC power source.
2. Interlock switch ............................................ Shuts off 24 V DC power line when the top cover and front cover are
opened.
3. Left cover switch .......................................... Shuts off 24 V DC power line when the left cover is opened.
4. Cassette size switch .................................... Detects the paper size dial setting of the paper setting dial.
5. Paper sensor 1............................................. Detects the presence of paper in the cassette.
6. Paper sensor 2............................................. Detects the presence of paper in the cassette.
7. Lift limit sensor ............................................. Detects activation of upper limit of the bottom plate in the cassette.
8. Registration sensor ...................................... Detects the timing of primary paper feed.
9. MP tray sensor............................................. Detects the presence of paper on the MP tray.
10. Duplex conveying sensor............................. Detects paper jam in the duplex section.
11. Paper exit sensor ......................................... Detects paper jam in the fuser/paper exit section.
12. Paper full sensor .......................................... Detects the paper full in the top tray.
13. Toner sensor M ............................................ Detects the toner density in the developing unit M.
14. Toner sensor C............................................. Detects the toner density in the developing unit C.
15. Toner sensor Y............................................. Detects the toner density in the developing unit Y.
16. Toner sensor K............................................. Detects the toner density in the developing unit K.
17. Right ID sensor ............................................ Measures image density for color calibration.
18. Left ID sensor............................................... Measures image density for color calibration.
19. Waste toner full sensor ................................ Detects the waste toner box being full.
20. Envelope switch ........................................... Detects the envelope mode setting.
Machine inside
Machine left
Machine right
21
3
19
1
4
56 7
12
11
22
2
10
8
9
16
17,18
151413
20
23

Kyocera ECOSYS P6030cdn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	100000 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	- sheets
Maximum input capacity	2150 sheets
Total number of input trays	2
Maximum number of input trays	5
Multi-Purpose tray input capacity	150 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	138 - 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	No
Mobile printing technologies	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Processor model	465S
Processor family	PowerPC
Maximum internal memory	1536 MB
Sound power level (standby)	34.4 dB
Sound pressure level (printing)	52.5 dB
Display	LCD
Certification	TÜV/GS, CE
Product color	Black, White
Display number of lines	2 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0 W
Power consumption (standby)	76 W
Power consumption (printing)	529 W
Power consumption (PowerSave)	4 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	518 mm
Width	345 mm
Height	480 mm
