1-3-12
FS-9120DN/9520DN

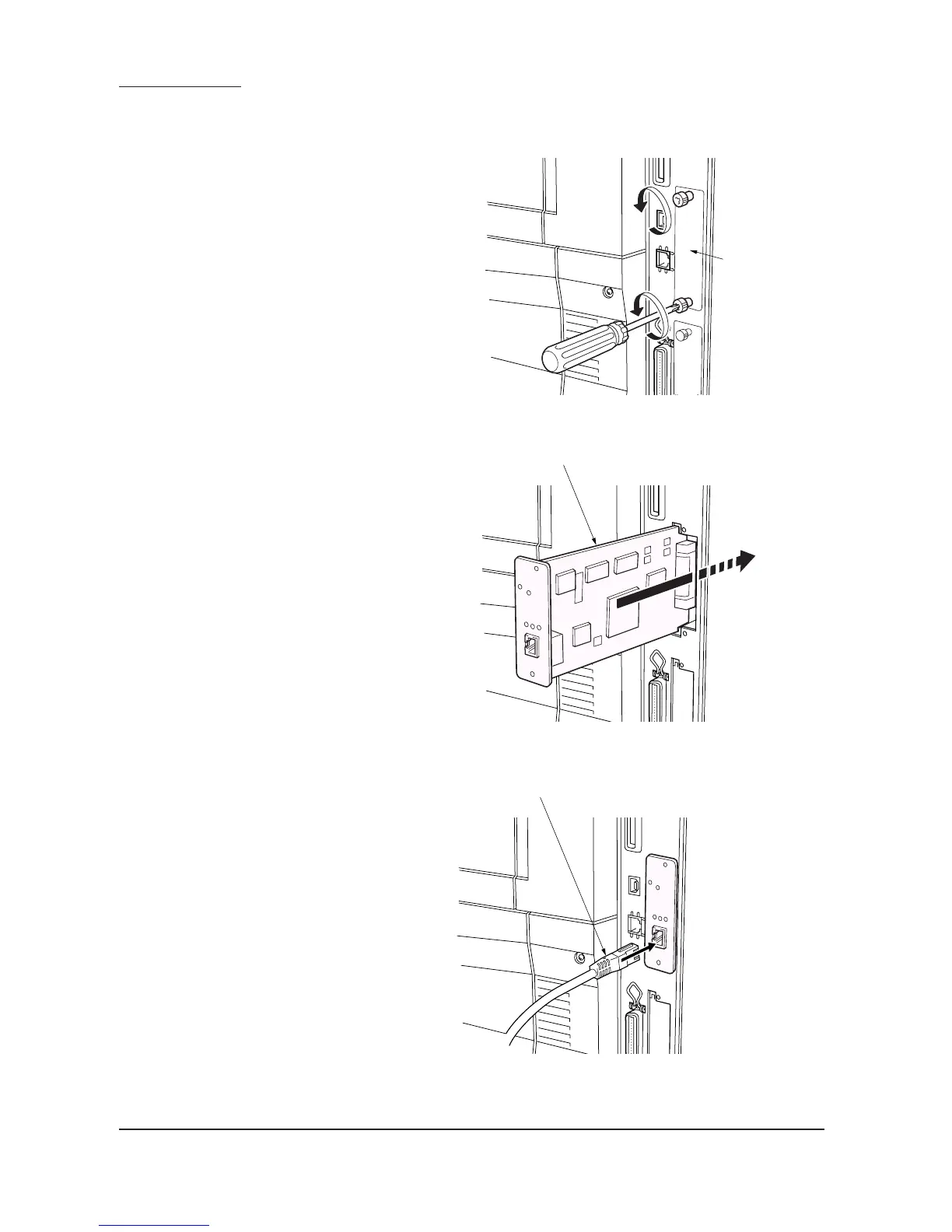

1-3-4 Installing the network interface card (option)
Procedure
1. Remove the two screws from the option
interface slot cover.
* The interface card can be mounted to either
of the two interface slots. If you install a hard
disk, however, mount the network interface
card to the upper slot (OPT2).
Figure 1-3-25
Figure 1-3-26
Figure 1-3-27
2. Insert the network interface card and secure it
with the screws removed in step 1.
3. Connect the network cable.
Option interface
slot cover
Network interface card
Network cable
To Next Page
