1-3-5 Installing the hard disk (option)
Procedure
1. Remove two screws and remove the slot
cover from the lower slot (OPT1/HDD).

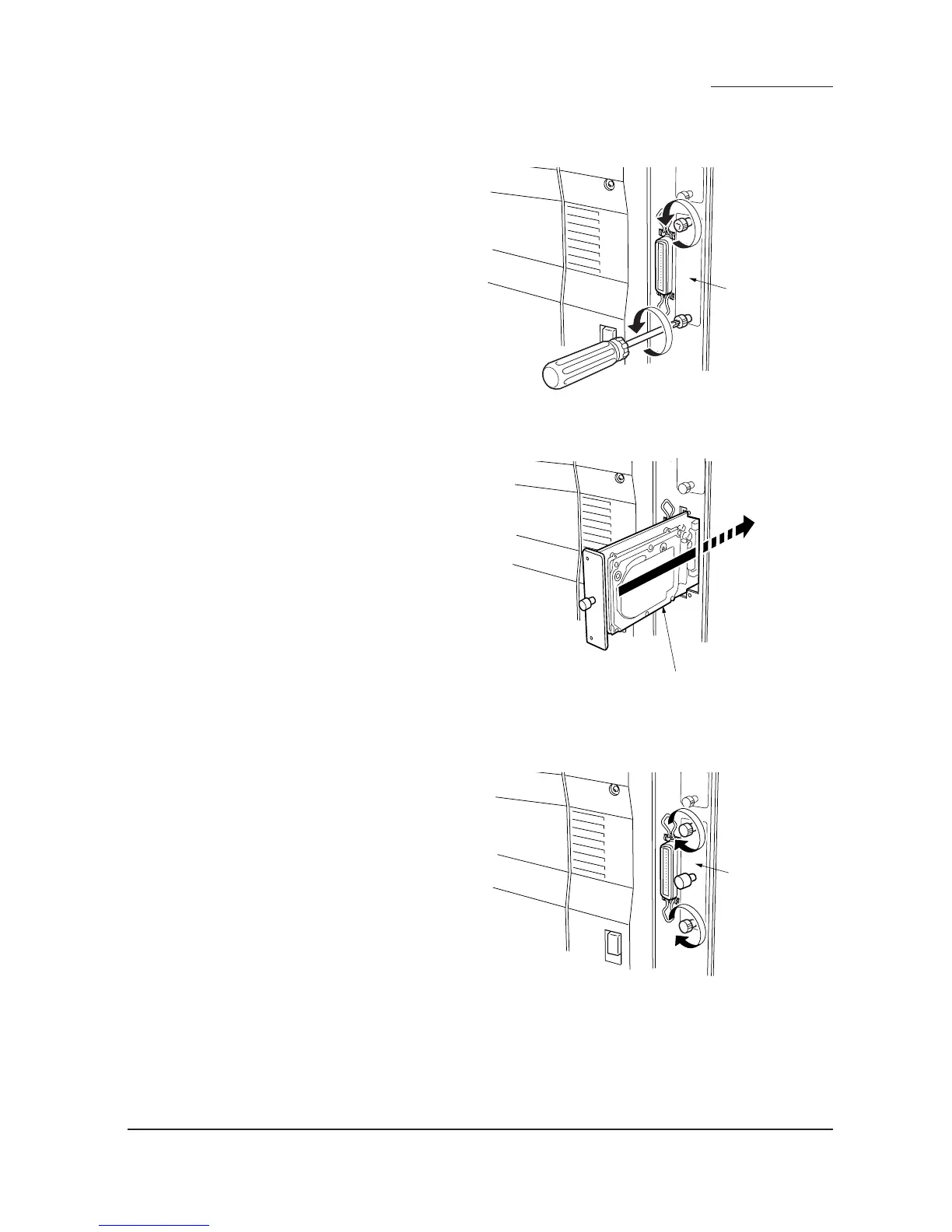

Figure 1-3-28
Figure 1-3-29
Figure 1-3-30
2. Insert the optional hard disk unit into the slot.
3. Tighten the two screws to secure the hard
disk unit.
Hard disk unit
Hard disk unit
Slot cover
