Kyocera FS-C5300DN Service Manual

2HL/2HM/2HN
1-5-36
1-5-9 Others
(1) Detaching and refitting the laser scanner unit
Procedure
1. Remove the all drum units (See page 1-5-
14).
2. Remove the all developing units (See page
1-5-13).
3. Remove the two connectors.
4. Remove the wires form the three clamps.

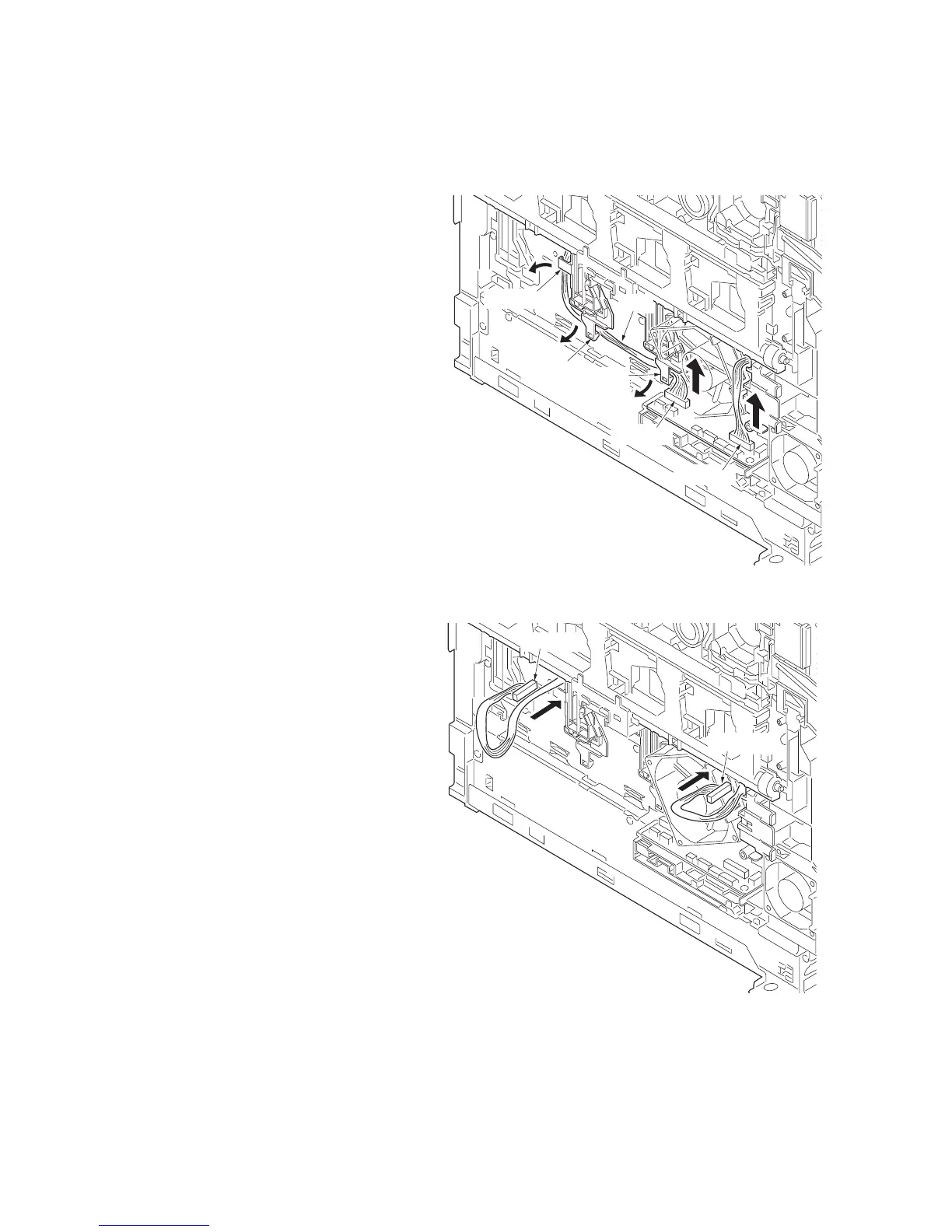

Figure 1-5-51
5. Draw the two connectors into the printer
inside.
Figure 1-5-52
Connector
Clamp
Wire
Clamp
Connector
Connector
Connector
Connector
