2-1-8 Duplex/conveying section
The duplex/conveying section consists of conveying path which sends the paper sent from the eject section to the paper
feed/conveying section when duplex printing.

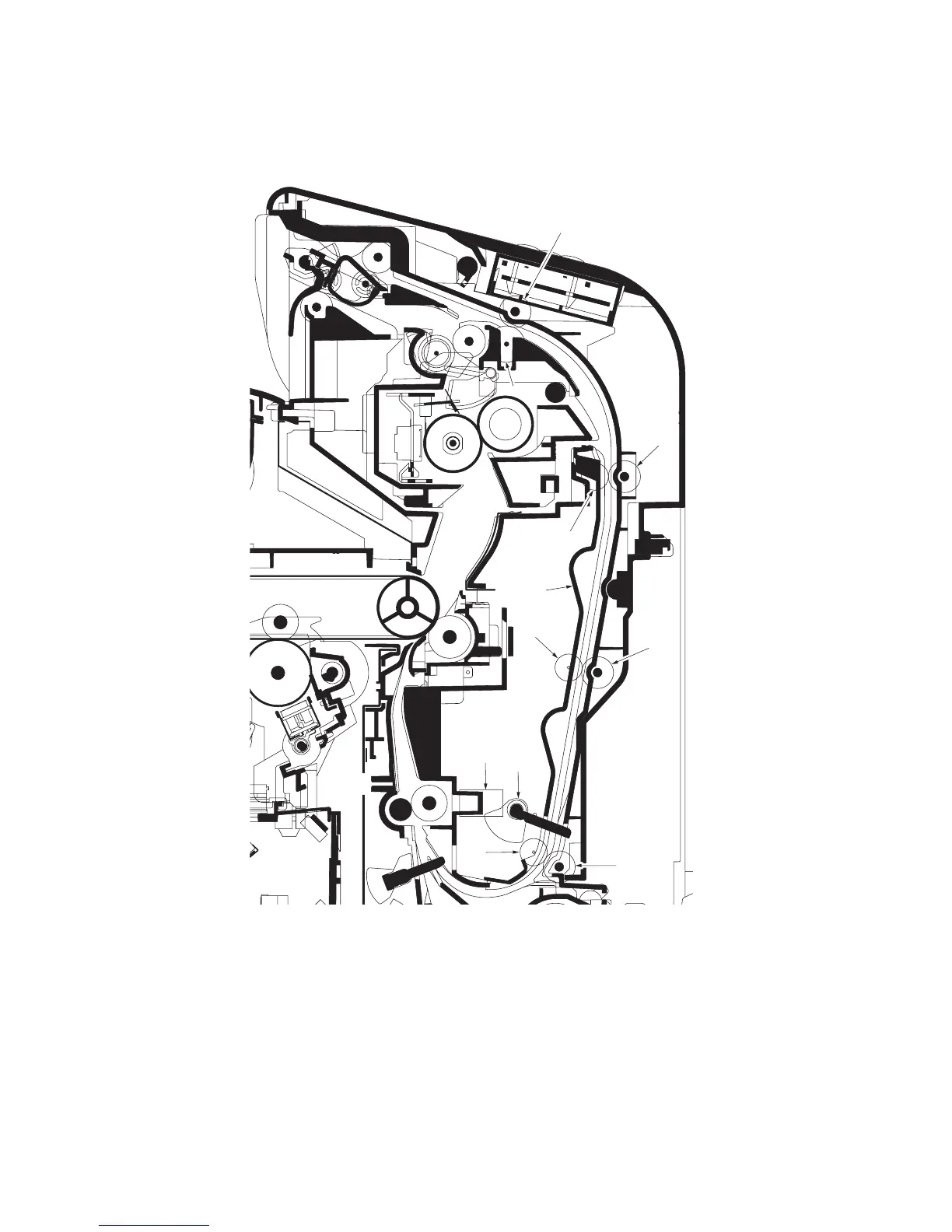

Figure 2-1-22 Duplex/conveying section
5
7
8
6
9
11
10
3
4
2
1
(1) Duplex roller 1
(2) Paper exit pulley
(3) Duplex roller 2
(4) Duplex pulley
(5) Duplex roller 3
(6) Duplex pulley
(7) Duplex feed roller
(8) Duplex pulley
(9) Duplex feed guide
(10) Duplex conveying sensor
(11) Actuator
(duplex conveying sensor)
