2HL/2HM/2HN
2-1-22

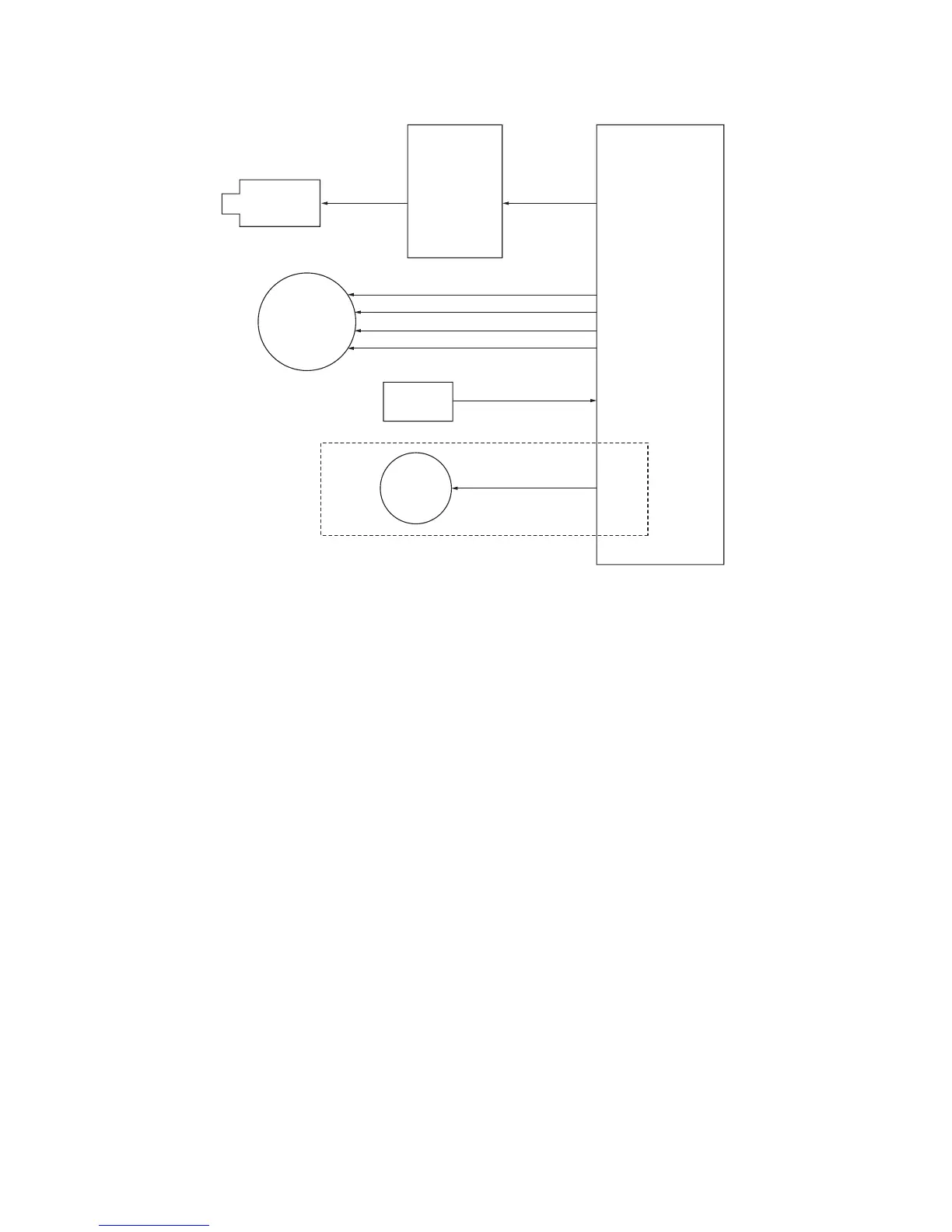

Figure 2-1-23 Duplex/paper conveying section block diagram
DUREVDRNDUREVDRN
Duplex
solenoid
Duplex motor
Engnie PWBPaper exit PWB
YC20-10YC3-2 YC1-10
STDUAN
STDUB
YC17-1
YC17-2
Duplex
clutch
DUCLDRN
YC3-9
YC17-3
STDUA
STDUBN
YC17-4
Duplex
conveying
sensor
DUREGPAP
YC21-3
