2HL/2HM/2HN
2-2-4
(3) Motors

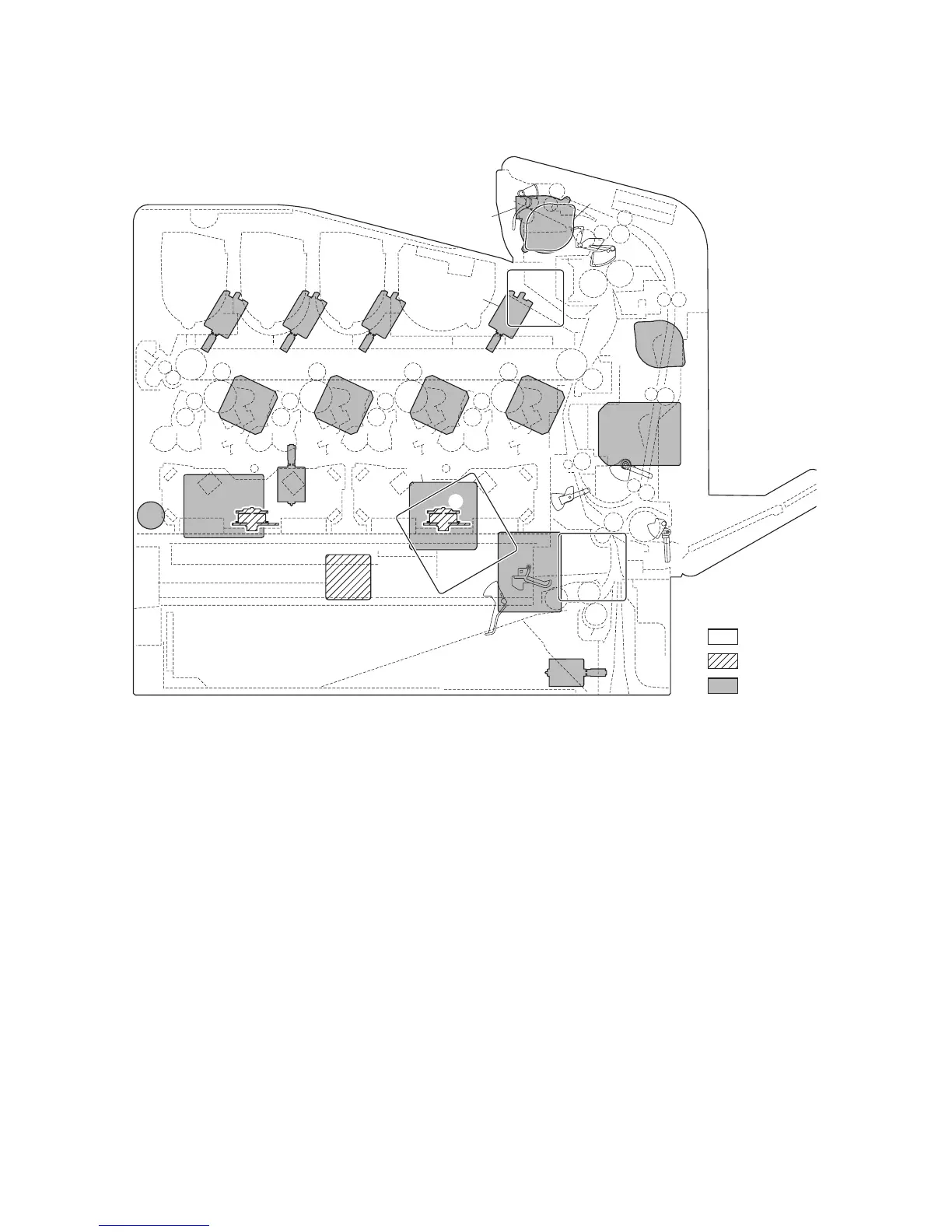

Figure 2-2-3 Motors
1. Paper feed motor ......................................... Drives the paper feed/conveying section and fuser unit.
2. Lift motor ...................................................... Operates the bottom plate in the cassette.
3. Polygon motor MC ....................................... Drives the polygon mirror.
4. Polygon motor YK ........................................ Drives the polygon mirror.
5. Drum motor M .............................................. Drives drum unit M.
6. Drum motor C .............................................. Drives drum unit C.
7. Drum motor Y............................................... Drives drum unit Y.
8. Drum motor K............................................... Drives drum unit K.
9. Developing motor MCY................................ Drives developing unit M, C and Y.
10. Developing motor K ..................................... Drives developing unit K.
11. Toner motor M.............................................. Replenishes the developing unit M with toner.
12. Toner motor C .............................................. Replenishes the developing unit C with toner.
13. Toner motor Y .............................................. Replenishes the developing unit Y with toner.
14. Toner motor K .............................................. Replenishes the developing unit K with toner.
15. Fuser motor.................................................. Drives fuser section and paper exit section.
16. Duplex motor................................................ Drives duplex section.
17. Main charger cleaning motor ....................... Drives main charger wire cleaning system.
18. LSU cleaning motor ..................................... Drives LSU dust shield glass cleaning system.
19. Developing fan motor 1................................ Cools the image formation section, engine PWB, main PWB and high
voltage PWB.
20. Developing fan motor 2................................ Cools the image formation section, engine PWB, main PWB and high
voltage PWB.
Machine inside
Machine left
Machine right
1
20
19
24
3
9
10
21
23
16
15
22
18
17
5
14
131211
6
7
8
2
4
