2HL/2HM/2HN
1-2-1
1-2 Installatio n
1-2-1 Installation environment
1. Temperature: 10 to 32.5°C/50 to 90.5°F
2. Humidity: 15 to 80%RH
3. Power supply: 120 V AC, 12 A
220 - 240 V AC, 7.2 A (Average)
4. Power source frequency: 50 Hz ±0.3%/60 Hz ±0.3%
5. Installation location
Avoid direct sunlight or bright lighting. Ensure that the photoconductor will not be exposed to direct sunlight or
other strong light when removing paper jams.
Avoid locations subject to high temperature and high humidity or low temperature and low humidity; an abrupt
change in the environmental temperature; and cool or hot, direct air.
Avoid places subject to dust and vibrations.
Choose a surface capable of supporting the weight of the machine.
Place the machine on a level surface (maximum allowance inclination: 1
°).
Avoid air-borne substances that may adversely affect the machine or degrade the photoconductor, such as mer-
cury, acidic of alkaline vapors, inorganic gasses, NOx, SOx gases and chlorine-based organic solvents.
Select a well-ventilated location.
6. Allow sufficient access for proper operation and maintenance of the machine.
Machine front: 600 mm/19
11/16"
Machine rear: 200 mm/7 7/8"
Machine right: 250 mm/11
13/16"
Machine left: 400 mm/11 13/16"
Machine top: 400 mm/7 7/8"

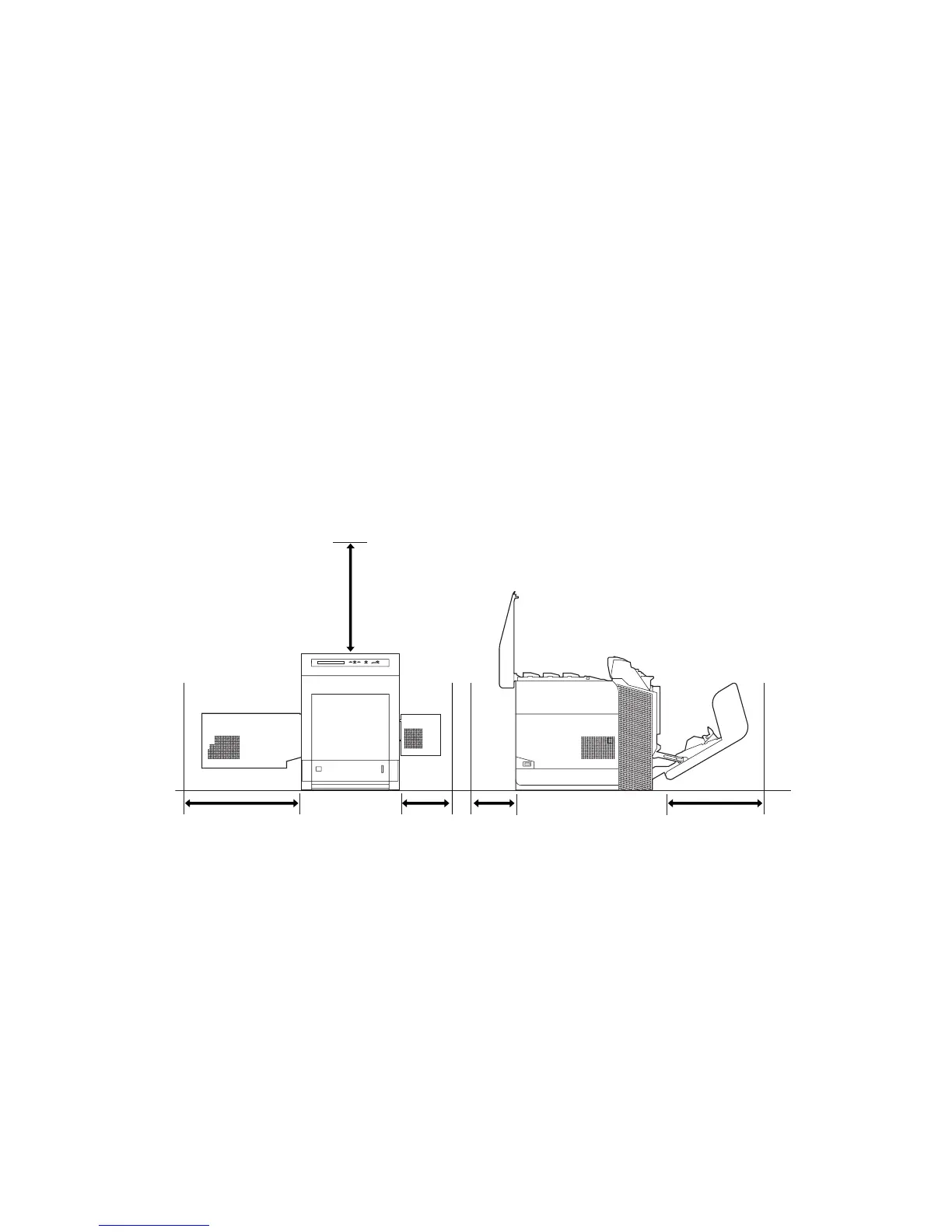

Figure 1-2-1
400 mm
(16 inches)
200 mm
(7-7/8 inches)
250 mm
(10 inches)
600 mm
(23-5/8 inches)
400 mm
(16 inches)
