2HL/2HM/2HN
1-2-2
1-2-2 Unpacking
(1) Unpacking

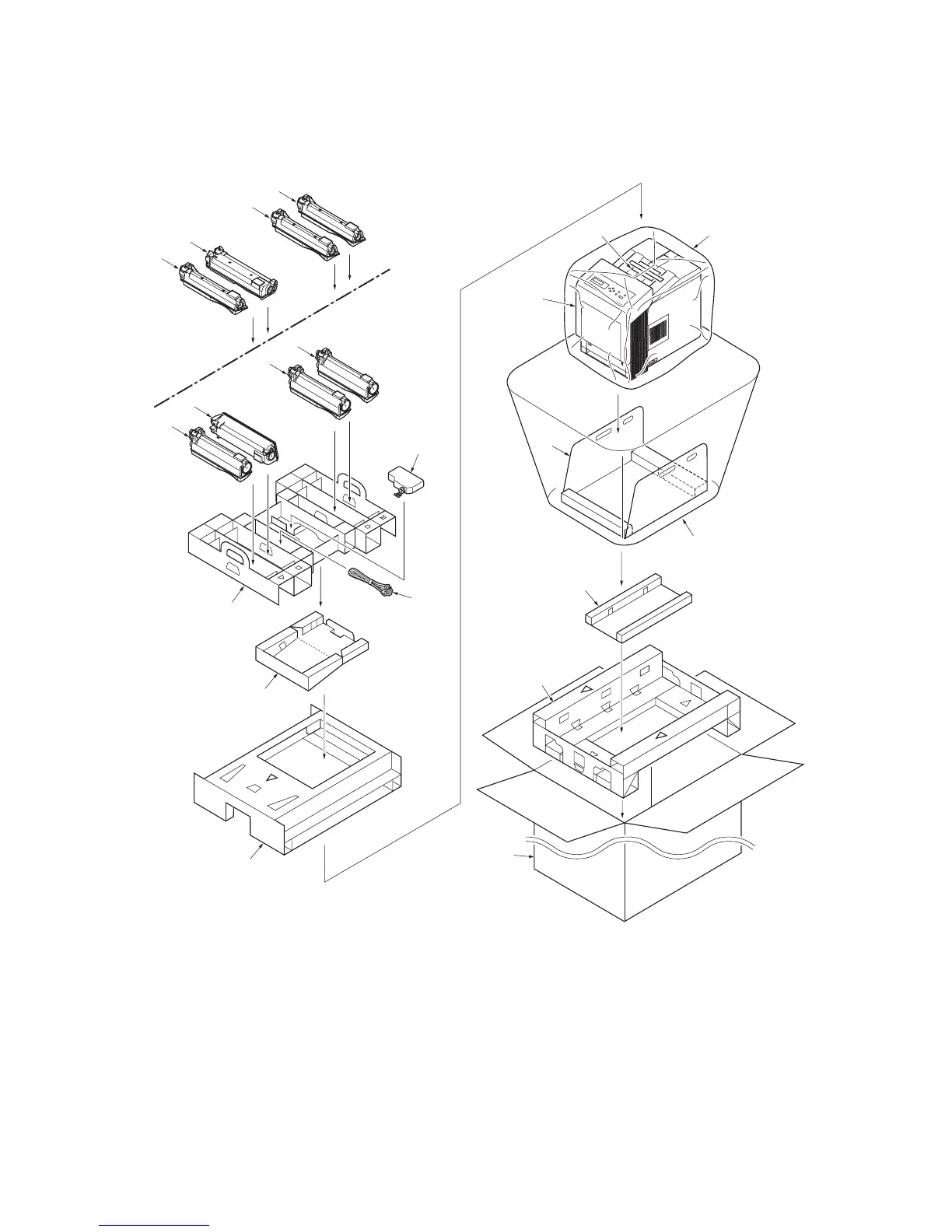

Figure 1-2-2 220-240 V AC model
1
15
16
14
8
9
12
13
6
11
10
3
3
4
4
7
17
5
5
2
2
21/23 ppm (250-sheet) model
21/23 ppm (500-sheet) model
26/28 ppm
(500-sheet) model
1. Printer
2. Toner container (Yellow)
3. Toner container (Black)
4. Toner container (Cyan)
5. Toner container (Magenta)
6. Waste toner box
7. Power cord
8. Main pad
9. Bottom pad
10. Bottom front/side pad
11. Outer case
12. Top pad
13. Top tray
14. Top spacer
15. Machine cover
600 x 600 x 900
16. Desiccating agent
17. Machine cover
650 x 650 x 1200
