Kyocera FS-C5300DN Service Manual

2HL/2HM/2HN
1-5-10
(2) Detaching and refitting the retard roller
Procedure
1. Remove the cassette (See page 1-5-8).
2. Push the bottom plate down until it locks.
21/23 ppm (500-sheet) model and 26/28
ppm (500-sheet) model only.
3. Release the two hooks and then remove the
retard guide (retard roller assembly).

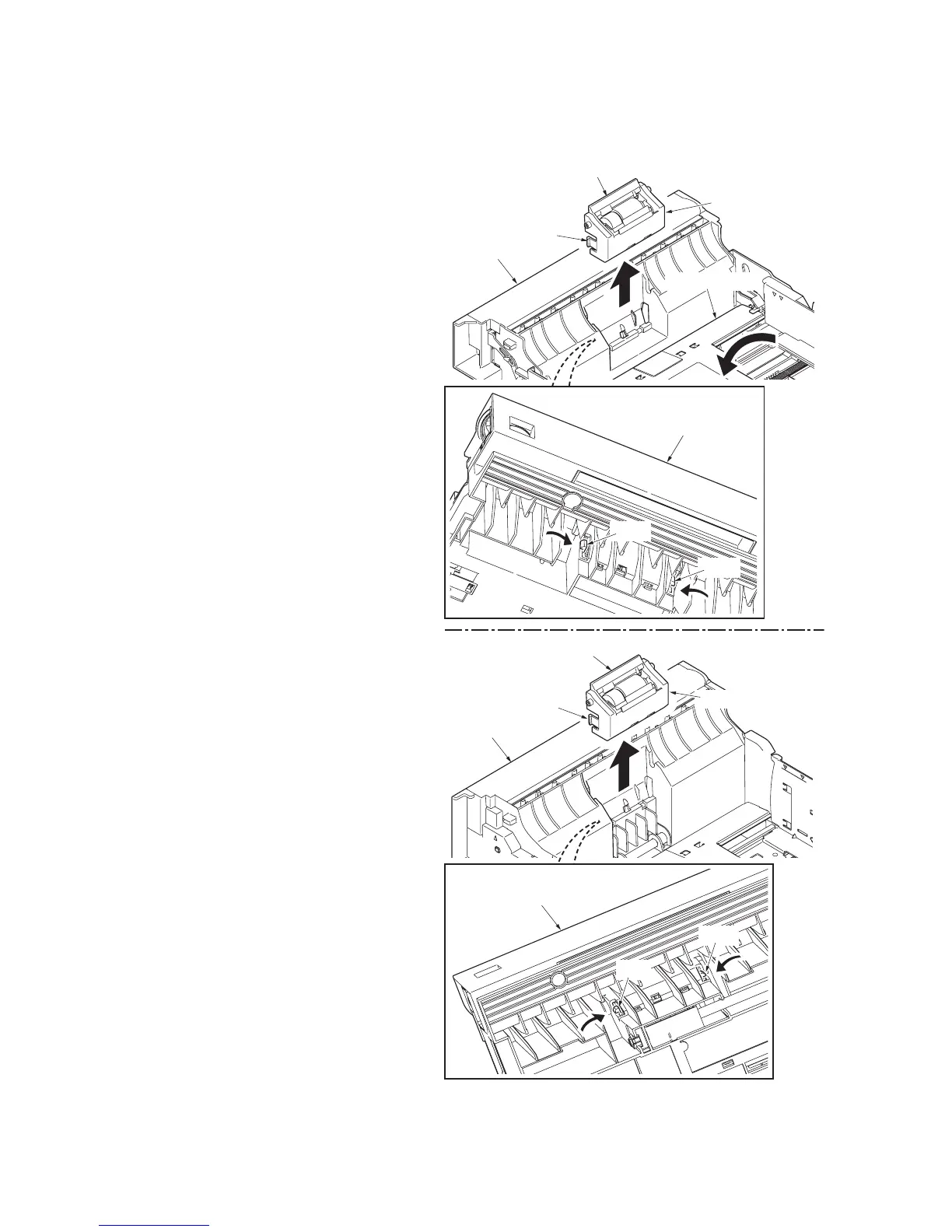

Figure 1-5-11
Retard guide
Retard guide
Cassette
Cassette
Cassette
Cassette
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Bottom plate
26/28 ppm (500-sheet) model
21/23 ppm (500-sheet) model
21/23 ppm (250-sheet) model
Hook
