2HL/2HM/2HN
1-5-9

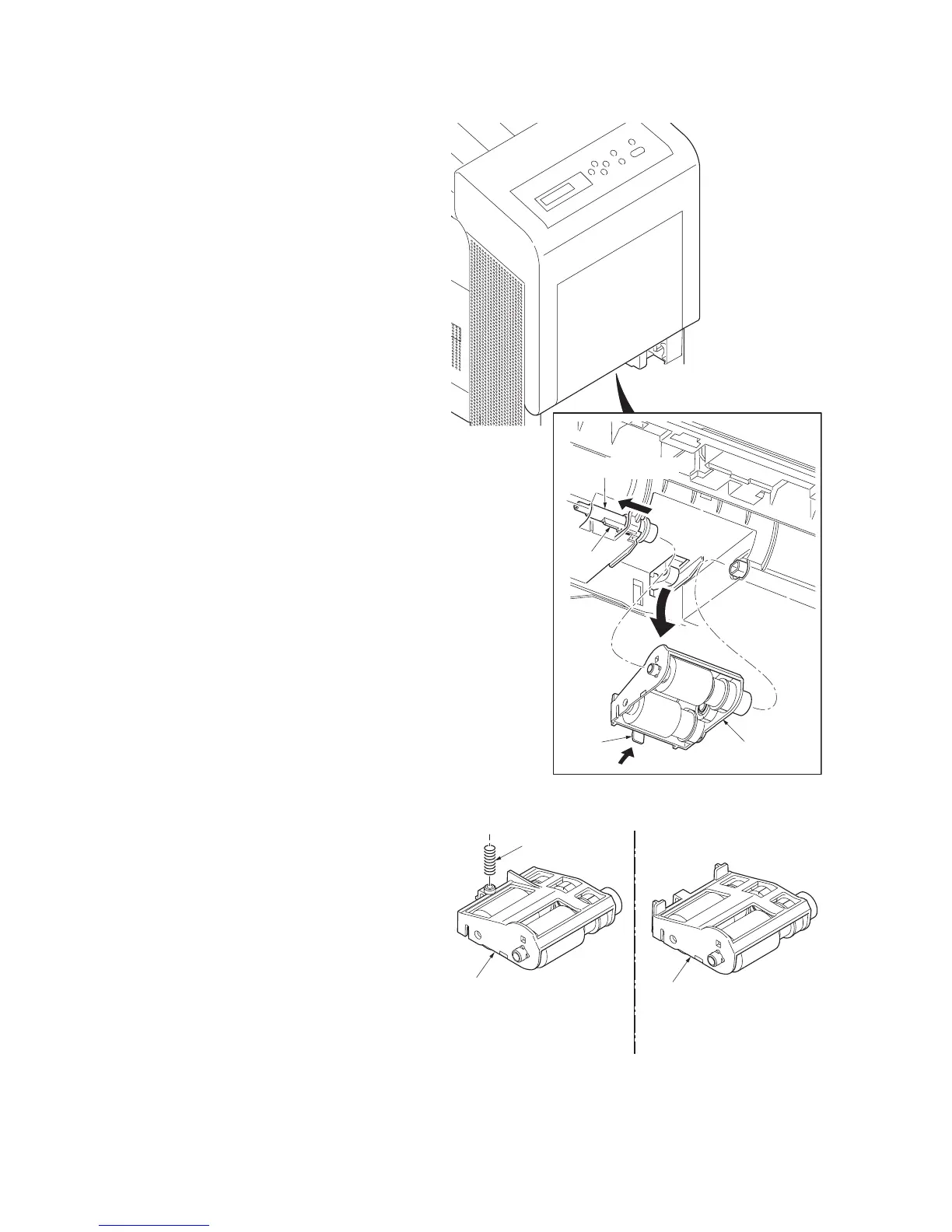

2. While pressing lever A and then slide the
feed roller pin.
3. While pressing the lever B and then remove
the paper feed roller assembly.
Figure 1-5-9
4. Check or replace the paper feed roller
assembly and refit all the removed parts.
Figure 1-5-10
Paper feed roller
assembly
Lever B
Lever A
Feed roller pin
Paper feed roller assembly Paper feed roller assembly
Spring
26/28 ppm (500-sheet) model
21/23 ppm (500-sheet) model
21/23 ppm (250-sheet) model
To Next Page
