ESI-500
Pilot’s Guide 3-5
Display Features
VNE
VNO
Caution Range
(Never Exceed Speed)
(Max Structural Cruising Speed)
Normal Operating
Airspeed Range
Low Speed
Awareness Bar
(red in air, white on ground)
High Speed
Awareness Bar
VS0
(Stall Speed in Landing Configuration)
Vfe
VS1
(Maximum Flap Extended Speed)
(Stall Speed in Specified Configuration)
Vyse
(Optimum rate of climb with
critical engine inoperative)
Vmc
(Minimum control speed with
critical engine inoperative)
Safe Flap Operating
Range (white)

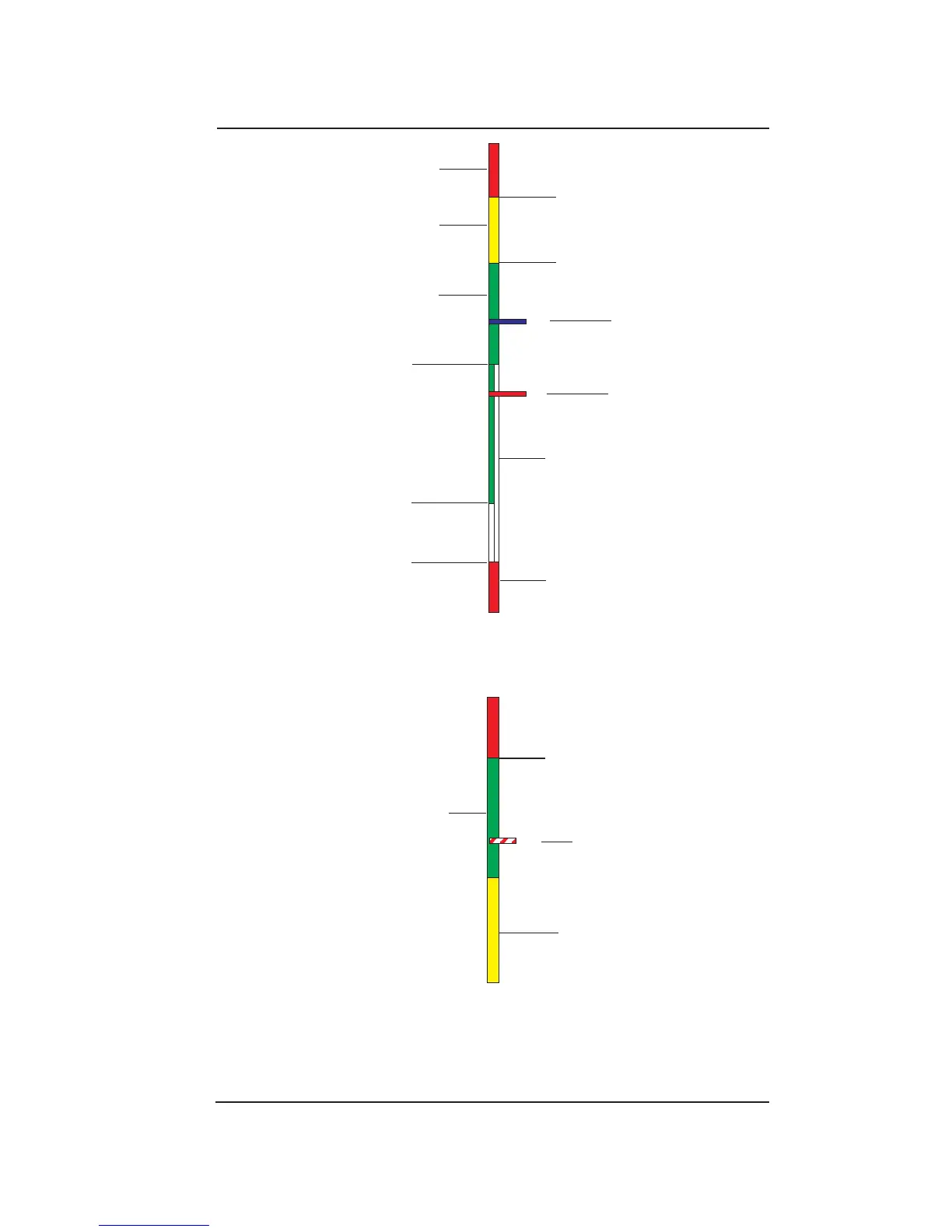

Figure 3-3: V
NE
Awareness Color Bar Cues
VPower ONNE
(Never Exceed Speed with rotor power on)
VCAUTION
(Start of the Caution range for airspeed warning)
VPower OFFNE
(Never Exceed Speed with rotor po
wer off)
Nor
mal Operating
Airspeed Range
Figure 3-4: V
NE
Power On Awareness Color Bar Cues
