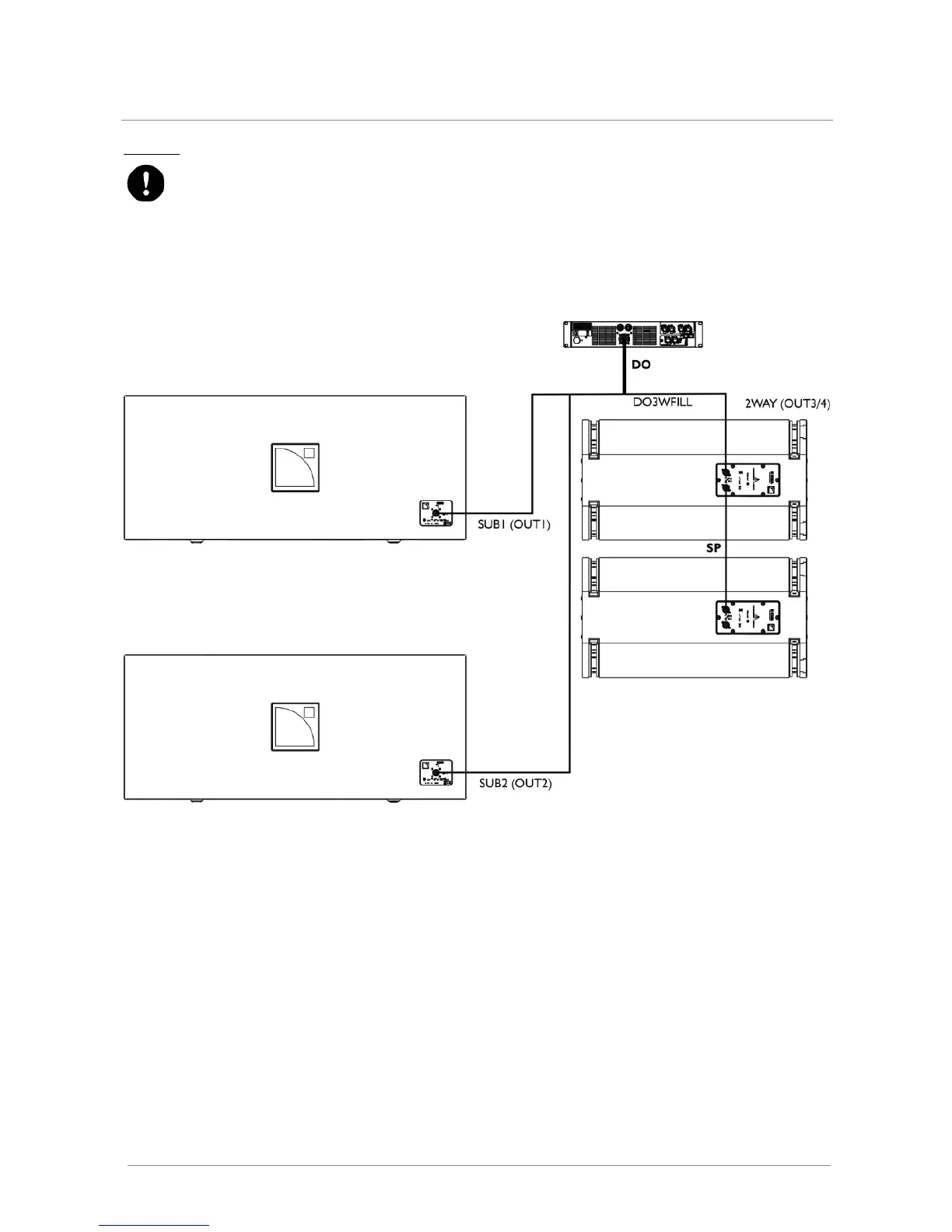

Option C
This cabling scheme requires a custom preset.
 Connect a DO cable (DO.7, DO10 or DO25) to the LA8 PA-COM
®
connector.
 Use a DO3WFILL to split the signal into one channel pair (2WAY) and two single channels (SUB1 and SUB2).
 Connect the 2WAY connector to the IN connector of the active enclosure.
 Connect the SUB1 and SUB2 connectors to the IN connector of the subwoofers.
 Use SP cables to connect additional ARCS II in parallel with the first ones.
