3 LOUDSPEAKER CONFIGURATIONS
3.1 Line source
Deployed as a standalone line source, an ARCS
®
II system operates over the nominal bandwidth of the ARCS
®
II enclosure.
The [ARCS II] preset allows for a reference frequency response in medium throw applications.
The ARCS II enclosure can be driven by the LA4X or LA8 amplified controller.

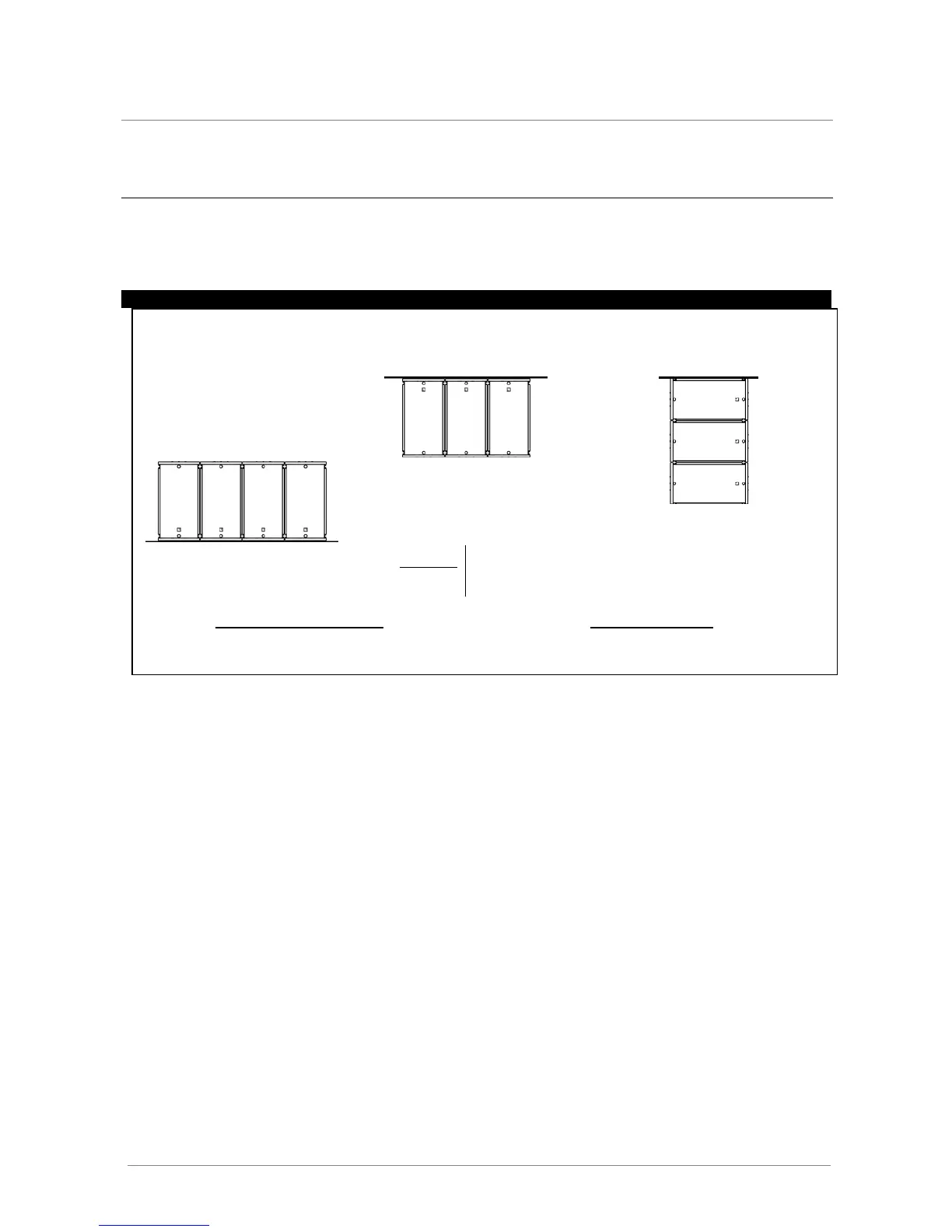

Standalone ARCS
®
II line source
Horizontal array
(40°up/ 20°down)
Flown horizontal array
(40°down/20°up)
Flown vertical array
(40°right/20°left)
Enclosure
[PRESET]
ARCS
®
II
 [ARCS II]
Frequency range (-10 dB)
Directivity pattern
50 Hz – 20 kHz
Asymmetrical 40°/20°
40° toward connector side
