L-Acoustics K1 User Manual

Corrective maintenance
K1-SB
Introduction
This section contains the following maintenance procedures:
• D/R - Grill (p.123)
• D/R - LF speaker (p.124)
For advanced maintenance, contact your L-Acoustics representative.

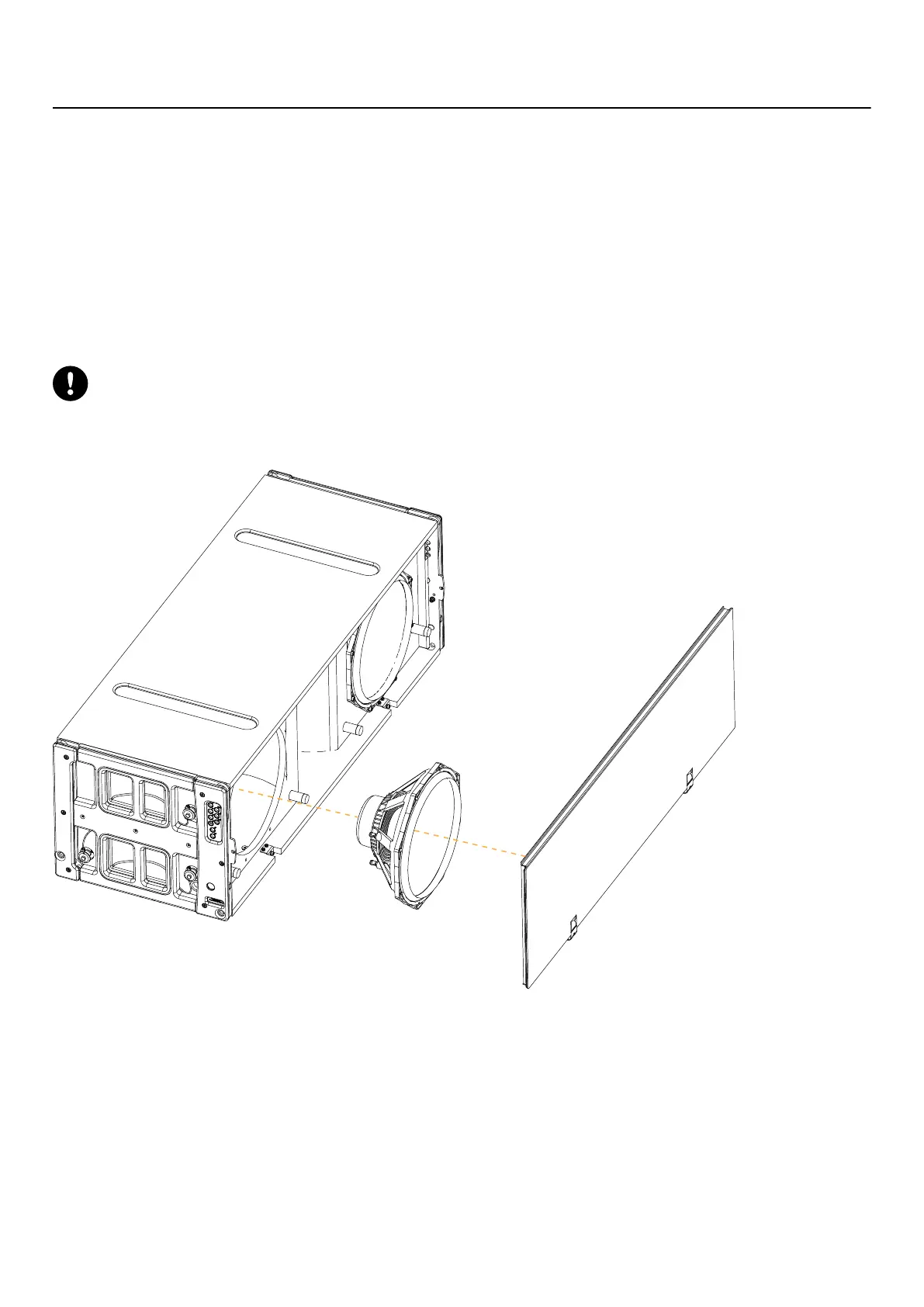

Exploded views
In order to operate, follow the order outlined here. Each assembly refers to the corresponding Disassembly/Reassembly
(D/R) procedure and the necessary repair kit.
Using the KR HSPH154 reconing kit
Follow the instructions to remove the LF speaker from the enclosure.
Perform the reconing procedure according to the information provided by the manufacturer.
Use the screws and fasteners provided in KR HSPH154 for reassembly.
Grill
LF speaker
KR HPPH154
K1 owner's manual (EN) version 1.0 121

L-Acoustics K1 Specifications

General

Frequency Response	35 Hz - 20 kHz
Nominal Impedance	8 ohms
Enclosure Material	Baltic birch plywood
Components	2 x 15" LF, 4 x 6.5" MF, 3 x 3" HF
Amplification	External
Connectors	2 x NL4
