L-Acoustics K1 User Manual

Connection to LA amplied controllers
Connection to LA amplied controllers
Refer to the Amplication reference technical bulletin for the latest information on compatibility with amplied
controllers and cabling schemes for all enclosure types.
Enclosure drive capacity per amplied controller
Make sure the total number of connected enclosures does not exceed the maximum number of enclosures per controller
(refer to the footnotes).
LA12X
per output
*
/ total
K1 2 / 2
K1-SB 1 / 4
K2 3 / 3
Kara II 3 / 6

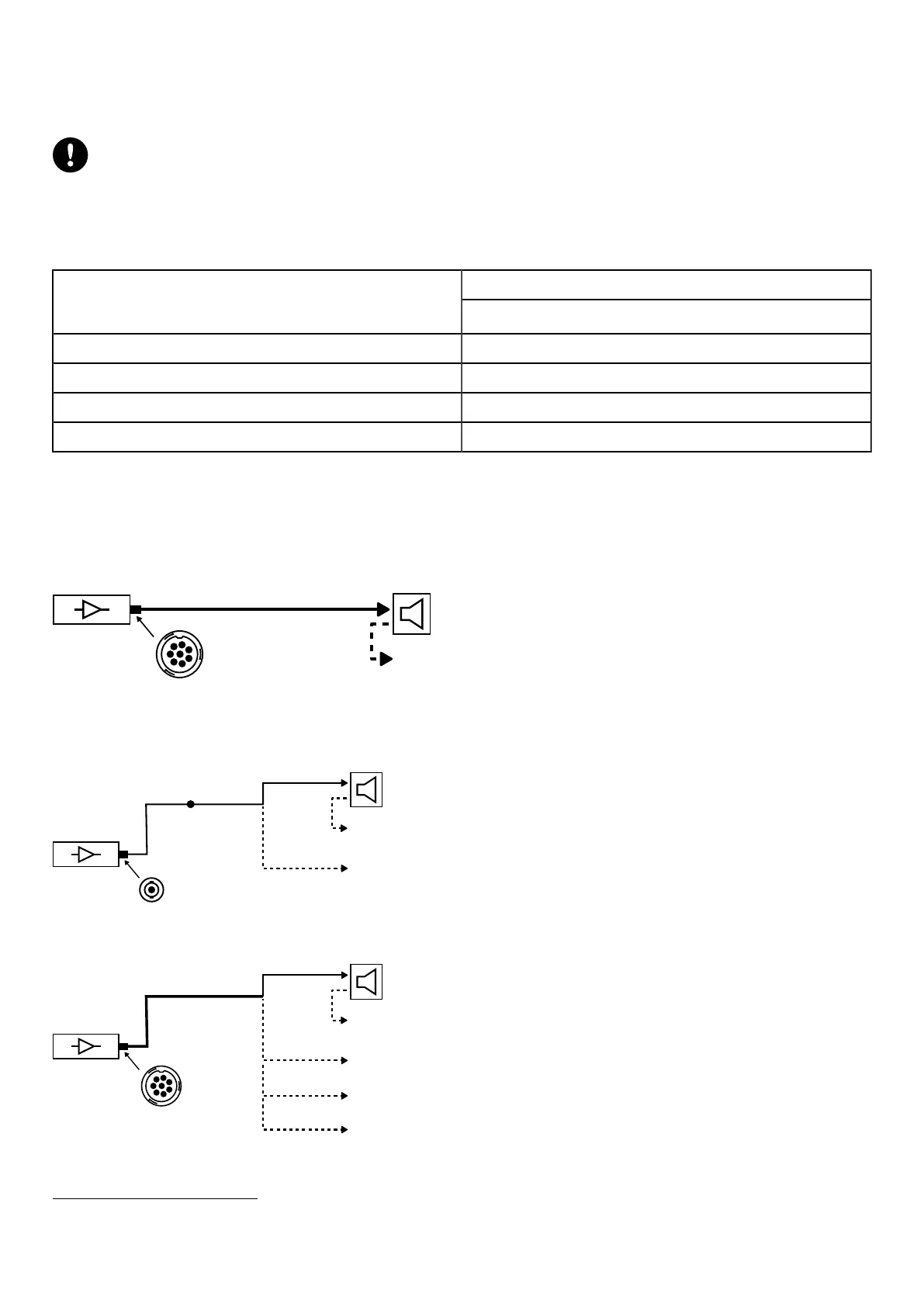

Cabling scheme for K1 or K2
Refer to the cabling schemes to connect the enclosures to different types of output congurations.
Four-channel CA-COM output
DO
DO
Cabling schemes for K1-SB
Two-channel speakON output
SP
SP
SP-Y1
CC4FP
CH(1)
CH(2)
1+/1-
2+/2-
Four-channel CA-COM output
DO
SP
DOSUB-LA8
SPK1
SPK2
SPK3
SPK4
*
For passive loudspeakers, the value corresponds to the number of enclosures in parallel on the output. For active
loudspeakers, the value corresponds to the number of sections in parallel on the output.
K1 owner's manual (EN) version 1.0 105

L-Acoustics K1 Specifications

General

Frequency Response	35 Hz - 20 kHz
Nominal Impedance	8 ohms
Enclosure Material	Baltic birch plywood
Components	2 x 15" LF, 4 x 6.5" MF, 3 x 3" HF
Amplification	External
Connectors	2 x NL4
