Rigging system description
Rigging system description
K1/K1-SB
On both sides, K1/K1-SB integrates two arms to connect another element of the rigging system, such as an enclosure or
to a ying frame:
• At the front, a sliding arm enables the inter-element angle setting and the inter-element front connection.
Nine angle positions are available: 0°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4°, 5°.
• At the rear, a rotating arm enables the inter-element rear connection.

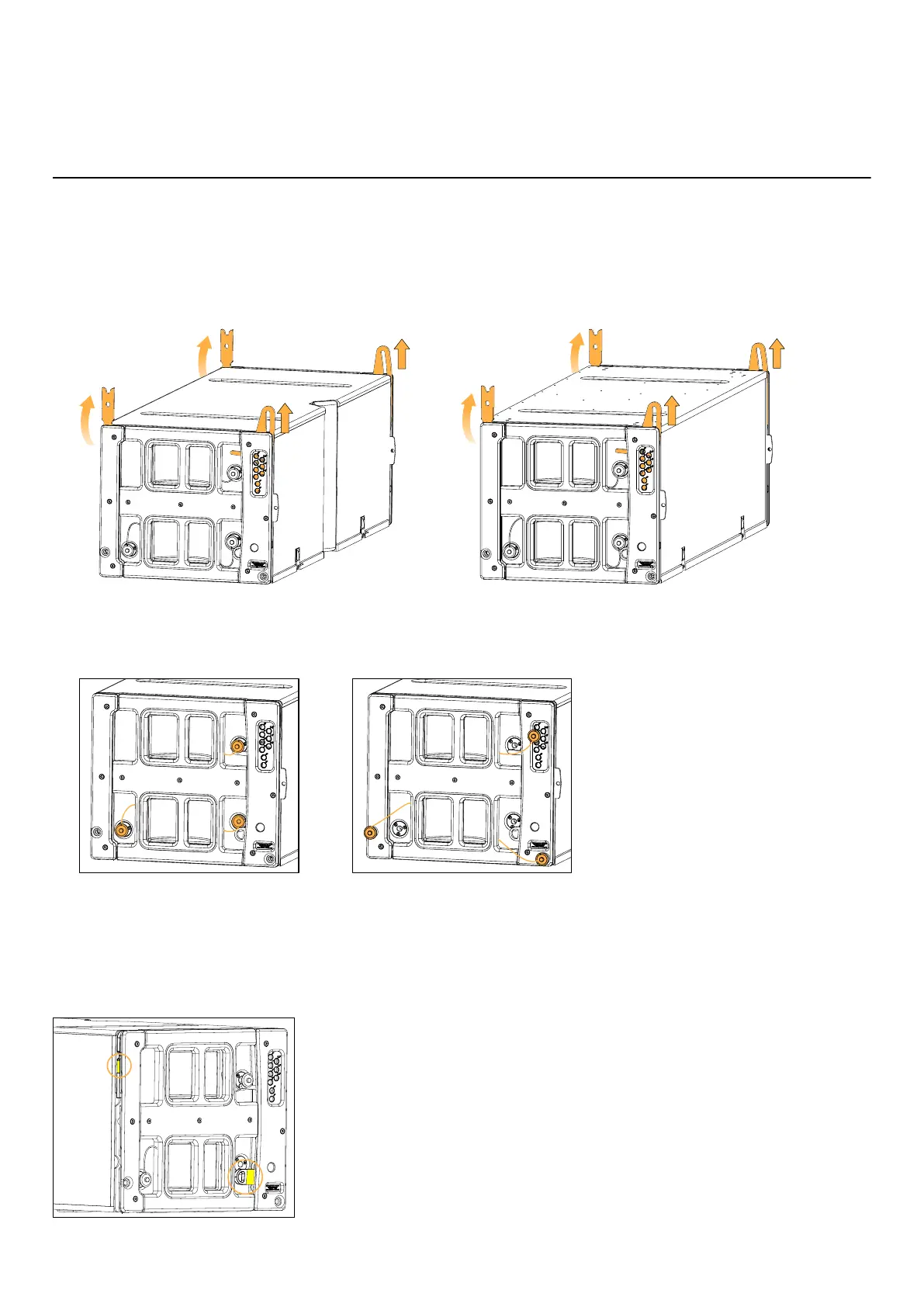

K1 K1-SB
The rigging arms are secured with three ball-locking pins on each side of the enclosure:
Ball-locking pins in storage position Ball-locking pins in rigging position
Adjacent enclosures or rigging accessories are secured by an automatic system with buttons and latches. The system is
activated in advance and locks itself during the stacking and lifting procedures.
The rigging elements and latches are tted with yellow safety labels that are visible when they are not safely locked.
18 K1 owner's manual (EN) version 1.0
