L-Acoustics K1 User Manual

Rigging procedures
Flying K1
Flying a K1/K1-SB array with K1-BUMP
Min number of operators 3
4 Ø 22 mm shackles WLL 3.25 t (provided)Rigging accessories
K1-BUMP
All along the procedure:
Systematically ensure that each ball-locking pin is fully inserted by pulling on it.
For clarity purposes, the loudspeaker cable procedure is not described.
The loudspeaker cables are not represented in the gures.
Follow the same procedure to y K1-SB enclosures.
Prerequisite
• Prepare K1-BUMP. Refer to Preparing K1-BUMP (p.63).
• If necessary, secure LA-RAK II AVB on K1-BUMP. Refer to Securing LA-RAK II AVB on K1-BUMP (p.68).
• Prepare a block of four K1. Refer to Preparing a block of four K1/K1-SB (p.72).
• Preset the inter-enclosure angles. Refer to Presetting the inter-enclosure angles of K1/K1-SB (p.75).
Procedure
1. Lift K1-BUMP to more than 2 m / 6.5 ft height using the motor.
2. Position a block of four K1/K1-SB under K1-BUMP.

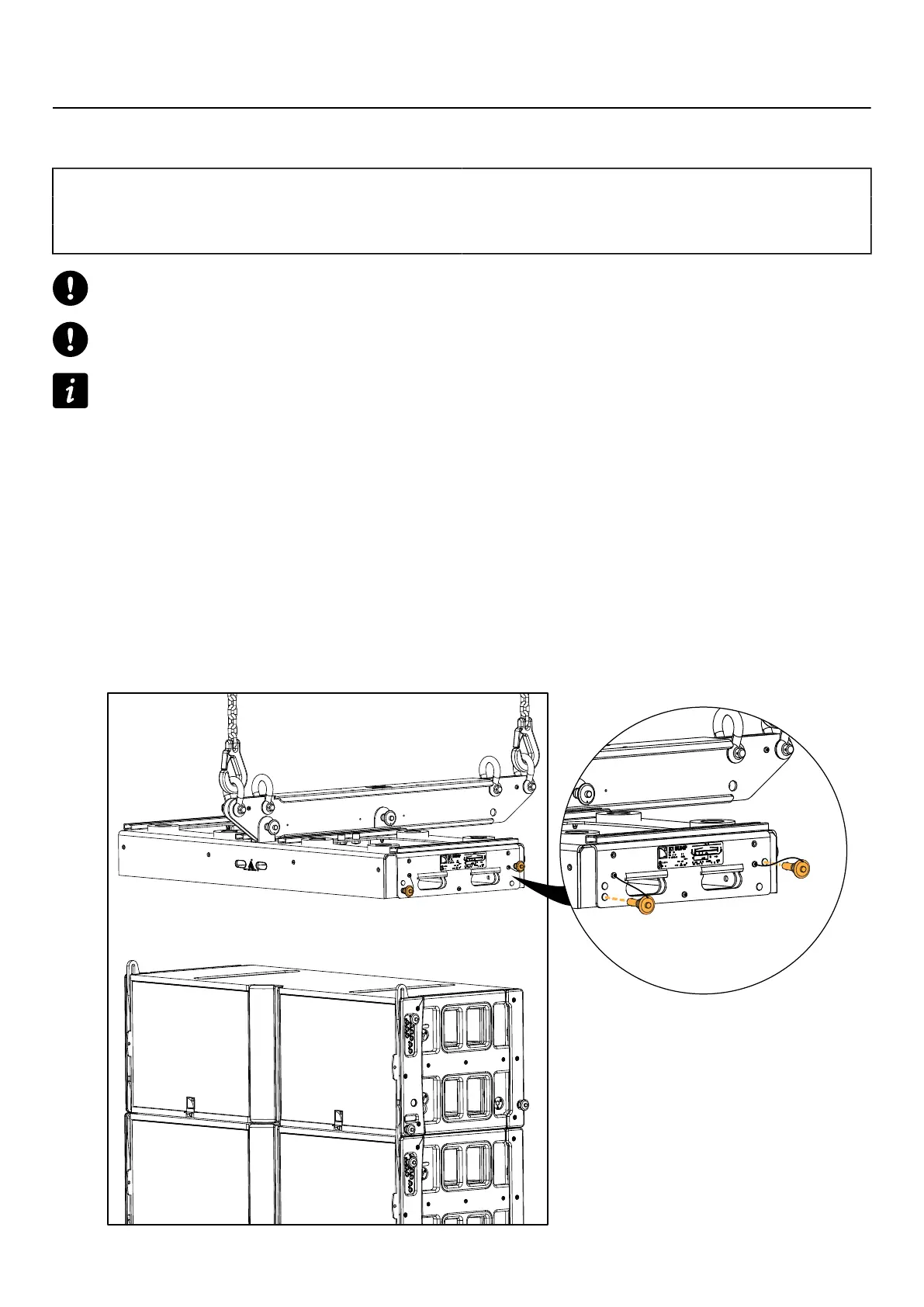

3. Secure K1-BUMP on top of the array:
a) On each side of the K1-BUMP rigging frame, remove the four ball-locking pins.
K1 owner's manual (EN) version 1.0 77

L-Acoustics K1 Specifications

General

Frequency Response	35 Hz - 20 kHz
Nominal Impedance	8 ohms
Enclosure Material	Baltic birch plywood
Components	2 x 15" LF, 4 x 6.5" MF, 3 x 3" HF
Amplification	External
Connectors	2 x NL4
