Corrective maintenance

D/R - Connector plate

Tools

• torque screwdriver

• T25 Torx bit

• at plastic tool

Repair kit

G03646 - KR compression driver 3" L2(D)

G03650 - KR diaphragm 3'' L2(D)

×8

S100033

M5×25 Torx

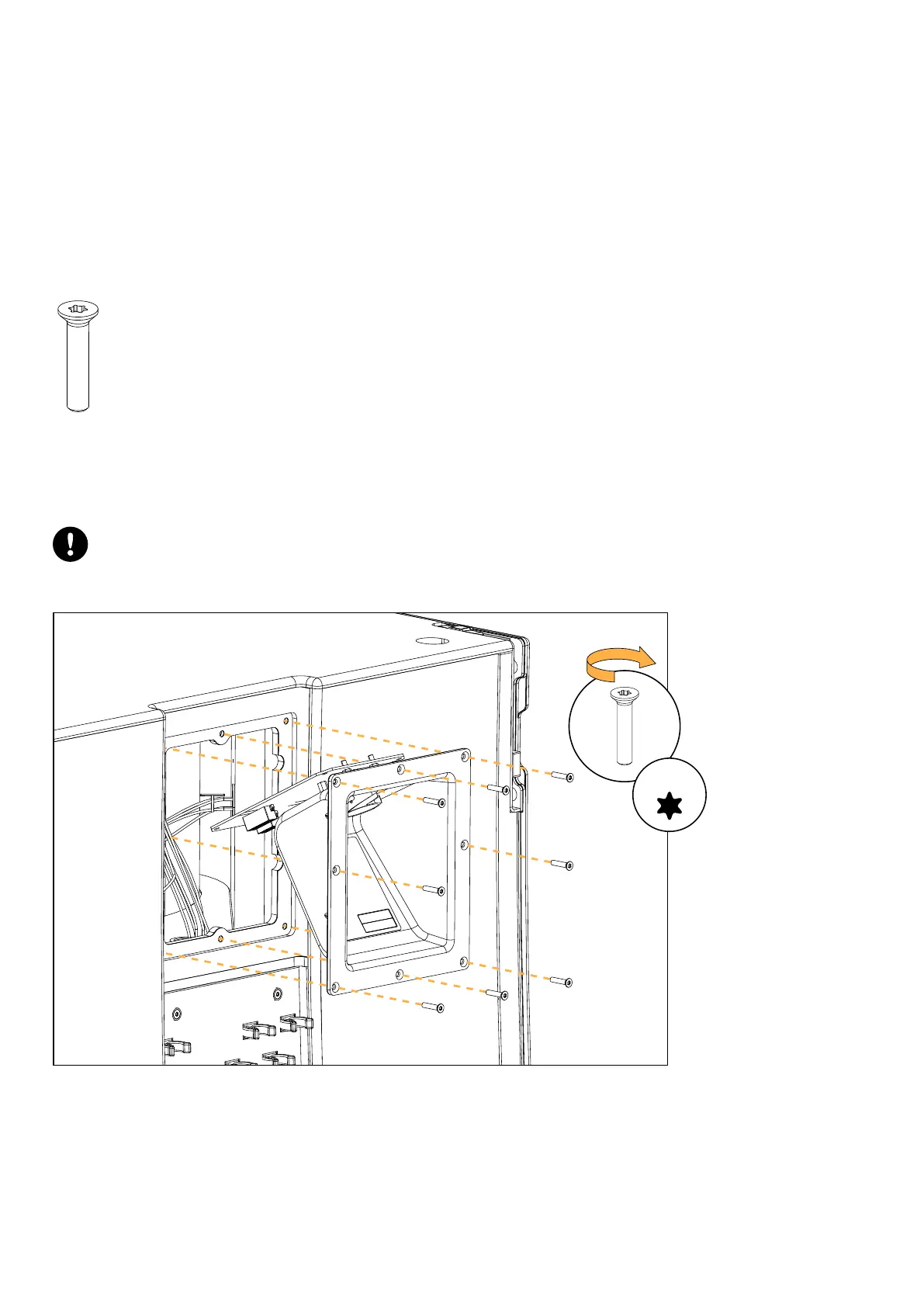

Exploded view

For safety reasons, always use the new screws and spare parts provided in the KR.

If no new screws are available, use blue threadlocker.

Use a at plastic tool as a lever to remove the connector plate.

3 N.m

T25

L2 owner's manual (EN) version 2.0 101
