Corrective maintenance
D/R - LC speaker
Tools
• torque screwdriver
• T30 Torx bit
Repair kit
G03645
KR loudspeaker 12'' L2(D)
×1 ×8 ×4
18177 S100143 1250
12" LF speaker M6×25 Torx 12" speaker gasket
Prerequisite
Grill removed. See D/R - Grill (p.94).
Side panel removed. See D/R - Side panel (p.99).

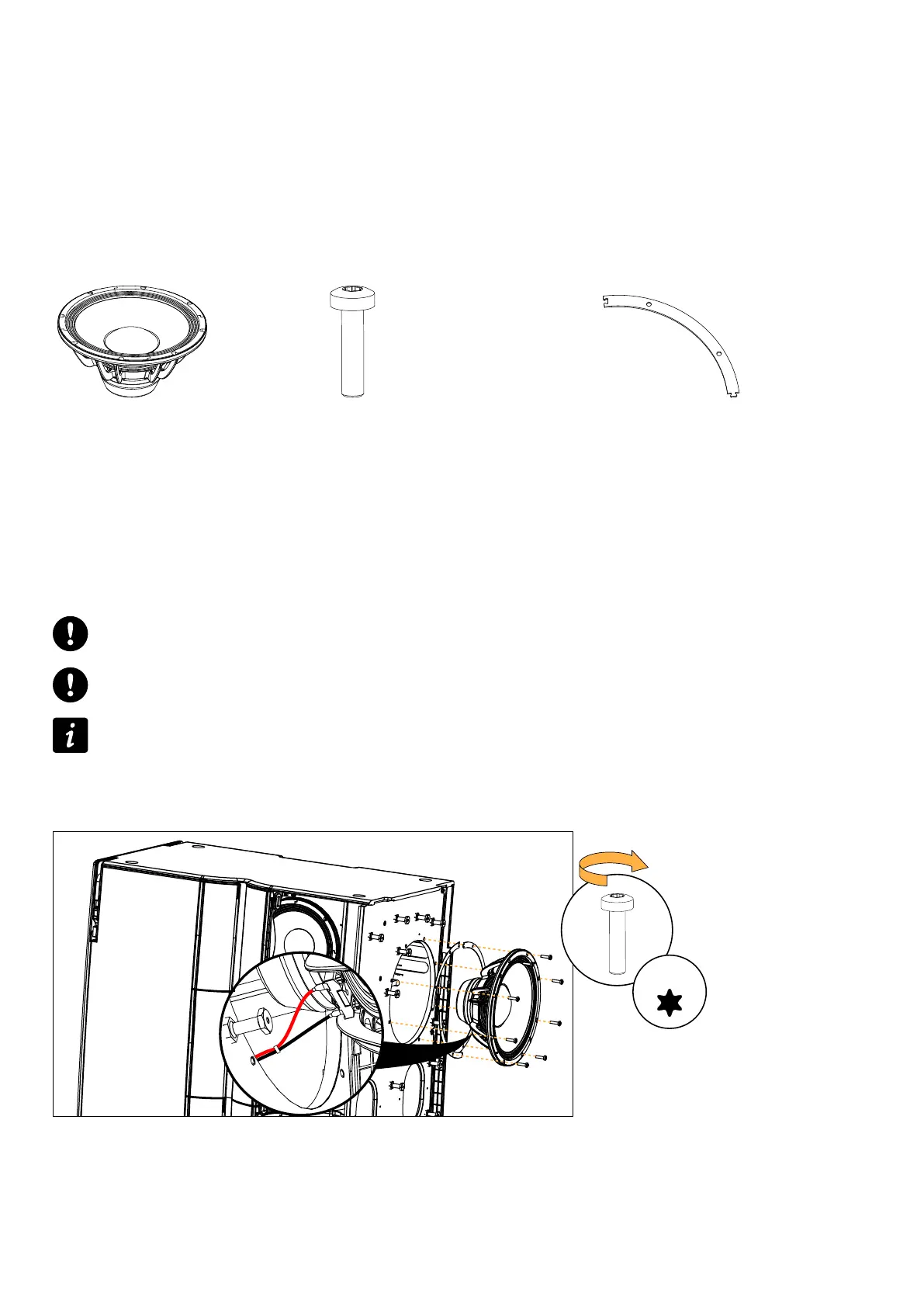

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Gradually tighten the screws following a star pattern.
If the speaker gasket is damaged, remove and replace it.
Carefully disconnect the cables before removing the speaker.
Position the speaker with the connectors towards the bottom of the enclosure.
x8
5 N.m
T30
100 L2 owner's manual (EN) version 2.0
