Corrective maintenance
D/R - Side panel
Tools
• torque screwdriver
• T25 Torx bit
Repair kit
G03645
KR loudspeaker 12'' L2(D)
×24
S100302
M5×20 Torx
Prerequisite
Grill removed. See D/R - Grill (p.94).

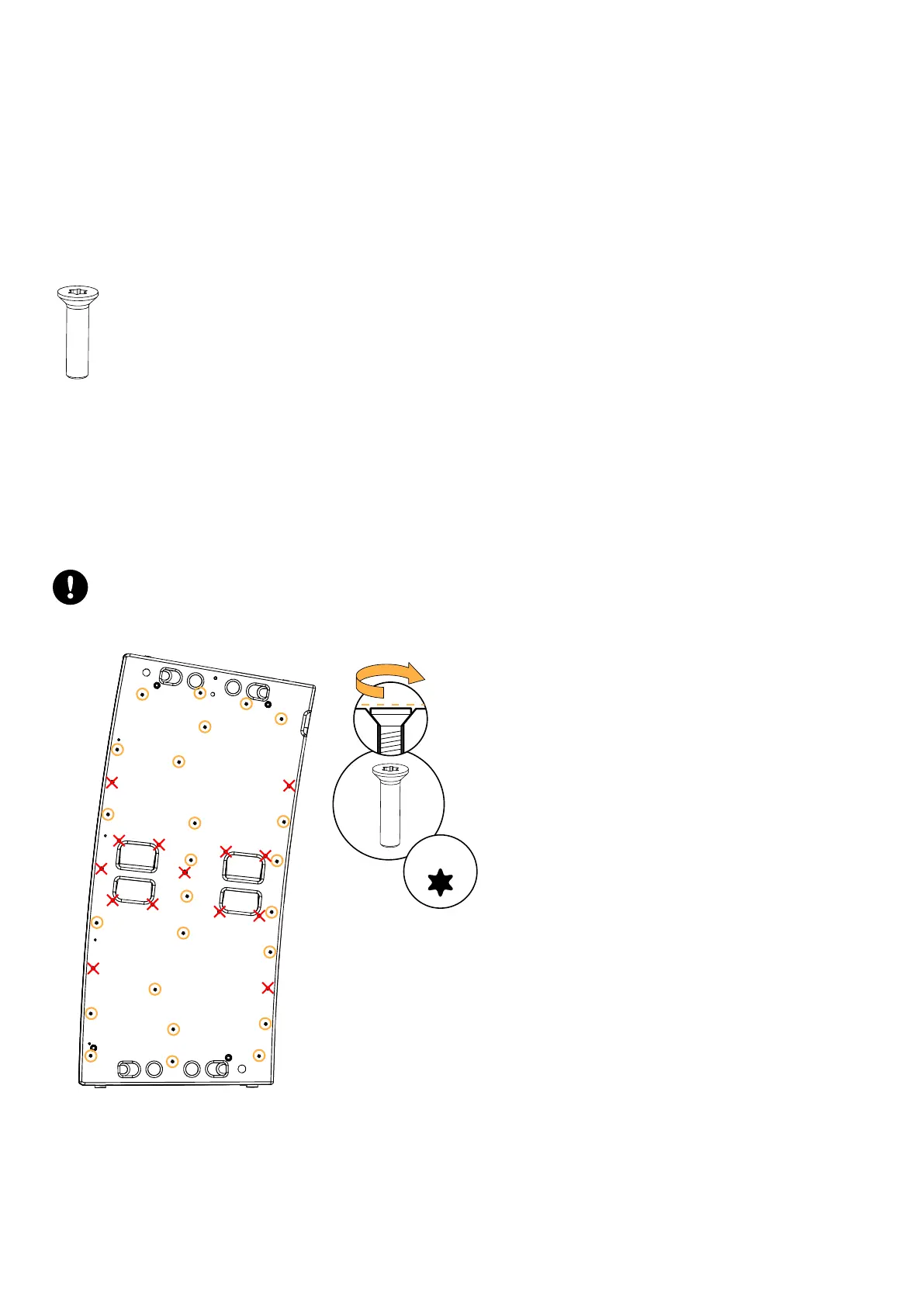

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
The side panel is held by 24 screws (circled in the illustration). Do not remove the screws that are crossed out.
x24
T25
right-hand side panel (panels are symmetrical)
L2 owner's manual (EN) version 2.0 99
