Corrective maintenance

D/R - Fixed n

Tools

• torque screwdriver

• T25 Torx bit

Repair kit

G03647

KR loudspeaker 10'' L2(D)

×2 ×2

S100108 S158

M5×45 hex plain washer Ø5mm

Prerequisite

Grill removed. See D/R - Grill (p.110).

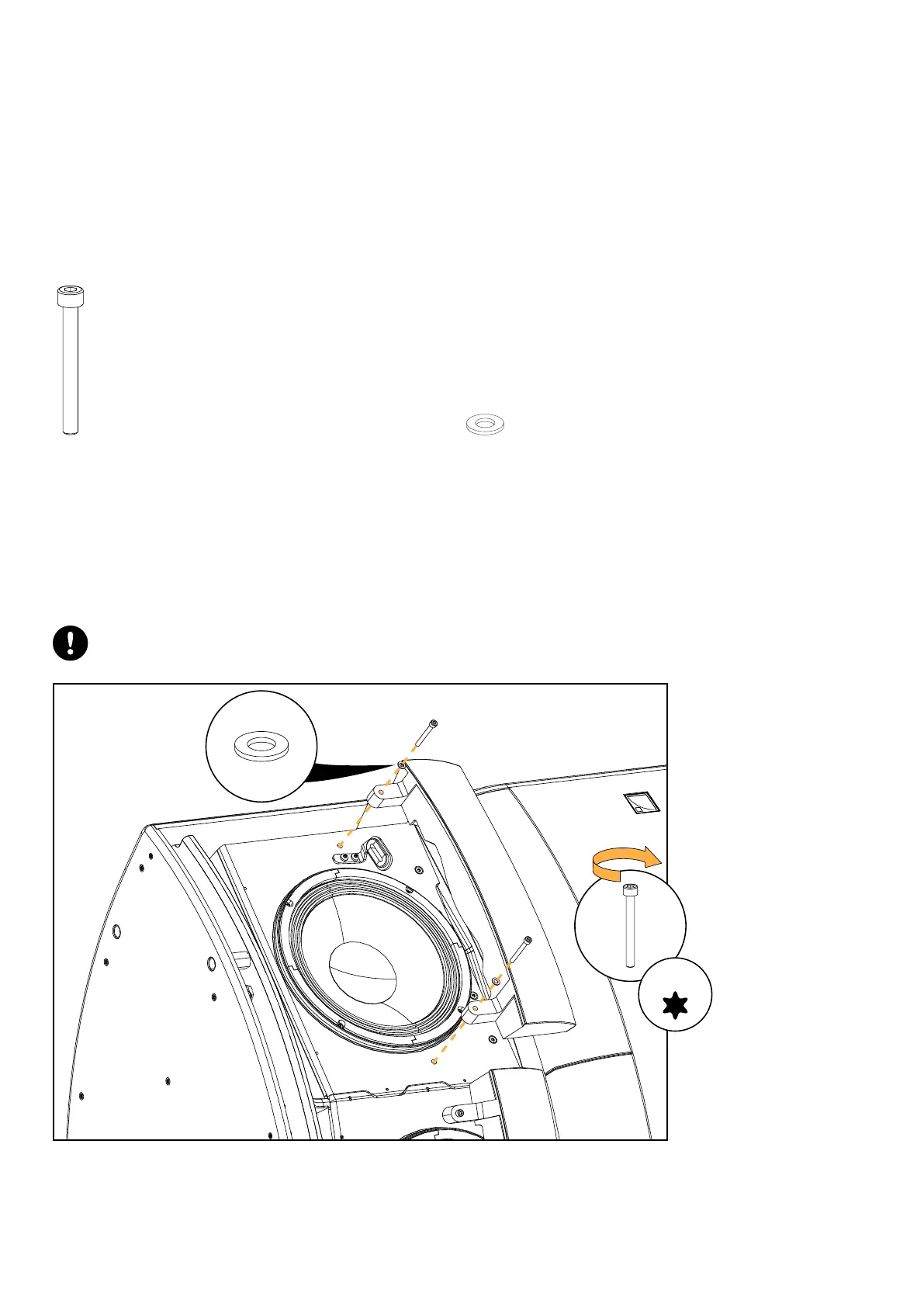

Exploded view

For safety reasons, always use the new screws and spare parts provided in the KR.

If no new screws are available, use blue threadlocker.

3 N.m

T25

114 L2 owner's manual (EN) version 2.0

Table of Contents3
Safety6
Instructions6
Introduction8
L2/L2D 16-Channel Active Progressive Curvature WST Enclosures8
How to Use this Manual9
Revision History9
System Components10
System Component Illustrations11
Electro-Acoustical Description14
Polar Pattern14
Adjustable Ns15
Directivity19
Preset Description22
Connectors23
Rigging System Description24
L2/L2D24
Rigging Elements28
L2-Bump28
L2-Bar30
L2-Rigbar31
Delta 1.5T33
La-Rakmount34
K2-Jack35
L2-Lasermount36
Storage and Handling37
L2-Roll37
L2-Chariot38
L2D-Chariot39
L2-Chariotcov40
L2D-Chariotcov41
L2-Chariotlid42
L2D-Chariotlid43
L2-Bumpflight44
Mechanical Safety45
Loudspeaker ConGurations47
Line Source47
Line Source with Low-Frequency Element48
Rigging Procedures51
Securing L2/L2D on L2-CHARIOT/L2D-CHARIOT51
Flying57
Securing LA-RAK III on L2-BUMP with LA-RAKMOUNT57
Flying an L2/L2D Array with L2-BUMP and L2-BAR60
Flying an L2/L2D Array with L2-RIGBAR70
Adding a Pullback with L2-RIGBAR72
Stacking74
Attaching K2-JACK Stabilizers to L2-CHARIOT/L2D-CHARIOT74
Adjusting L2-CHARIOT Site Angle with K2-JACK77
Adjusting L2D-CHARIOT Site Angle with K2-JACK79
Transporting81
Mounting L2-CHARIOTLID/L2D-CHARIOTLID on L2/L2D81
Stacking Multiple L2-CHARIOT/L2D-CHARIOT84
Stacking Multiple L2-CHARIOTLID/L2D-CHARIOTLID85
Connection to la AmpliEd Controllers86
Corrective Maintenance87
Preparing Enclosures for Maintenance88
L2D106
SpeciCations124
L2D126
Ks28128
L2-Bump130
L2-Bar131
L2-Rigbar132
La-Rakmount133
Bpchain 1.5T134
K2-Jack135
L2-Lasermount136
Delta 1.5T137
L2-Chariot138
L2D-Chariot139
APPENDIX A: Recommendation for Speaker Cables142
APPENDIX B: Installing a Laser Inclinometer143
L2-Lasermount143
L2-Bump144
