Corrective maintenance
D/R - LF speaker
Tools
• torque screwdriver
• T25 Torx bit
Repair kit
G03647
KR loudspeaker 10'' L2(D)
×1 ×4 ×6
17995 102325 S100228
10" LF speaker -16 Ω 10" speaker gasket M5x25 Torx
Prerequisite
Grill removed. See D/R - Grill (p.110).
Fin (two bottom sections) or xed n (two top sections)
removed.
See D/R - Fin (p.113) or D/R - Fixed n (p.114).

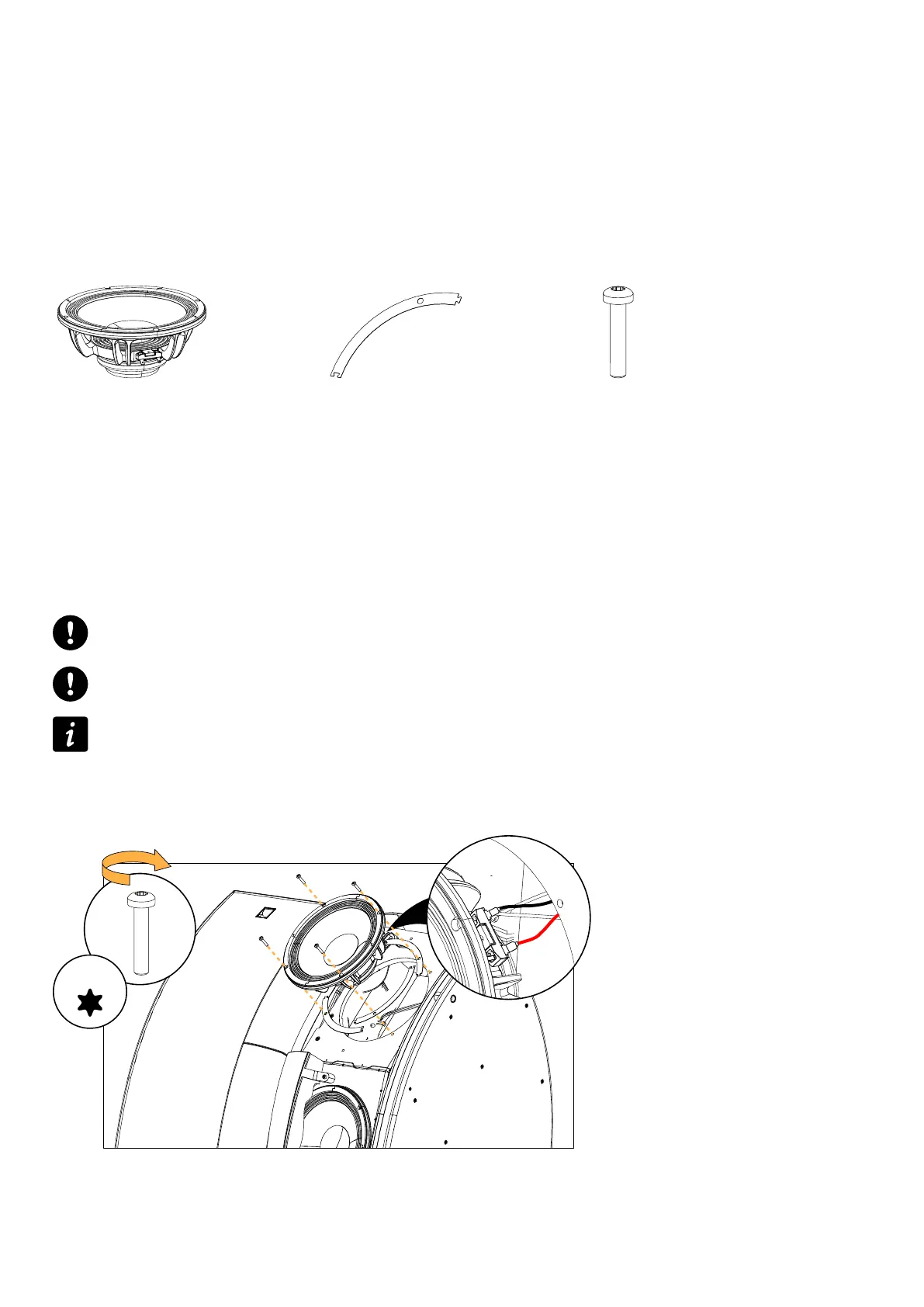

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.
Gradually tighten the screws following a star pattern.
If the speaker gasket is damaged, remove and replace it.
Carefully disconnect the cables before removing the speaker.
Position the speaker with the connectors towards the side of the enclosure.
x4
3 N.m
T25
L2 owner's manual (EN) version 2.0 115
